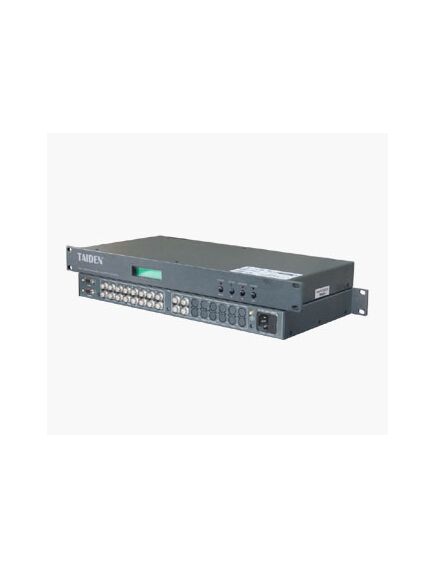

TMX-1604V 16×4 Composite Video Matrix Switcher, 50 M, BNC Connectors with Remote Control
Please sign in so that we can notify you about a reply
TAIDEN TMX series professional matrix switchers include Ultra Wideband RGBHV Matrix Switchers, Ultra Wideband VGA Matrix Switchers, Composite Video & Audio Matrix Switchers, Distribution Amplifiers, S-video and Component Video Matrix Switchers、Converters, DVI and HDMI series products. Seamless integration of TAIDEN Central Control System and Conference System to provide professional solutions for modern meeting rooms.
Features- Video interface: BNC female
- Fully loaded video bandwidth:50 MHz
- Supporting NTSC 3.58, NTSC 4.43, PAL, SECAM and other NTSC
- RS232 control interface, supporting RS232 protocol
- Power-off protection for scene status
- LCD to display real-time operation
- Front panel button control , easy to switch manually
- Scene save and recall function
- 1U high, full rack width
Brand:
Taiden
Specifications
Product Type:
Composite Video Matrix Switcher
Control Port Type:
RS-232 (9-Pin Female D Connector)
Special Features:
Power-Off Protection, Scene Save and Recall Function
Maximum Operating Temperature:
+50°C
Colour:
Grey
Applications:
Modern Meeting Rooms
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Performance
Video Bandwidth:
50MHz
Baud Rate:
9600bps
Maximum Output:
2Vp-p
Crosstalk Level:
-53dB@5MHz
Inputs and Ports
Input Port Type:
16xBNC Female
Output Port Type:
4xBNC Female
Number of Ports:
16x4
Power
Voltage Rating:
100 TO 240V AC
Dimensions
Length:
48.3cm
Width:
20.8cm
Height:
4.3cm
Weight:
2.7kg
