VS-44H2A 4x4 4K HDR HDCP 2.2 Matrix Switcher with Audio De-embedding
Please sign in so that we can notify you about a reply
VS-44H2A is a high-performance 4x4 matrix switcher for 18G 4K@60Hz (4:4:4) HDR HDMI signals. It reclocks and equalizes the signals and can route any one of four HDMI, HDCP-Compliant sources (selectable) to any or all outputs simultaneously.
Features
- High–Performance AV Matrix — Switches 4 4K@60Hz (4:4:4) HDR HDMI HDCP–compliant signals to 4 18G 4K@60Hz (4:4:4) HDR HDMI HDCP–compliant outputs at up to 18G data rate. Signals are HDCP 2.2/1.4 compliant, supporting HDR10, xvYCC color, Dolby TureHD/DTS–HD Master Audio, 3D Video as specified in HDMI 2.0.
- Analog and Digital Audio De–embedding (Extraction) — De–embeds the audio signal and outputs it as balanced analog audio with separate volume control on each of the outputs and S/PDIF digital audio.
- Easy Step–In Collaboration Function — When used with a Kramer Step–In enabled switcher, just plug in your device and press the Step–In button. Your device becomes the active signal on the main display.
- Features Kramer Equalization & reKlocking™ Technology — Rebuilds the digital signal to travel longer distances.
- EDID Management — Individual EDID management per input. Captures and stores the EDID from a display device.
- Flexible Content Protection — Selectable HDCP per input.
- Quick Access to Common Configurations — Save up to four preset configurations and recall them using front panel buttons.
- Convenient Unit Control and Configuration Options — Local control via front panel switching, memory, lock and EDID buttons, Input/Output LED display. Distance control via user–friendly embedded web pages via the Ethernet, Protocol 3000 API, and RS–232 serial commands transmitted by a PC, touch screen system or other serial controller.
- Cost–Effective Maintenance — IR and Input Selection indicators facilitate easy local maintenance and troubleshooting. Firmware upgrade via Ethernet or USB using a user–friendly software upgrade tool.
- Easy Installation — 19” enclosure for rack mounting a unit in a 1U rack space with included rack ears and universal 100–240V AC power connection.
Brand:
Kramer
Part number:
20-80445030
Specifications
Product Type:
Matrix Switcher with Audio De-embedding
Control Port Type:
Front Panel:IN and OUT Selection Button, OFF, ALL, STO, RCL EDID, LOCK Button
Special Features:
High-Performance AV Matrix, Flexible Content Protection-Selectable HDCP per Input, Cost-Effective Maintenance, Easy Installation
Power Rating:
60VA
Maximum Operating Temperature:
+40°C
Colour:
Black
Applications:
Presentation and Multimedia
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Cord, Rack Ears
Performance
Resolution:
4K@60Hz (4:4:4)
Video Bandwidth:
18Gbps (6Gbps per Graphic Channel)
Inputs and Ports
Input Port Type:
4xHDMI
Output Port Type:

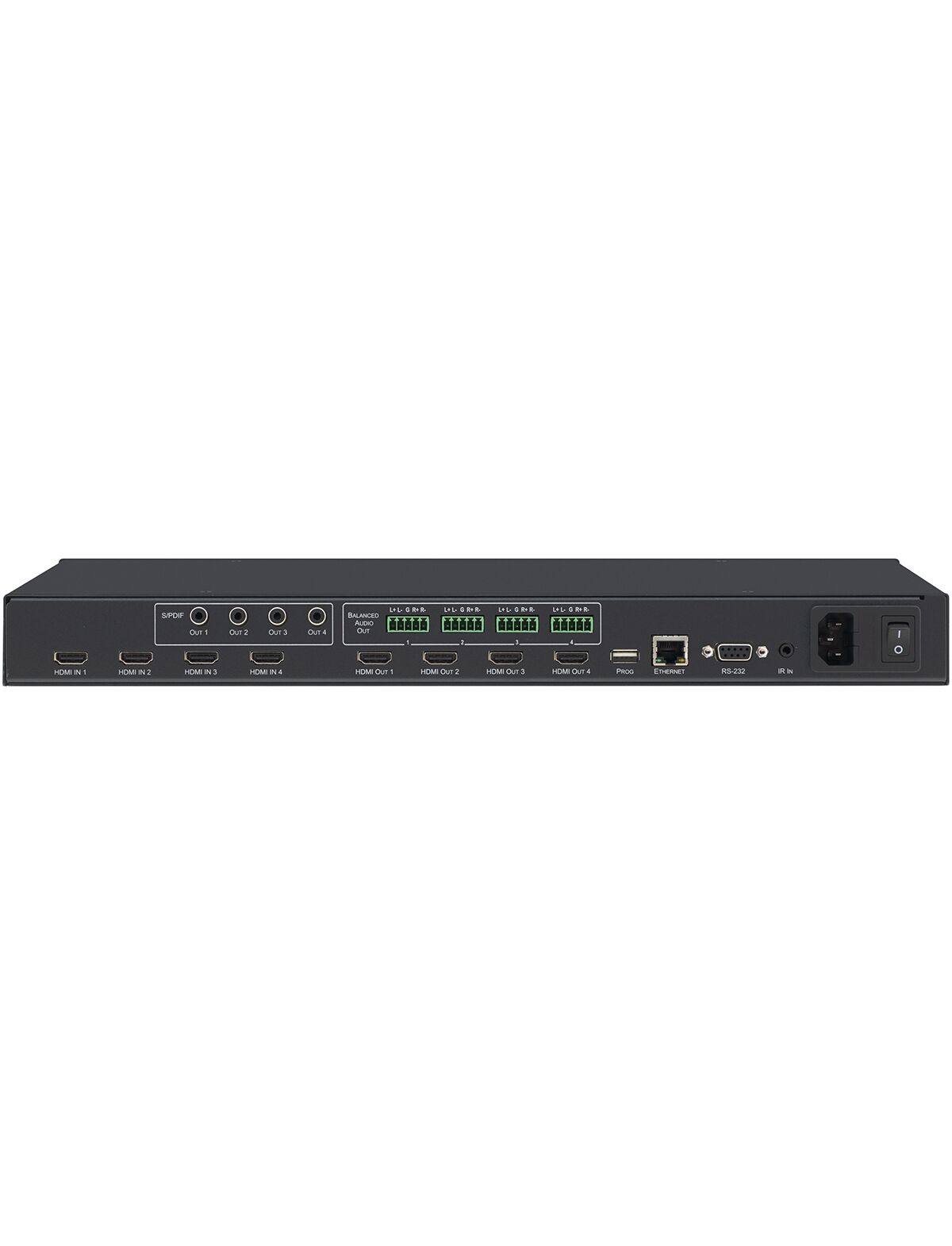

4xHDMI : On Female HDMI Connector, 4xS/PDIF : On Female RCA Connector, 4xBalanced Stereo Audio : On 5-Pin Terminal Block Connector
Number of Ports:
4x4
Power
Voltage Rating:
100 TO 240V AC
Standards
Standards Met:
CE, RoHS Compliant, WEEE
Dimensions
Length:
23.7cm
Width:
43.64cm
Height:
4.3cm
Weight:
2kg
