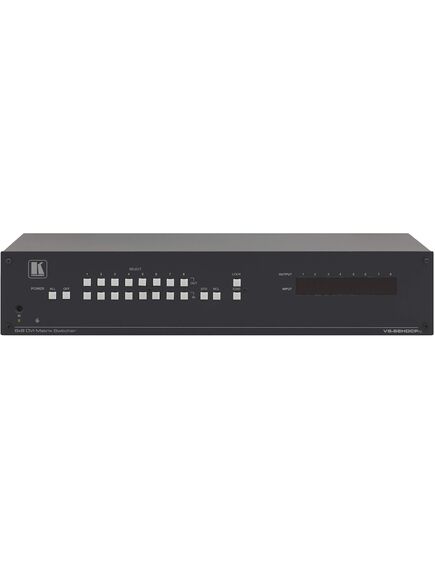

VS-88HDCPXL/220V 8x8 DVI Matrix Switcher, 220V
Please sign in so that we can notify you about a reply
The VS-88HDCPxl is a high-performance matrix switcher for DVI and HDMI signals on DVI-D connectors. It reclocks and equalizes the signal and can route any input to any or all outputs simultaneously.
Features
- Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
- HDCP Compatible.
- HDTV Compatible.
- HDMI Support — Deep Color, x.v.Color™, 3D Pass–Through, HDMI Compressed Audio Channels.
- EDID Capture — Copies and stores the EDID from a display device.
- Output Disconnect — Each output.
- Front Panel Control Lockout.
- Memory Locations — Stores multiple switches as presets to be recalled and executed when needed.
- Flexible Control Options — Front panel, IR remote, RS–232 (K–Router™ Windows®–based software is included), Ethernet (Windows®–based Ethernet Configuration Manager & Virtual Serial Port Manager is included).
- Worldwide Power Supply — 100–240V AC.
Brand:
Kramer
Part number:
20-08880220
Specifications
Product Type:
Matrix Switcher
Control Port Type:
Front Panel Button, RS-232, Ethernet
Version:
220V
Special Features:
HDTV Compatible, HDCP Compatible
Power Rating:
40VA
Maximum Operating Temperature:
+40°C
Colour:
Black
Applications:
Conference Rooms, Advertising, Rental and Staging
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Rack Ears, Power Cord
Performance
Resolution:
Up to UXGA, 1080pixels
Video Bandwidth:
6.75Gbps (2.25Gbps per Graphic Channel)
Inputs and Ports
Input Port Type:
8xDVI-D Connector
Output Port Type:
8xDVI-D Connector
Number of Ports:
8x8
Power
Voltage Rating:
100 TO 240V AC
Dimensions
Length:
23.6cm
Width:
43.6cm
Height:
8.8cm
Weight:
2.9kg
