VS-8UFX 8-Port 12G SDI Matrix Switcher with Interchangeable Inputs & Outputs
Please sign in so that we can notify you about a reply

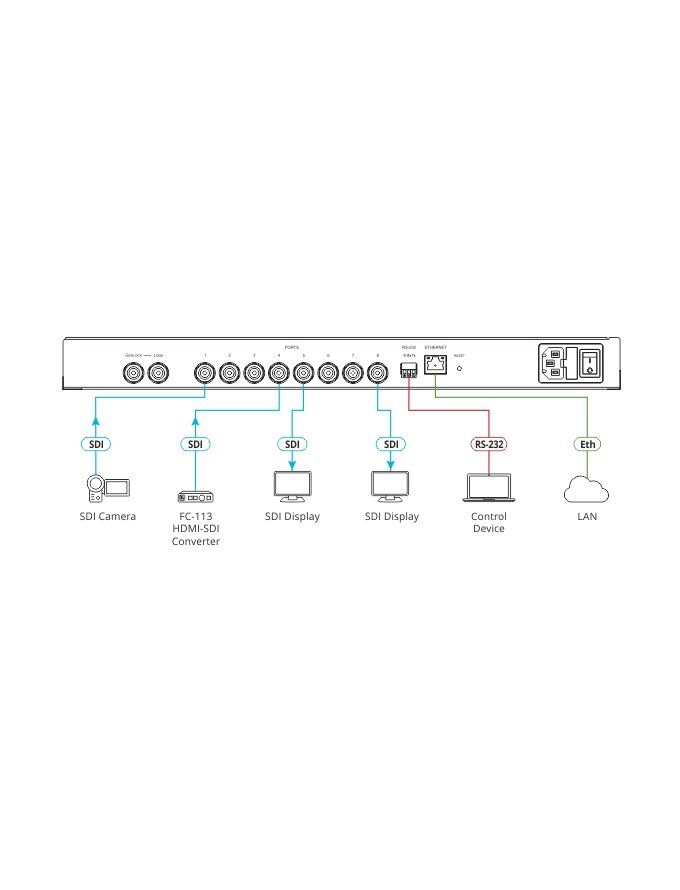

VS−8UFX is an 8−port matrix switcher for SDI signals for up to 12G SDI. Each SDI port can be defined as either an input or output, enabling flexible configurations such as a 1x7 distribution amplifier, 7x1 switcher, 4x4 matrix switcher or any other possible input−output combination. VS−8UFX is easy to operate and control through the network using the intuitive web pages and through RS−232 using a serial controller.
Features
- Max. Data Rate — 12Gbps.
- HDTV Compatible.
- Multi–Standard Operation — 12G–SDI — SMPTE ST–2082–1, 3G–SDI — SMPTE 424M, HD–SDI — SMPTE 292M, SDI — SMPTE 259M/344M
- Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
- Supports ANC Data — Embedded audio, teletext, time code, etc.
- Cable Equalization — Up to 300m for SD signals, 200m for 1.5G HD signals, 100m for 3G and 6G signals, and 80m for 12G signals.
- Clean Switching — When the sources are genlocked to the selected genlock input with a difference of no more than two lines of video.
- Versatile Genlocking — Using an analog signal.
- Memory Locations — Stores 8 multiple switches as presets to be recalled and executed when needed.
Brand:
Kramer
Part number:
20-80476030
Specifications
Product Type:
Matrix Switcher with Interchangeable Inputs & Output
Control Port Type:
Front Panel Button, RS-232, Ethernet, Web pages
Special Features:
HDTV Compatible
Power Rating:
33VA
Maximum Operating Temperature:
+40°C
Colour:
Black
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Rack Ears, Power Cord
Performance
Resolution:
4K@60Hz (4:2:2)
Video Bandwidth:
12Gbps
Inputs and Ports
Input Port Type:
8x12G HD-SDI/HD-SDI/SDI Video on BNC Connector, 1 Genlock 75Ω on BNC Connector
Number of Ports:
8
Power
Voltage Rating:
100 TO 240V AC
Standards
Standards Met:
CE, RoHS Compliant, WEEE
Dimensions
Length:
18.3cm
Width:
43.64cm
Height:
4.3cm
Weight:
1.7kg
