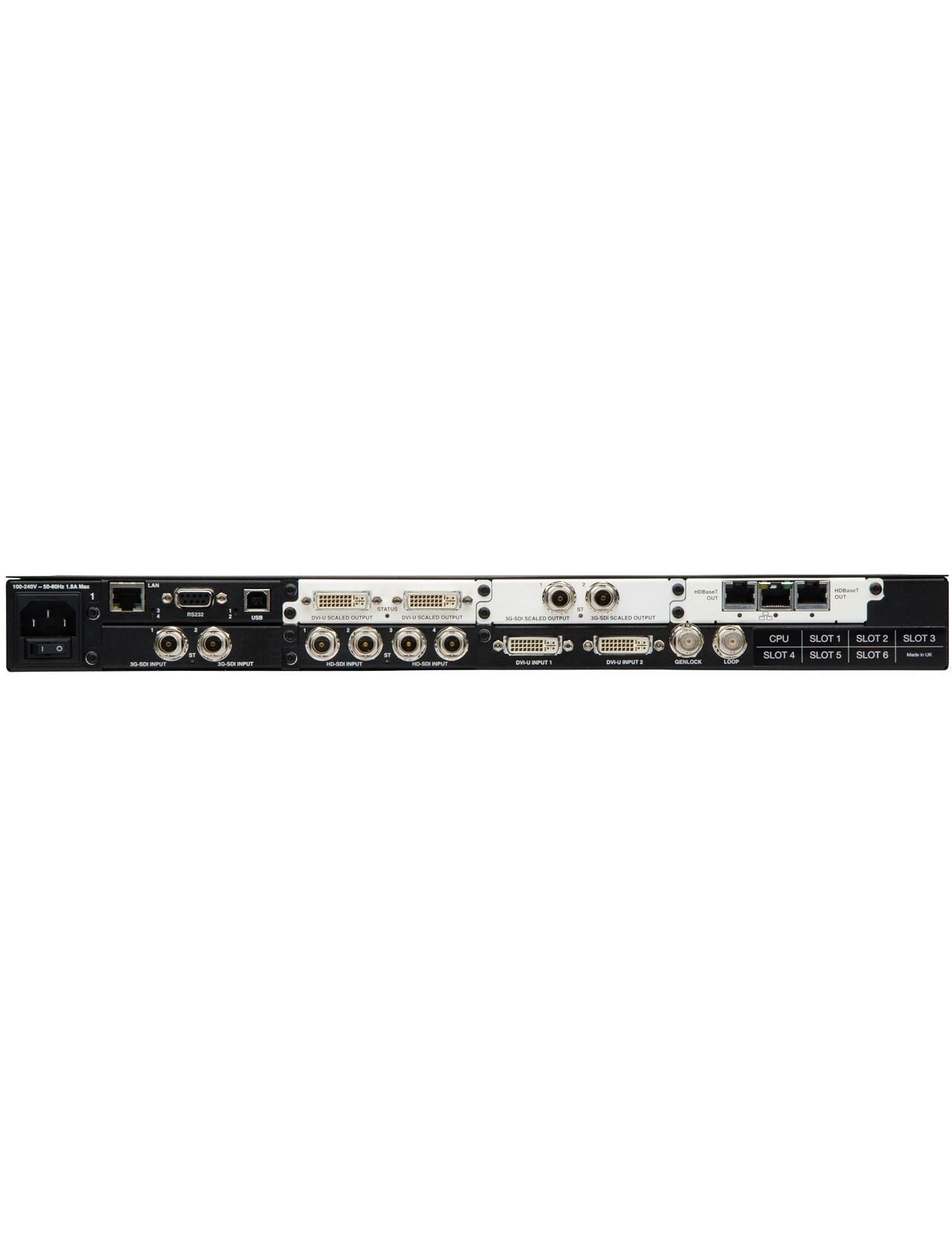

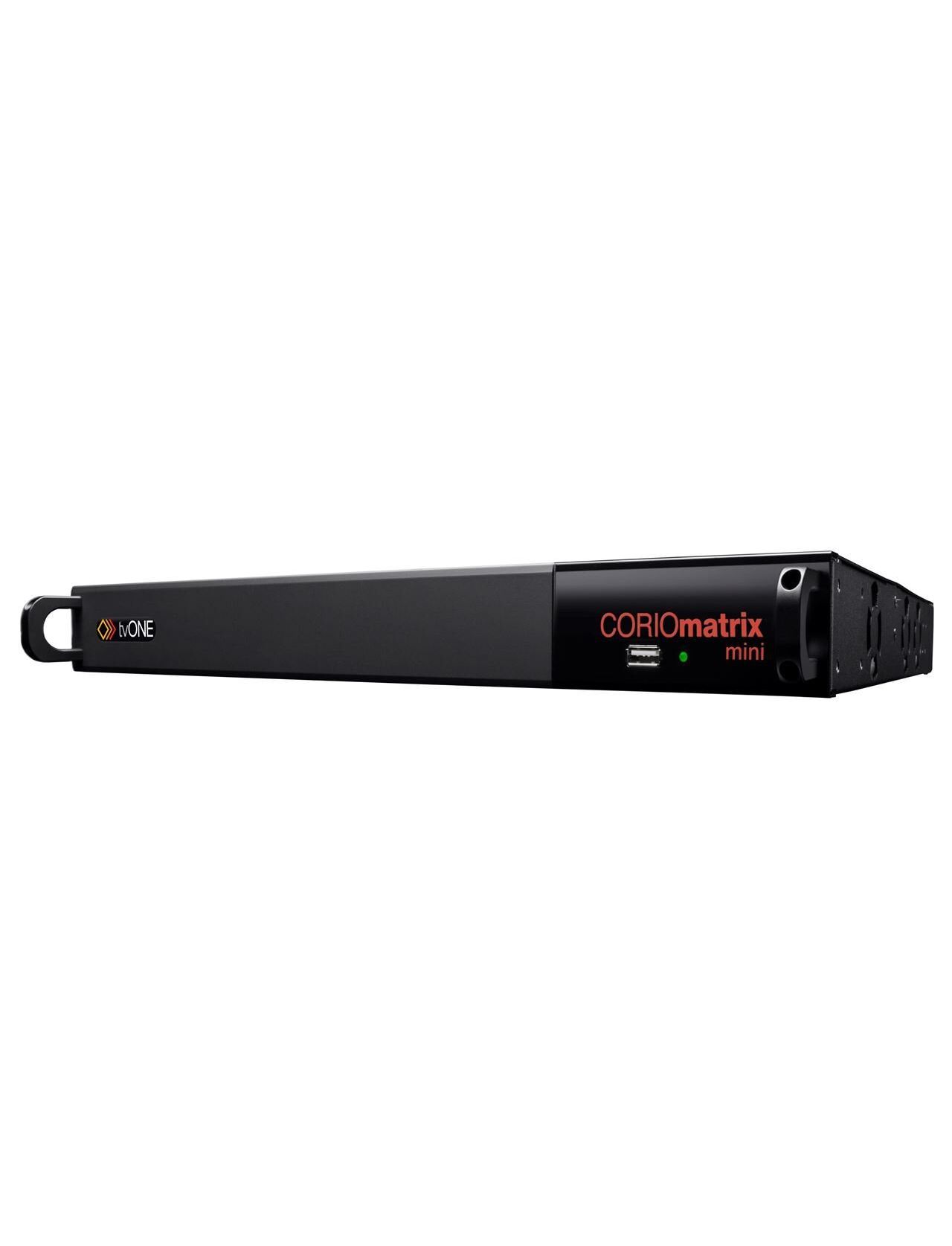

C3-310 Matrix Router, 1RU Chassis, 2xDVI-U Fixed Inputs, 5xOut Module Slots, DVI, HDMI Audio Output
Please sign in so that we can notify you about a reply
CORIOmatrix, the industry's leading ultra-flexible, modular, multi-format 4K matrix router, is a one box solution for integrating mixed AV, broadcast, IP and legacy sources seamlessly at very low latency. It's ideal for applications where SDI is used in conjunction with 4K HDMI, DVI, and H.264/H.265 IP feeds. CORIOmatrix (4RU) and CORIOmatrix mini (1RU) can accept a huge number of I/O configurations allowing complex functionality to be quickly and simply configured to meet your exact needs. CORIOmatrix is 100% dependable helping you to eliminate show-stopping AV moments while also being whisper quiet for in-room installs.
Features
- More than just a AV matrix switch
- Flex i/o: unparalleled flexibility and freedom when dealing with mixed any AV format
- Modular design
- Huge variety format support with 12+ modules types
- Low latency format conversion
- Ultra-fast and clean switching
- Video monitoring preview available through optional monitoring output module
- Integral Audio Routing
- Audio de-embed/embed for SDI and DVI/HDMI
- Control: RS-232, TCP/IP, and WebUI
- Command Line Interface - Third Party Control
- Coming soon: IP streaming integration & local 4K playback
- 4RU Frame Size
- HDCP compliant
- Custom input/output resolution support
- Monitor Standby mode
Brand:
tvONE
Specifications
Product Type:
Matrix Router
Audio Format:
PCM
RS-232 Connector Type:
D-9
Special Features:
Up/Down/Cross Conversion, Format Conversion, Flexible Audio, Integrated Monitoring
Maximum Operating Temperature:
40°C
Colour:
Black
Applications:
Video Processing, Audio Processing
Humidity:
10 to 85%
Minimum Operating Temperature:
0°C
Includes:
Quad HDMI Input Module, Quad 3G-SDI Module
Performance
Bandwidth:
300MHz
Maximum Resolution:
4096pixels
Video Processing:
4:4:4 (RGB/DVDI/HDMI/Y/Pb/Pr), 24bits, 4:2:2(SDI)20bits
Maximum Supported Frame Rate:
1RUfps
Audio Sample Rate:
48kHz
Input Impedance Rating:
10kΩ
Output Level Type:
0.7Vp-p
Inputs and Ports
Audio Output Type:
DVI, HDMI
Video Input Type:
YC (S-Video), YUV/YPbPr, SD/HD-SDI, 3SD-SDI
Power
Voltage Rating:
110 to 240V
Standards
Standards Met:
FCC, CE, RoHS
Dimensions
Width:
48.2cm
Depth:
33.6cm
Height:
4.5cm
Weight:
5kg
