CH-2537TXWPUS UHD+ HDMI/VGA over HDBaseT Wallplate Switcher
Please sign in so that we can notify you about a reply

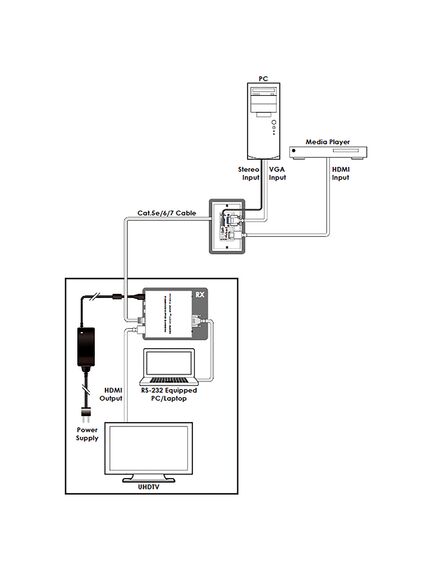

This Wallplate Switcher is an HDMI and VGA switch with audio embedding and HDBaseT output. The wallplate is designed for use with US singlegang sized enclosures. This Transmitter can send uncompressed highdefinition video/audio over a single cable up to a distance of 100 meters at 1080p@60Hz. The HDMI input supports resolutions up to 4K@60Hz (4:4:4, 8-bit) and the VGA input supports resolutions up to WUXGA (RB). With the use of the 3.5mm audio input, stereo audio may be embedded with VGA or DVI sources as well. Despite HDBaseT’s 10.2Gbps bandwidth limitation, high bandwidth 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit), can be supported and will be automatically converted to 8-bit color,or the 4:2:0 color space when necessary. Signal management features such as automatic switching based on input signal and hot plug detection enable convenient handsfree operation. A multifunction button on the face of the unit provides access to an information OSD as well as allowing manual input selection. When paired with a compatible Receiver, additional functionality such as EDID management, HDCP management and basic event automation (which can send customized RS-232 or CEC commands to external devices automatically) also becomes accessible. This Transmitter (PD) may be powered locally or via 48V PoH from a compatible HDBaseT Receiver (PSE), which allows for greater flexibility in installations. The unit can be controlled via the front panel button with OSD. When paired with a compatible Receiver it may also be controlled via WebGUI, Telnet, and RS-232 making it exceptionally versatile.
Features
- Wall plate is designed for US one-gang sized enclosures
- Supports CEC bypass and User activated information OSD
- Unit may be powered locally or via 48V PoH from a compatible HDBaseT Receiver (PSE)
- Supports manual input selection or automatic input selection with hot plug detection
- Basic signal event automation (via RS-232 or CEC w/ compatible Receiver
- USB port supports firmware update and powering of 5V/500mA devices
- Controllable via a multi-function front panel button with OSD, or via WebGUI, Telnet, and RS-232 (w/ compatible Receiver only)
Brand:
Cypress Technology
Specifications
Product Type:
HDMI/VGA Over HDBaseT Wallplate Switcher
Display Type:
PC, Laptop
Power Rating:
20.4W
Colour:
White
Applications:
Household Entertainment Sharing and Control, Lecture Halls, Auditoriums, Classroom, Conference Rooms and Boardrooms, Hotel Event Space
Material:
Aluminium
Performance
Bandwidth:
18Gbps
Maximum Resolution:
2160pixels
Audio Sample Rate:
8bits, 60Hz
Input Impedance Rating:
10kΩ
Inputs and Ports
Video Input Type:
1xHDMI-Type A, 1 VGA (HD-15), 1 Stereo Audio (3.5mm)
Power
Voltage Rating:
12V DC
Voltage Rating:
12V DC
Current Rating:
3A
Standards
Standards Met:
US/EU Standard, CE, FCC Compliant, UL Listed
Dimensions
Width:
4.6cm
Depth:
7.1cm
Height:
10.4cm
Weight:
200g
