VP-427X 4K Auto-Switcher/Scaler Receiver over Long-Reach HDBaseT
Please sign in so that we can notify you about a reply

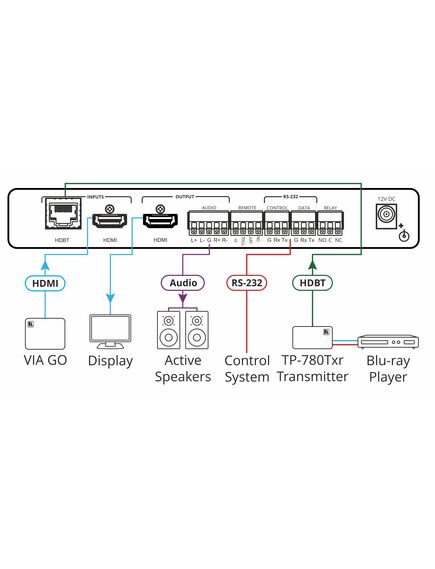

VP−427X is a high−performance auto−switcher/scaler receiver for 4K HDMI™ over long−reach HDBaseT and a local HDMI input. VP−427X receives the HDBaseT signal from a compatible transmitter, converts it to HDMI and up− or down−scales the picture to any resolution up to 4K@60HZ (4:4:4) set by the user or automatically matching the resolution of the HDMI monitor. VP−427X enables extending video signals to up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.
Features
- HDMI Signal Extension — HDCP 1.4 / 2.2. 4K60, CEC, xvYCC color (on input).
- Audio De–embedding — Output the HDMI audio to a balanced stereo output.
- Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.
- Includes relay outputs and easy connection to occupancy sensors and contact closure switches.
- I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation.
- ProcAmp Control — Contrast, brightness, color, etc.
- Freeze button.
- Convenient Unit Control and Configuration Options — Local control via front panel source switching buttons and OSD menu. Distance control via RS–232 serial commands transmitted by a PC, touch screen system or other serial controller and relay switches.
- Easy, Cost–effective Maintenance — Local firmware upgrade via USB connector.
- Easy and Elegant Installation — Compact MegaTOOLS™ fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter.
Brand:
Kramer
Part number:
72-00004490
Specifications
Product Type:
Auto-Switcher/Scaler Receiver
Special Features:
HDMI Signal Extension, Audio De-embedding, Bidirectional RS-232 Extension, Procamp Control, Freeze Button, Convenient Unit Control and Configuration Options, Easy and Cost-Effective Maintenance, Easy and Elegant Installation
Maximum Operating Temperature:
+40°C
Colour:
Black
Applications:
Classroom and Lecture Halls, Meeting Rooms, Training Facilities, Collaborative Classroom
Material:
Aluminium
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Adapter, Rubber Feet, Bracket Set
Performance
Maximum Resolution:
1080pixels
Video Processing:
4:2:0, 4:4:4
Inputs and Ports
Video Input Type:
HDMI Connector
USB Type:
USB-A
Power
Voltage Rating:
12V DC
Voltage Rating:
12V DC
Current Rating:
1A
Standards
Standards Met:
CE, FCC Compliant
Dimensions
Width:
18.75cm
Depth:
14.5cm
Height:
2.5cm
Weight:
0.9kg
