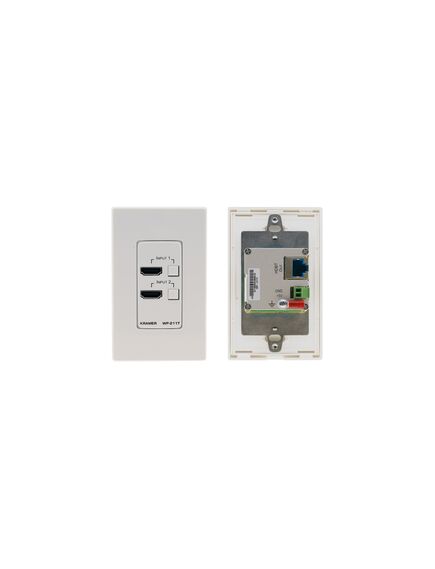

WP-211T/US(W/B) Wall-Plate Auto Switcher, White/Black, 5 V DC
Please sign in so that we can notify you about a reply
WP−211T is a high−performance PoE−powered wall−plate automatic switcher of 4K HDMI video signals, transmitted over long−reach HDBaseT extension link. Offering priority and last−connected switching options, it automatically switches according to the selected switching scheme based on active video signal detection.
Features
- Plug & Play Auto Switcher — Wall or podium mountable switcher, easily accessible for plugging user device to any of its HDMI input connections, it auto–plays switched source signal on connected display according to user–configured preferences.
- Automatic Input Selection — Plug & play auto switching based on last connected input or manual selection.
- High Performance Switcher Transmitter — Professional HDBaseT Switcher transmitter for providing long–reach signals over twisted pair copper infrastructures. This switcher transmitter is a standard transmitter that can be connected to any market–available HDBaseT–compliant extension product.
- HDMI Signal Switching — HDMI 2.0 and HDCP 2.2 compliant, it supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D.
- Multi–channel Audio Switching — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
- I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing, locking and pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
- Reliable PoE (Power over Ethernet) Powering — Auto–senses the extension line PoE status, it accepts power from a remote PoE provider such as a PoE matrix, with optional mains powering from connected power adapter.
- Easy Installation — Compactly fits into standard US, EU and UK 1–gang in–wall box size, supporting decorative integration with room deployed user interfaces such as electrical switches. Wall–plate installation is fast and cost–effective via a single twisted pair cable, providing both video signal and power (PoE) connections.
Brand:
Kramer
Part number:
20-804971195
Specifications
Product Type:
Wall-Plate Auto Switcher
Version:
US(W/B)
Special Features:
Plug & Play Auto Switcher, Automatic Input Selection, High Performance Switcher Transmitter, HDMI Signal Switching, Multi-channel Audio Switching, I-EDIDPro™ kramer Intelligent EDID Processing™, Reliable PoE (Power Over Ethernet) Powering, Easy Instal
Maximum Operating Temperature:
+40°C
Colour:
Black, White
Applications:
Classroom, Huddle Rooms, Training Room
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Adapter, Power Cord
Performance
Maximum Resolution:
4K@60Hz (4:2:0)
Inputs and Ports
Video Input Type:
HDMI Connector
Power
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Current Rating:
780mA
Standards
Standards Met:
CE
Dimensions
Width:
8cm
Depth:
3.8cm
Height:
8cm
Weight:
0.2kg
No reviews found
