676R 4K60 4:4:4 HDMI and RS–232 Receiver over Ultra–Reach MM/SM Fiber Optic
Please sign in so that we can notify you about a reply

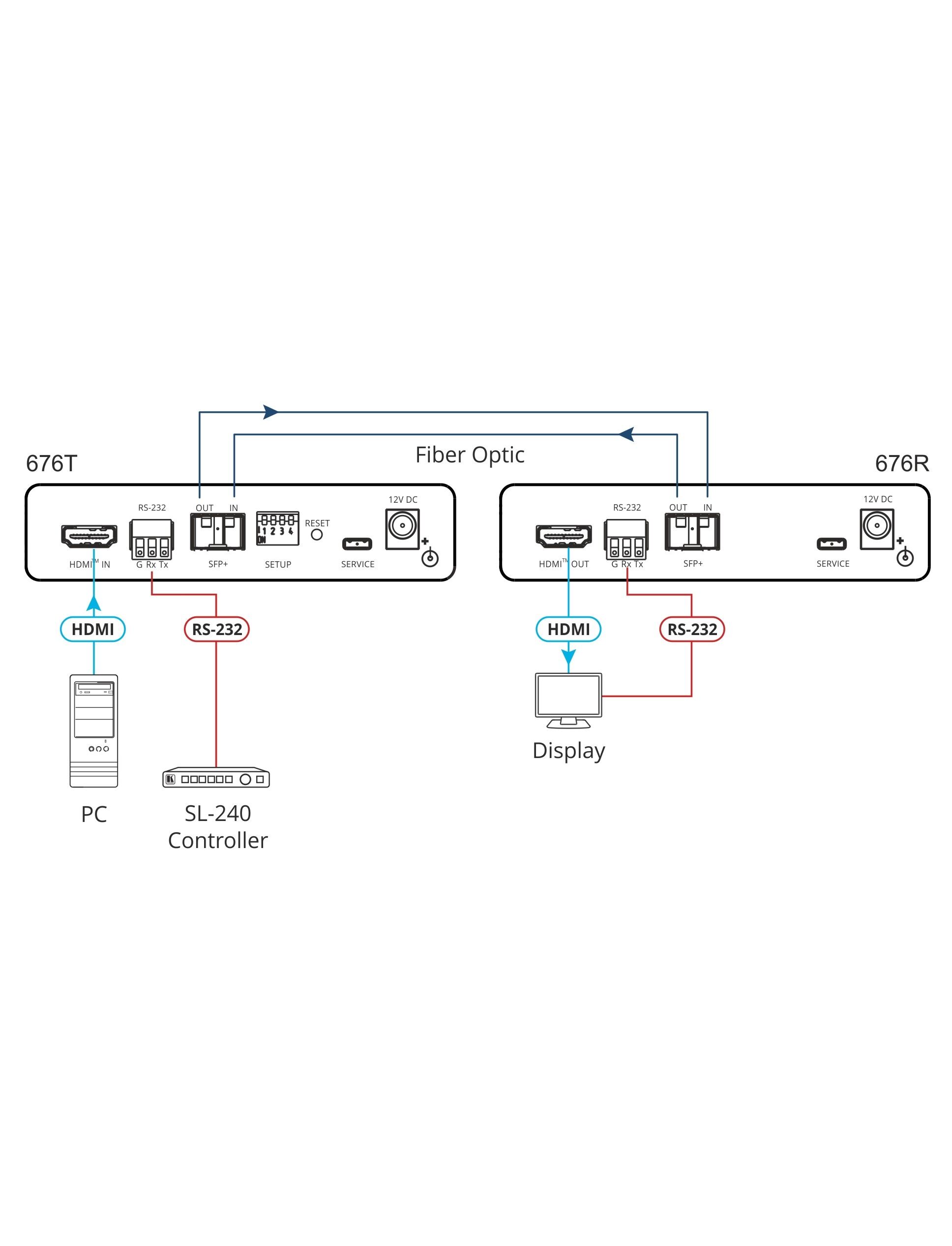

676R is a high−performance HDMI fiber receiver for ultra−reach extension of 4K@60Hz (4:4:4) HDMI signals. 676R receives the transmitted optical signal from a compatible transmitter and converts it to an HDMI and RS−232 signals. 676R includes a multi−mode SFP+ transceiver, but can be used with any Kramer certified SFP+ transceiver, such as a single−mode SFP+ transceiver.
Features
- High Performance Standard Fiber Extender — HDMI fiber receiver for providing ultra–reach signals over either multi–mode or single–mode optical fiber infrastructures, using Kramer pluggable OSP SFP+ units (multi–mode SFP+ included). Near–zero latency video chroma sub–sampling conversion technology, is employed to auto–adapt above 10G HDMI signals to 10G optical link signal data–rate: Note: To ensure specified performance, support, and warranty of this product, use only Kramer's certified hi–performance OSP SFP+ pluggable optical units.
- Multi–drop Signal Distribution — Use optical splitters to extend the input signals from a single transmitter to multiple receivers, for displaying the same content on multiple display devices using optical splitting only, with no need for AV distribution amplifiers.
- HDMI Signal Extension — HDCP 2.2 compliant and supports up to 18G (6G per channel) data rate, LPCM 7.1, Dolby True HD, and DTS–HD as specified in HDMI 2.0.
- Power Saving — With CEC ON/OFF function, shut down a display device automatically when not in use, and auto power it ON upon presentation start.
- I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
- Bidirectional RS–232 Extension — Serial interface data flows in both directions, to enable data transmission and control of devices.
- Cost–Effective Maintenance — Status LED indicators for power, source, sink and fiber link connections detection facilitate easy local troubleshooting.
- Easy Installation — DigiTOOLS® rack mountable fan–less enclosure enables side–by–side mounting of 3 units in a 1U rack space with the recommended rack adapter.
Brand:
Kramer
Part number:
50-167690
Specifications
Product Type:
4K60 4:4:4 HDMI and RS-232 Receiver
Special Features:
Compact, Plug and Play HDMI Optical Receiever, Multi-Mode or Single-Mode Fibre, Control Extension, Up to 33km Ultra-Reach Extension
Maximum Operating Temperature:
+40°C
Applications:
Governmental/Medical/and Rental and Staging, Point-to-Multipoint Optical Distribution Of Controllable AV Signals Over Large Spaces, Ultra-Long Signals Extension for Multi-Room and Inter-Building Connectivity
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
MM SFP+ Transceiver, Power Adapter, Power Cord, Mounting Bracket Set
Performance
HDMI Compliance Type:
2.0
HDCP Compliance Type:
2.2
Video Bandwidth:
18Gbps
Maximum Resolution:
4096x2160pixels@60Hz 4K@60 (4:4:4)
Baud Rate:
300 to 115200bps
Inputs and Ports
Input Port Type:
LC Connector
Output Port Type:
HDMI: on a Female HDMI Connector
I/O Interface Type:
Indicator, Control
Power
Voltage Rating:
12V DC
Voltage Rating:
12V DC
Current Rating:
2A
Standards
Standards Met:
CE, UL Listed, RoHS, WEEE
Dimensions
Width:
12cm
Depth:
7.1cm
Height:
2.4cm
Weight:
0.2kg
