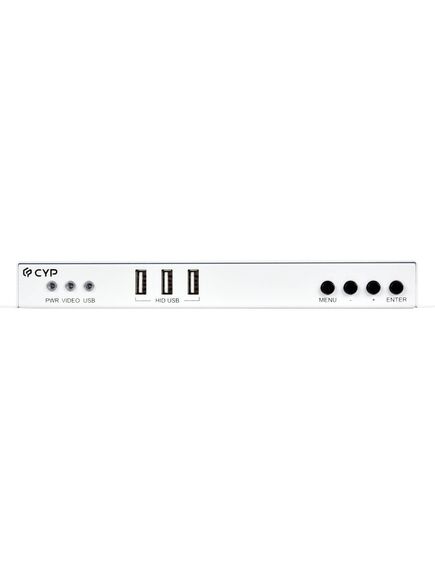

AVIP-P6101R-B1F UHD+ 10G Dual Link to HDMI Receiver
Please sign in so that we can notify you about a reply
The unit is flexible to operate with different link mode to fulfill the requirement of the environment. Dual link type transmitter and receiver could be able to expand 4K60 uncompressed signals simultaneously in both Transmitter and Receiver mode. With Bidirectional audio, it is able to achieve 2 way live chat with low latency. Seamless transition between two sources of same resolution in fast switch mode, with only 3 frames black when transit between 2 sources of different resolutions.Full suite of peripherals supported, including 1G Ethernet, RS232, and HID USB. Supporting all HDMI 2.0 formats including multichannel PCM, Dolby True HD and DTS HD master audio.
Features
- Uncompressed 4k@60p RGB in genlock mode
- 4k@30 endoscopy plus four sub 2k vital signs
- Flexible multiview as side by side, PiP for endoscopy, four 2k@30 quadview
- No crop, no stretch, and no change in aspect ratio in the scaled down video in multiview mode
- Preview at PC side
- Dual link decoder operating in dual link mode can only operate in Genlock mode
- Dual link decoder operating in single link mode has the same capabilities as a standard single link encoder
- USB KVM function
Brand:
Cypress Technology
Specifications
Product Type:
UHD+ 10G Dual Link to HDMI Receiver
Number of Channels:
Applications:
Video, Audio, LAN, USB KVM Function
Includes:
1G Ethernet, RS-232, HID USB
Performance
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
2.2
Maximum Audio Level:
2VRMS
Maximum Resolution:
4096x2160pixels@60Hz YUV 4:4:4
Output Signal Type:
4K@60Hz YUV 4:4:4
Signal-to-Noise Ratio:
80dB
Inputs and Ports
Input Port Type:
1x3.5mm Analog
Output Port Type:
1xHDMI-Type A, 1x3.5mm Analog Stereo
I/O Interface Type:
1 LAN (RJ45), 1 USB (Mini-B), 4 USB (Type A)
Input Signal Type:
4K@60Hz YUV 4:4:4
Power
Voltage Rating:
12V DC
Voltage Rating:
12V DC
Current Rating:
3A
Dimensions
Width:
23.15cm
Depth:
16.7cm
Height:
2.5cm
Weight:
967g
