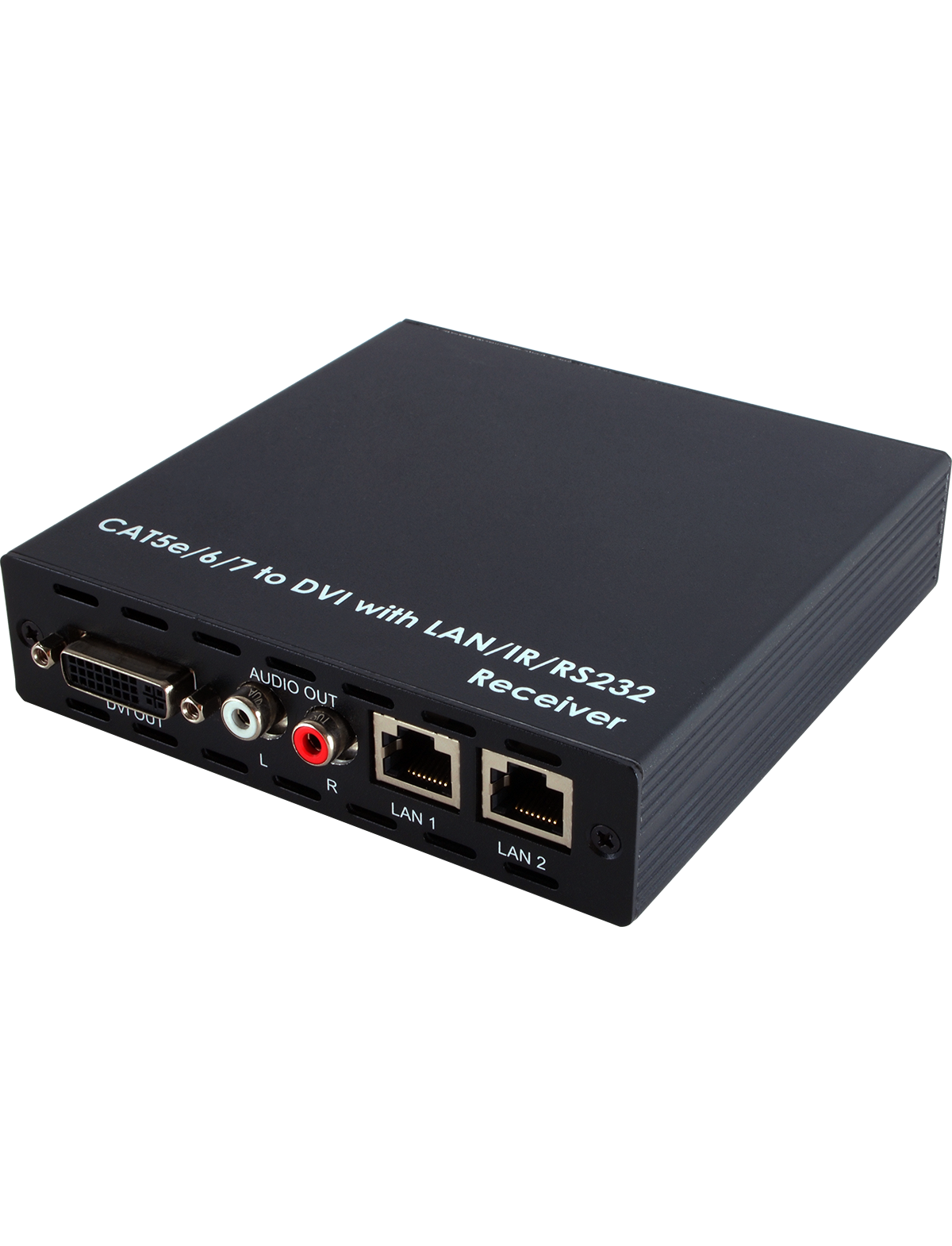

CDVI-1109RXC DVI over CAT5e/6/7 Receiver with 24V PoC and 2 LAN Serving
Please sign in so that we can notify you about a reply
This HDBaseT DVI over CAT5e/6/7 transmitter and receiver set can transmit DVI video, analog audio, 2 LAN serving connections, control (RS-232 and IR) and Power over Cable (PoC) over a single CAT5e/6/7 cable up to 100m. The transmitter can power the receiver, via the PoE function, eliminating the need for a separate power supply providing greater flexibility in installations.
Features
- Supports 3D formats and 4K2K resolution with HDMI to DVI adaptor
- Simultaneous transmission of uncompressed video and audio (1080p@60Hz/Deep Color) over a single CAT5e/6/7 cable up to 100m
- Supports High-definition Audio formats (up to LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio)
- Connect and share up to 4 LAN connections (2 at the receiver end, 2 at the Transmitter end) at speeds up to 100Mbps
- Supports bi-directional IR control and RS-232 pass-through
- Full 5Play™ convergence: Video, Audio, LAN serving, Power over Cable (PoC) and Control (IR & RS-232 bypass)
- Single power supply powers both units, Receiver unit is powered through the Transmitter via PoE
- Installation friendly
Brand:
Cypress Technology
Specifications
Product Type:
DVI Over CAT5e/6/7 Receiver with 24V PoC and 2 LAN Serving
Special Features:
Supports 3D Formats and 4K2K Resolution with HDMI to DVI Adaptor, Connect and Share Up to 4 LAN Connections, Supports Bidirectional IR Control and RS-232 Pass-Through
IR Frequency:
30 to 50kHz
Maximum Operating Temperature:
+40°C
Applications:
Video, Audio, LAN Serving, Power Over Cable
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Video Bandwidth:
10.2Gbps
Maximum Resolution:
480i to 1080pixels@50Hz/60Hz, 1080pixels@24Hz
Inputs and Ports
Input Port Type:
1xDVI, 2xEthernet, 1xL/R, 1xRS-232, 1xIR Extender
Output Port Type:
1xCAT5e/6/7, 1xIR Blaster
Connectivity
Ethernet Speed:
100Mbps
Power
Voltage Rating:
24V DC
Voltage Rating:
24V DC
Current Rating:
1.25A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Standards
Standards Met:
US, EU Standards, CE, FCC Compliance, UL Listed
Dimensions
Width:
12.5cm
Depth:
12.5cm
Height:
3cm
Weight:
384g (TXC), 392g (RXC)
