CH-107RXN HDMI over Single CAT6 Receiver
Please sign in so that we can notify you about a reply
The HDMI receiver over Single CAT6 is a tool for displaying HDMI content at long distances. Instead of using expensive HDMI cables, your existing CAT6 cables/sockets can perform functions like transferring Deep Color (12 bits/ color) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio. Further, with EQ switch added the HDMI signal is strengthen and well present. The HDMI receiver over ONE CAT6 is your preferred HDMI extension tool.
Features
- Supports digital video formats in Deep Color Mode at up to 36 bits (12bits/ color) and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio
- Supports one CAT6 cable for data/DDC transmission
- Equalizes and recovers incoming TMDS data before re-transmitting it in optimal quality regardless of the incoming signal quality
- HDMI cable distance supports up to 10 meters at 1080p/8-bit and 12-bit resolutions
- CAT6 cable distance supports up to 45 meters at 1080p/8-bit resolution and 15 meters at 1080p/12-bit resolution
- Supports x.v.YCC
- Supports 7 steps EQ adjustment for HDMI signal strengthen
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Over Single CAT6 Receiver
Special Features:
Supports Digital Video Formats in Deep Color Mode at Up to 36bits (12Bits/ Color) and New Lossless Compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital Audio, Supports One CAT6 Cable for Data/DDC Transmission, Equalizes and Recove
Maximum Operating Temperature:
+40°C
Applications:
Long Distance HDMI Signal Distribution, Showroom Display, Hypermarket Display, Lecture Room Display
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
HDMI Compliance Type:
1.3 (DVI 1.1 )
HDCP Compliance Type:
1.4
Maximum Resolution:
1920x1080pixels@60Hz, 1920x1200pixels@60HzRB
Output Signal Type:
1920x1080pixels@60Hz 12bits
Inputs and Ports
Input Port Type:

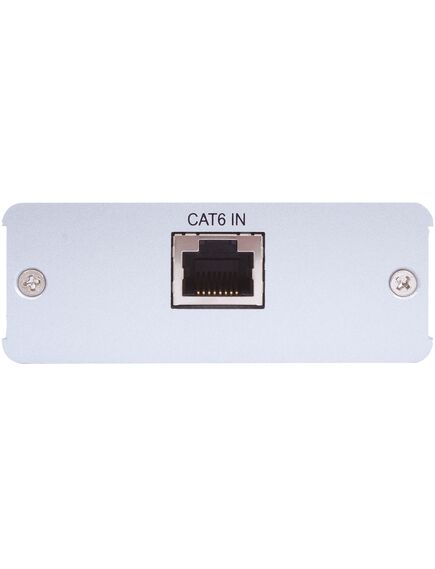

1xCAT6
Output Port Type:
1xHDMI (RJ45)
I/O Interface Type:
PCB on Board, RS-232
Input Signal Type:
1920x1080p@60Hz 12bits
Power
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Current Rating:
1A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Standards
Standards Met:
US, EU Standards, CE, FCC Compliance, UL Listed
Dimensions
Width:
7.85cm
Depth:
7.2cm
Height:
3cm
Weight:
90g
