CH-1527RX UHD HDMI over HDBaseT Receiver with PoH
Please sign in so that we can notify you about a reply

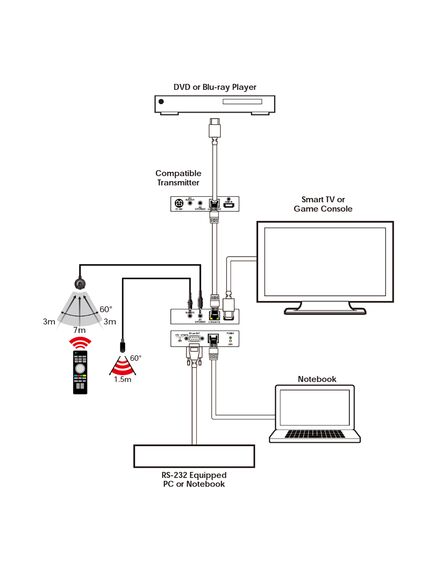

The HDMI over single CAT5e/6/7 Receiver can receive uncompressed audio/ video and IP data over a single run of CAT5e/6/7 cable at a distance up to 100 meter. It has the added benefi t of control through the built-in RS-232 and IR ports and a bi-directional LAN serving connection. The Receiver (PD) can be powered by the PoE 48V function of the Transmitter (PSE), allowing for greater fl exibility in installations.
Features
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI
- RS-232 with baud rate up to 115200/sec
- Supports wide range of IR frequency from 30~50kHz
- HDMI with 3D, 4K2K support, HDMI & DVI Compliant
- Supports CEC bypass
- Simultaneous reception of uncompressed data over a single 100m/328ft CAT5e/6/7 cable
- 5Play™ convergence: HDMI, LAN, PoE & Control (IR & RS-232)
- Supports resolution up to 4K2K@50/60 & YUV 4:2:0 and 21:9
- Supports standard 48V from Transmitter (PSE) to Receiver (PD)
- Installation Friendly
- Supports HDMI Output cable distance up to 5m at 4K2K@50/60 & YUV 4:2:0
Note:
Displaying HDMI 3D and 4K2K contents, equivalent source signal and HDMI cable are required in order to secure the quality.Brand:
Cypress Technology
Specifications
Product Type:
UHD HDMI Over HDBaseT Receiver with PoH
Number of Channels:
Special Features:
Supports Pass-Through of Audio Formats Including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream Over HDMI, Supports CEC bypass, Supports Standard 48V From Transmitter (PSE) to Receiver (PD)
IR Frequency:
30 to 50kHz
Maximum Operating Temperature:
+40°C
Applications:
Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
2.x
Maximum Resolution:
4096x2160pixels@60Hz YUV 4:2:0
Output Signal Type:
4K@60Hz 8bits YUV 4:2:0
Baud Rate:
Up to 115200bps
Inputs and Ports
Input Port Type:
1xCAT5e/6/7 (RJ45)
Output Port Type:
HDMI-Type A
I/O Interface Type:
PC Update, WebGUI
Input Signal Type:
4K@60Hz 8bits YUV 4:4:4
Power
Voltage Rating:
48V DC
Voltage Rating:
48V DC
Current Rating:
0.83A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Standards
Standards Met:
US, EU Standards, CE, FCC Compliance, UL Listed
Dimensions
Width:
10.8cm
Depth:
11.6cm
Height:
2.5cm
Weight:
366g
