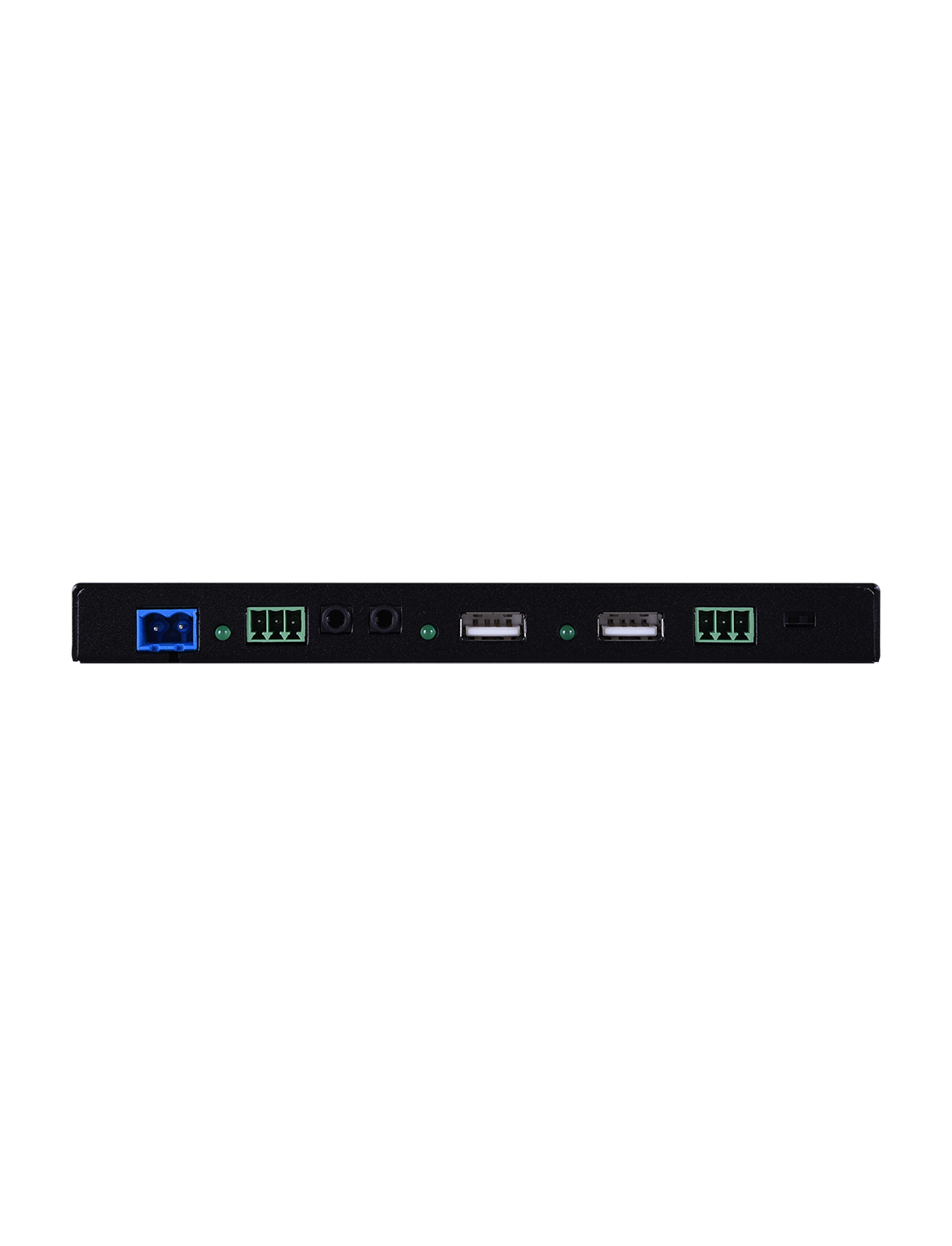

CH-2602RX HDMI over HDBaseT Receiver (PSE) with Optical Audio Return (OAR)Return
Please sign in so that we can notify you about a reply
This HDBaseT 2.0 Receiver can receive uncompressed UHD video and audio that has been transmitted over a single Cat.5e/6/7 cable up to 100m. It has the added benefit of extending control and communication signals through the built-in Ethernet, USB, RS-232 and IR ports. Independent external digital and analog audio transmission capability gives users the extra convenience of additional audio connections. This unit’s system supports connecting any standard USB 2.0 host to the Transmitter, enabling the extension of the USB connection to up to 2 USB ports located on the Receiver, allowing it to act like a USB hub. The integrated 48V PoH (Power over HDBaseT) support provides power to the Transmitter (PD) from the Receiver (PSE), eliminating the need for a separate power supply for the Receiver. The ultra-thin mechanical design allows for flexibility in mounting locations, saving space and making your presentation space orderly and tidy.
Features
- Supports the HDBaseT 2.0 specification over a single Cat.6/7 cable up to 100m/328ft and Cat.5e cable up to 90m/295ft
- HDBaseT 5Play™ convergence: High-Definition (HD) Video and Audio, 100BaseT Ethernet, 48V PoH, and Control (Bi-directional IR/ RS-232 passthrough)
- Transmitter (PD) is powered by 48V PoH from the Receiver (PSE)
- 2×USB 2.0 Type A ports
- Supports pass-through of HD audio formats: LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
- Supports optical audio sampling rates up to 48kHz
- Supports external analog and digital audio extension including support for ARC (Audio Return Channel)
- Supports RS-232 baud rates up to 115200bps
- Ultra-thin mechanical design
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Over HDBaseT Receiver (PSE) with Optical Audio Return (OAR)
Special Features:
Supports the HDBaseT 2.0 Specification Over a Single CAT.6/7 Cable Up to 100m/328ft and CAT.5e Cable Up to 90m/295ft, Transmitter (PD) is Powered by 48V PoH From the Receiver (PSE), 2xUSB 2.0 Type a Ports, Supports Pass-Through of HD Audio Formats: LPCM 2
Maximum Operating Temperature:
+40°C
Applications:
Home Theatre, Presentation, Multimedia, Cinemas, Stores, Entertainment Centres, Video Production, Broadcast Facilities, Retail Stores, Point-Of-Sale Systems, Digital Signage
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
HDMI Compliance Type:
1.4 (DVI 1.0)
HDCP Compliance Type:
2.x
Maximum Resolution:
4096x2160pixels@60Hz YUV 4:2:0
Output Signal Type:
4K@60Hz YUV 4:2:0
Baud Rate:
Up to 115200bps
Inputs and Ports
Input Port Type:
1xHDBaseT (RJ45), 1xOptical Audio (TOSLINK), 1xIR 3.5mm Extender
Output Port Type:
1xHDMI- Type A, 2xUSB 2.0 (Type A), 1xStereo Audio (Terminal Block), 1xLAN (RJ45), 1xIR 3.5mm Blaster, 1xRS-232 (Terminal Block)
I/O Interface Type:
IR/RS-232
Input Signal Type:
4K@60Hz YUV 4:2:0
Power
Voltage Rating:
48V DC
Voltage Rating:
48V DC
Current Rating:
0.83A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Standards
Standards Met:
US, EU Standards, CE, FCC Compliance, UL Listed
Dimensions
Width:
16.3cm
Depth:
7.9cm
Height:
7.8cm
Weight:
352g
