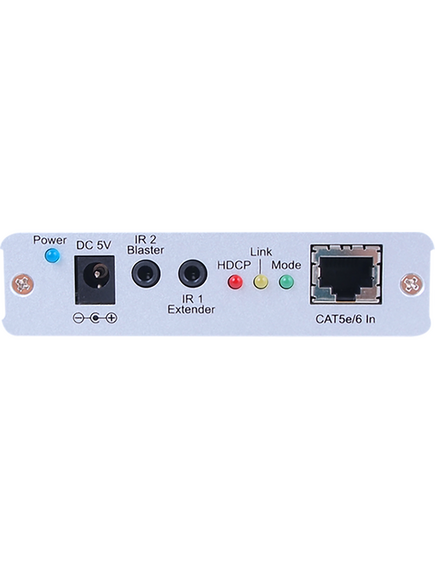

CH-501RX HDMI over CAT5e/6/7 Receiver
Please sign in so that we can notify you about a reply
The HDMI over Single CAT5e/CAT6 with IR transmitter and receiver set can make your home or office set-up more efficient and easy to use. Uncompressed HDMI video and audio can be transmitted over a single CAT5e/CAT6 with the added benefit of control through the built-in RS-232 and IR ports up to 100m. It also features a HDMI bypass function that allows for local testing of the HDMI source.
Features
- Supports HDMI with 3D and 4K2K support, HDCP and DVI compliant
- Supports CEC bypass function
- Simultaneous transmisson of uncompressed data up to 100 m/328 ft for CAT5e or CAT6 cable
- Uncompressed video 1080p, 60 Hz, 36-bit
- Audio support up to 7.1CH & Dolby TrueHD, DTS-HD Master Audio
- Various controls over HDMI, CEC, RS232 and IR
- 3Play convergence: HD video, audio & Control (IR & RS232)
- Installation friendly
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Over Single CAT5e/CAT6 with IR Transmitter and Receiver
Special Features:
Supports HDMI with 3D and 4K2K Support, HDCP and DVI Compliant, Supports CEC bypass Function, Simultaneous Transmisson of Uncompressed Data Up to 100m/328ft for CAT5e or CAT6 Cable, Uncompressed Video 1080pixels, 60Hz, 36bits, Various Control Over HDMI, C
IR Frequency:
30 to 50kHz
Maximum Operating Temperature:
+40°C
Applications:
Home Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control, Any Smart AV Installation System
Minimum Operating Temperature:
0°C
Performance
HDMI Compliance Type:
2.0 (DVI 1.0)
Maximum Resolution:
480 4K@60Hz (YUV 4:2:0, 8bits) and VGA WUxGA@60Hz (RB)
Inputs and Ports
Input Port Type:
1xHDMI, 1xIR Extender, 1xRS-232
I/O Interface Type:
IR/RS-232
Input Signal Type:
YUV 4:2:0, 8bits
Power
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Current Rating:
2.6A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Standards
Standards Met:
US, EU Standards, CE, FCC Compliance, UL Listed
Dimensions
Width:
10.2cm
Depth:
10.7cm
Height:
10.7cm
Weight:
240g
