5013493376281 Wireless Receiver, 20Hz to 22kHz, Dual Channel
Please sign in so that we can notify you about a reply

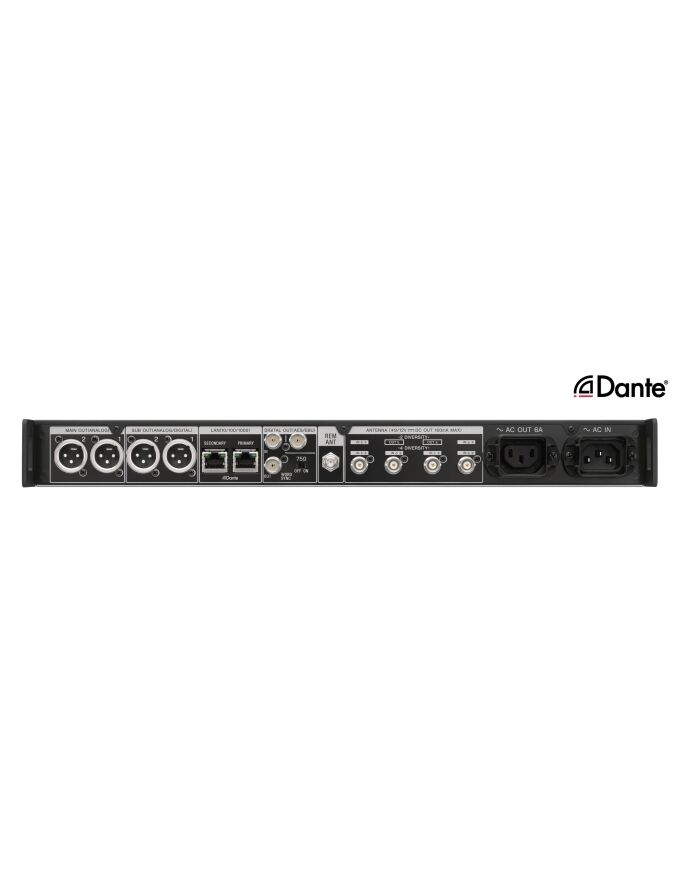

Superb audio quality and stable operation in a wide range of environments. The third generation of Sony's acclaimed DWX series, this high-performance digital wireless receiver is an ideal choice for live sound applications including theater and concerts, as well as studio-based TV production and EFP. The two-channel 1U rack-mountable wireless receiver features Sony's advanced digital audio processing, encryption and RF transmission technologies to assure secure, stable transmission and reception of very high-quality audio with low latency. The DWR-R03D is ideal for use in large-scale multi-channel productions, supporting up to 21 simultaneous channels per 8 MHz TV band or up to 16 simultaneous channels per 6 MHz TV band. Support for the Dante® audio-over-IP standard enables networked multi-channel operation. The DWR-R03D is compatible with Sony Wireless Studio control software for PC (Ver 5.0 or later), allowing flexible remote operation. Remote control of up to 82 transmitters is possible using the Cross Remote™ function combined with the RMU-01 remote control unit
Features- Very high quality wireless audio
- Dante® interface for audio-over-IP networking
- AUTO FREQUENCY CHANGE function
- AUTO CHANNEL COORDINATE function
- AES 256bit encryption
- Spectrum analyzer function
- AC power cascade
- User setting memory
- Transmitter/receiver identify function
- Adjustable audio output level (1dB step)
- Low-latency audio
- Reliable transmission
- Easy, versatile remote control
- High density multi-channel operation
- Four audio codec modes
- 244MHz* wideband
- OUTPUT SWAP function
- Dual OLED displays
- Setting lock
- Switchable analog (balanced) and AES/EBU digital audio sub output
Brand:
Sony
Maximum Audio Level:
106dB
Specifications
Product Type:
Wireless Receiver
Number of Channels:
Special Features:
Output Swap Function, OLED Display, Wide Bandwidth, Very High Quality, Reliable Transmission
IR Frequency:
20Hz to 22kHz
Maximum Operating Temperature:
+50°C
Applications:
ENG, EFP, Live Telecasting
Minimum Operating Temperature:
0°C
Includes:
2xWhip Antenna, 1xAC Power Cord, 1xAC Cascade Cord, 4xFoot,1xOperating Instructions (CD-ROM)
Performance
Video Bandwidth:
244MHz
Maximum Audio Level:
106dB
Impedance Rating:
110Ω
Inputs and Ports
Input Port Type:
BNC-R
Output Port Type:
XLR-3-32 (Male), Stereo Jack
I/O Interface Type:
WiDIF-HP
Power
Voltage Rating:
100 TO 240V AC
Dimensions
Width:
48.2cm
Depth:
33.5cm
Height:
4.3cm
Weight:
3.9kg
