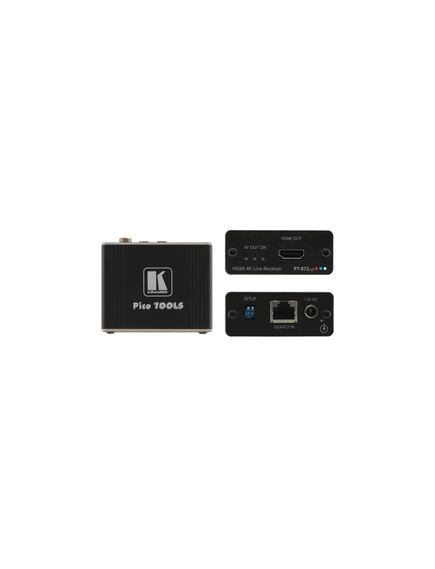

PT-872xr 4K HDR HDMI Compact PoC Receiver over Long-Reach DGKat 2.0
Please sign in so that we can notify you about a reply
PT−872xr is a high−performance, long−reach DGKat™ 2.0 receiver for 4K@60Hz (4:4:4) HDR HDMI and HDCP 2.2 signals and 2−way powering over twisted pair. It converts the transmitted DGKat™ 2.0 signal into an HDMI signal. PT−872xr extends the signal to up to 60m (200ft) at 4K@60Hz (4:4:4) resolution and up to 70m (230ft) at 4K@30Hz (4:4:4) 24bpp resolution over Kramer shielded cables.
Features
- High Performance Extender — Professional DGKat™ 2.0 receiver for providing long–reach signals and 2–way power over twisted pair copper infrastructures. PT–872xr employs low–level video compression technology that delivers visually lossless performance for 4K@60Hz (4:4:4) HDR signals with near–zero latency. It converts the transmitted DGKat™ 2.0 signal into an HDMI signal.
- HDMI Signal Extension — Supports HDR, HDCP 2.2, deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0.
- EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
- Multi–channel Audio Extension — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
- Cost–effective Maintenance — Status LED indicators for HDMI and DGKat™ 2.0 ports facilitate easy local maintenance and troubleshooting.
- Easy Installation — Single twisted–pair cable for signal and power wiring. Compact PicoTOOLS® fan–less enclosure for device–back mounting, or side–by–side mounting of 4 units in a 1U rack space with the optional, compatible Kramer rack adapter.
Brand:
Kramer
Part number:
50-8038701190
Specifications
Product Type:
4K HDR HDMI Compact PoC Receiver
Number of Channels:
32
Special Features:
Compact, Low-Heat DGKat™ 2.0 Receiver, Up to 60m (200ft) at 4K@60Hz (4:4:4), Up to 70m (230ft) at 4K@30Hz (4:4:4), Two-Way Powering
Maximum Operating Temperature:
+40°C
Applications:
Large Room Connectivity, Meeting Rooms, Boardrooms, Hotels, Corporate Facilities
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
1 Power Adapter with Cord, 1 Bracket Set
Performance
HDMI Compliance Type:
2.0
HDCP Compliance Type:
2.2
Video Bandwidth:
18Gbps
Maximum Resolution:
3840x2160@60Hz (4:4:4) 24bpp
Inputs and Ports
Input Port Type:
1xDGKat: on an RJ45 Female Connector for Extension Line
Output Port Type:
1xHDMI: on an HDMI Female Connector
I/O Interface Type:
Indicator, Control
Power
Voltage Rating:
12V DC
Voltage Rating:
12V DC
Current Rating:
2A
Dimensions
Width:
6.22cm
Depth:
5.1cm
Height:
2.4cm
Weight:
0.1kg
