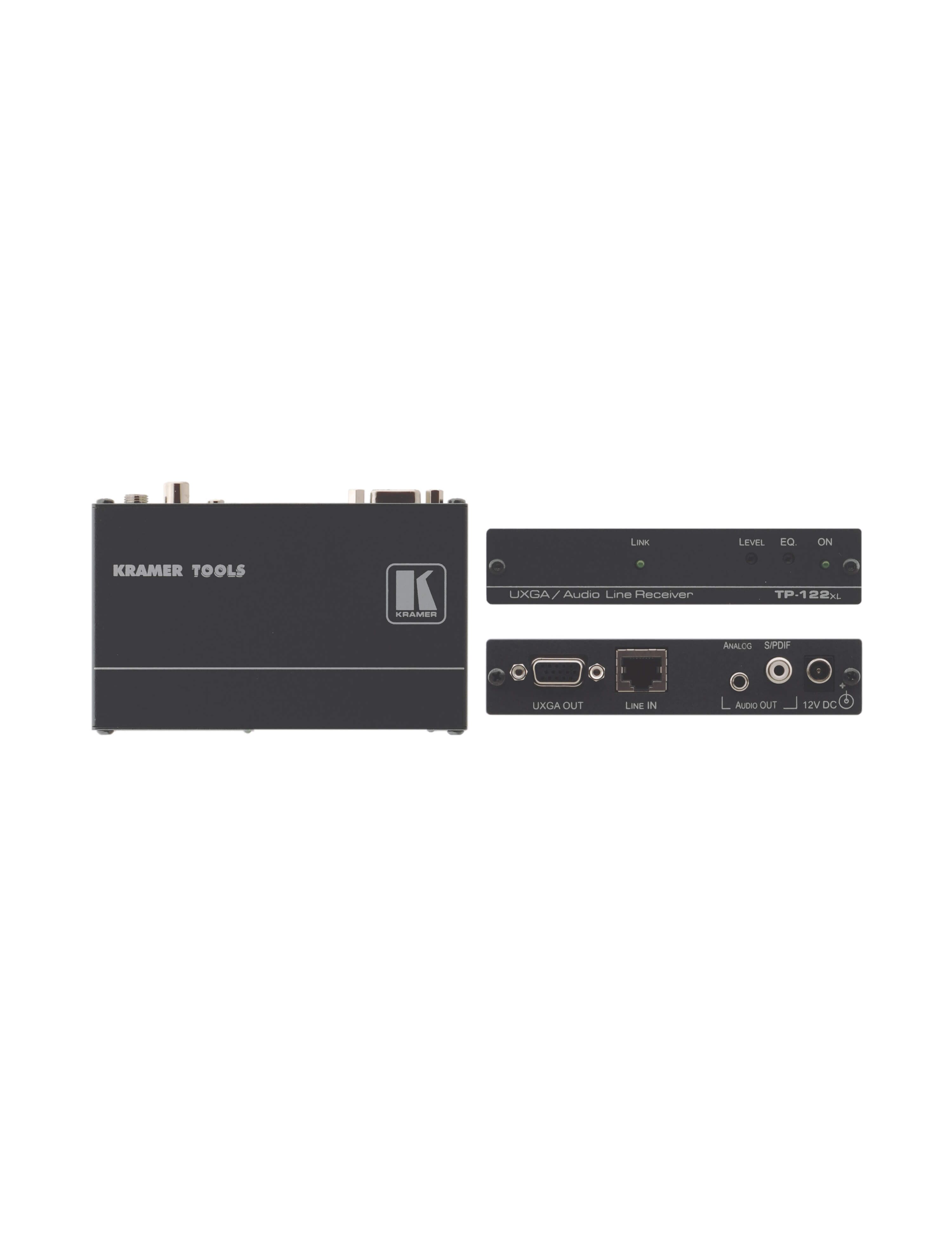

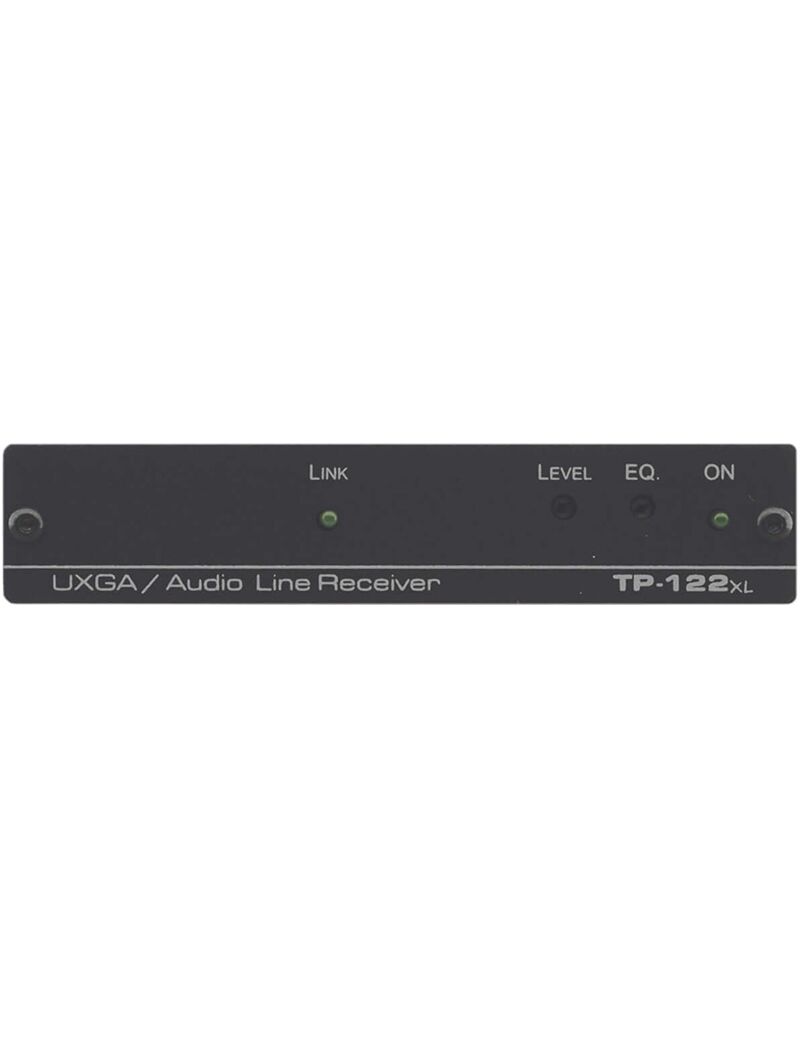

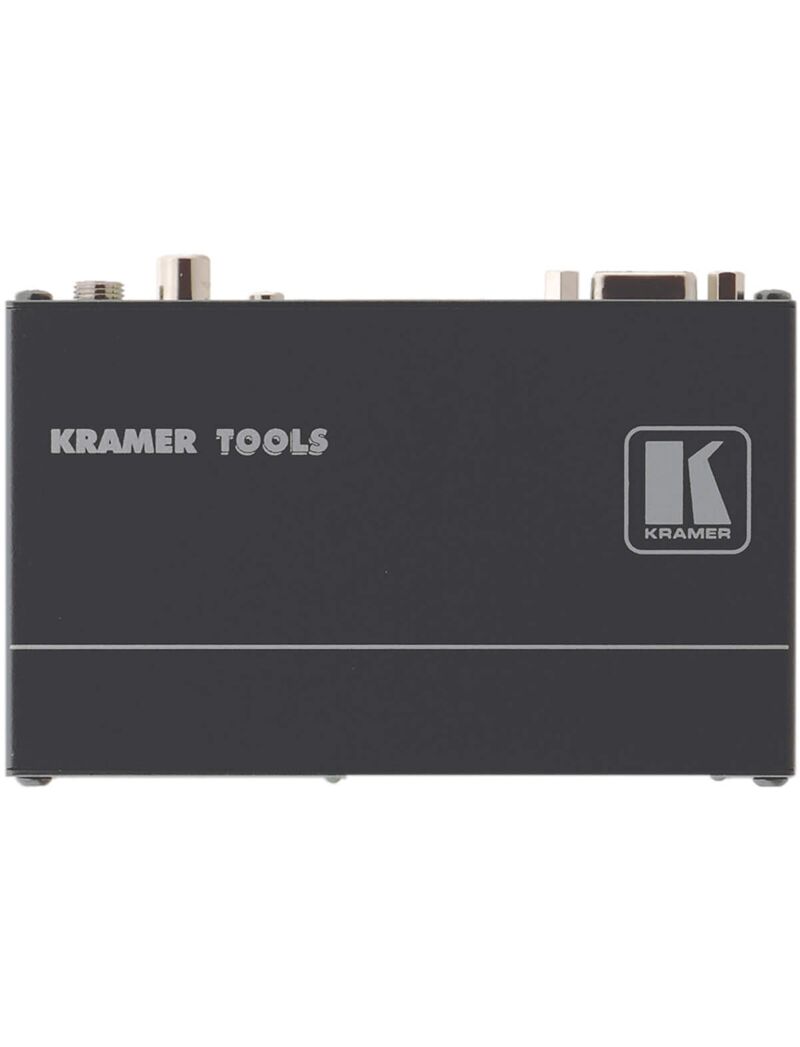

TP-122XL Computer Graphics Video & Stereo Audio over Twisted Pair Receiver
Please sign in so that we can notify you about a reply
The TP−122xl is a high−performance twisted pair receiver for computer graphics video and unbalanced stereo audio signals. It converts the twisted pair input signal to WUXGA video, unbalanced stereo and S/PDIF audio signals.
Features
- Max. Resolution — WUXGA & 1080p.
- HDTV Compatible.
- Interference Protection — Increased level of protection against noise, spikes and interference in adverse environments.
- System Range — More than 250m (more than 820ft).
- Level (Gain) and Equalization (Peaking) Adjustment.
- Cable — UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5.
- Power Connect™ System — A single connection to the transmitter or the receiver powers both units when the devices are within 60m (200ft) of each other.
Brand:
Kramer
Part number:
50-80177390
Specifications
Product Type:
Computer Graphics Video and Stereo Audio Over Twisted Pair Receiver
Includes:
Power Supply
Performance
Maximum Resolution:
Up to WUxGA, 1080pixels
Signal-to-Noise Ratio:
84dB
Inputs and Ports
Input Port Type:
1xTwisted Pair on an RJ45 Connector
Output Port Type:
1xVGA on a 15-Pin HD Connector, 1xUnbalanced 3.5mm Stereo Audio Mini Jack
Power
Voltage Rating:
12V DC
Voltage Rating:
12V DC
Current Rating:
190mA
Dimensions
Width:
12cm
Depth:
7.1cm
Height:
2.4cm
Weight:
0.2kg
