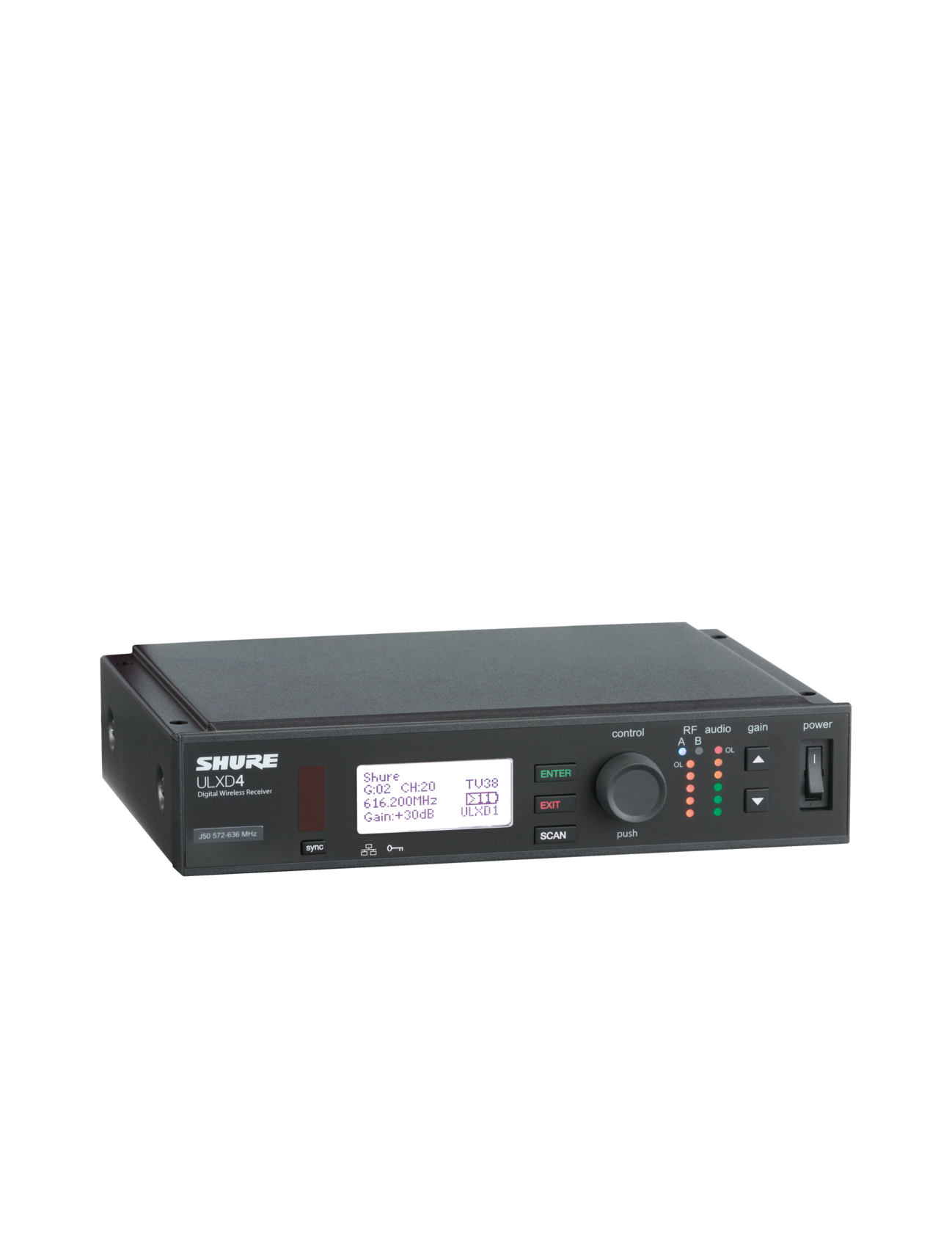

ULXD4E=-Z18 ULXD4 Digital Wireless Receiver, 1785 to 1805 MHz IR Frequency, 1 Channel
Please sign in so that we can notify you about a reply
Digital wireless receiver offers a spectrum and RF intelligent option for use in any professional sound reinforcement application. Features include Digital Predictive Switching Diversity, 72 MHz tuning range, and AES 256 encryption for security.
Features- Digital Predictive Switching Diversity
- Up to 72 MHz tuning range (region dependent)
- Optimized scanning automatically finds, and prioritizes the cleanest frequencies to be manually deployed to transmitters over IR sync
- Bodypack Frequency Diversity ensures uninterrupted audio for mission critical applications
- Individual gain controls (up to 60 dB), LED meters, and XLR outputs for each channel
- Ethernet networking for: streamlined frequency coordination and deployment across multiple receivers; compatibility with Wireless Workbench® 6 software for advanced coordination, monitoring, and control
- Compatible with AMX and Crestron control systems
- Interference detection and alerts
- Intuitive front panel LCD menu and controls with various lockout options, plus audio and RF LED meters with peak indicator
- Removable half wave antennas
- 24 bit / 48 kHz digital audio
- 20 Hz – 20 kHz frequency range with flat response
- Greater than 120 dB dynamic range
- Up to 22 active transmitters in one 8 MHz TV channel in standard mode; High Density mode enables up to 63 active transmitters in one 8 MHz TV channel
- AES-256 bit encryption equipped for secure wireless transmission
Brand:
Shure
Specifications
Product Type:
Digital Wireless Receiver
Number of Channels:
Special Features:
Digital Predictive Switching Diversity
IR Frequency:
1785 to 1805MHz
Maximum Operating Temperature:
+50°C
Applications:
Installed Audio, Critical Audio Performance, High Channel Count, Secure Presentation
Minimum Operating Temperature:
-18°C
Performance
Maximum Audio Level:
18dBV
Impedance Rating:
100Ω (50Ω Unbalanced), 100Ω (XLR)
Total Harmonic Distortion:
<0.1%
Inputs and Ports
Input Port Type:
2xRF Antenna Diversity Jack
Output Port Type:
Balanced XLR Audio
I/O Interface Type:
Single Port Ethernet 10/100 Mbps
Connectivity
Ethernet Speed:
10Mbps (On), 100Mbps (Off)
Power
Voltage Rating:
15V DC
Standards
Standards Met:
WEEE Directive 2012/19/EU, RoHS Directive EU 2015/863, CE Marking, FCC Part 15 and FCC Part 74, ISED in Canada under RSS-102 and RSS-210
Dimensions
Width:
17.1cm
Depth:
4.2cm
Height:
19.7cm
Weight:
913g
Shipping Weight:
3kg
No reviews found
