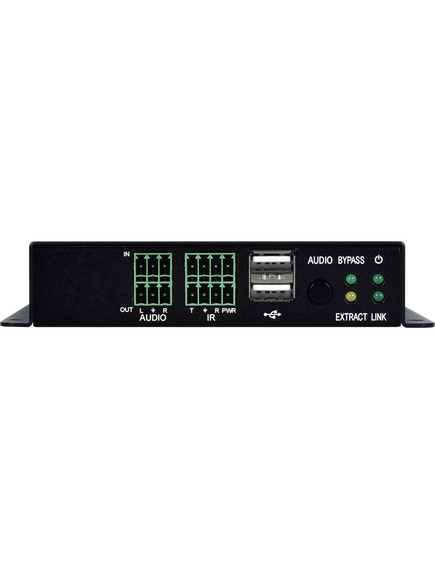

VEX-E2501R UHD+ HDMI over HDBaseT Receiver with USB KVM
Please sign in so that we can notify you about a reply
This Receiver is new generation of HDBaseT 3.0 technology, it is a great solution for extending uncompressed HDMI 2.0 4K@60 (4:4:4, 8-bit) video and HD audio as well as control via a single run of Cat.6a/7 cable over distances of up to 40 meters. Multiple control and data signals may also be transmitted along with the audio and video, including IR, RS-232, and USB 2.0. This Receiver is ideal for any scenario which needs uncompressed video like medical equipment, conference room, education and anything you want to extend.
Features
- HDMI 2.0 and DVI 1.0 compatible, HDCP 2.2 and HDCP 1.x compliant
- HDBaseT 3.0 compliant (Backwards compatible with HDBaseT 2.0/1.0)
- Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output
- HDBaseT feature support: HD Video and Audio, Bi-directional analog audio, and Control (bidirectional USB/IR/RS-232 pass-through)
- 2 USB 2.0 Type-A device ports and 1 Micro USB 2.0 host port
- Supports providing PoH power from Transmitter to Receiver in same HDBaseT port.
Brand:
Cypress Technology
Specifications
Product Type:
UHD+ HDMI Over HDBaseT Receiver
Number of Channels:
IR Frequency:
30 to 50kHz
Maximum Operating Temperature:
+50°C
Applications:
Household Entertainment Sharing and Control, Lecture Hall/Classroom Display and Control, Meeting Room Presentation and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
HDMI Compliance Type:
2.0
HDCP Compliance Type:
2.2
Maximum Audio Level:
2VRMS
Maximum Resolution:
4096x2160pixels@60Hz
Output Signal Type:
HDMI 4K@60Hz 8bits RGB 4:4:4, HDBT 4K@60Hz 8bits RGB 4:4:4
Baud Rate:
Up to 115200bps
Inputs and Ports
Input Port Type:
HDMI-Type A
Output Port Type:
1xHDMI-Type A, 1xHDBaseT (RJ45)
I/O Interface Type:
1xUSB 2.0 (Micro USB)
Input Signal Type:
HDMI 4K@60Hz 8bits RGB 4:4:4, HDBT 4K@60Hz 8bits RGB 4:4:4
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
12.8cm
Depth:
11.2cm
Height:
2.5cm
Weight:
390g
