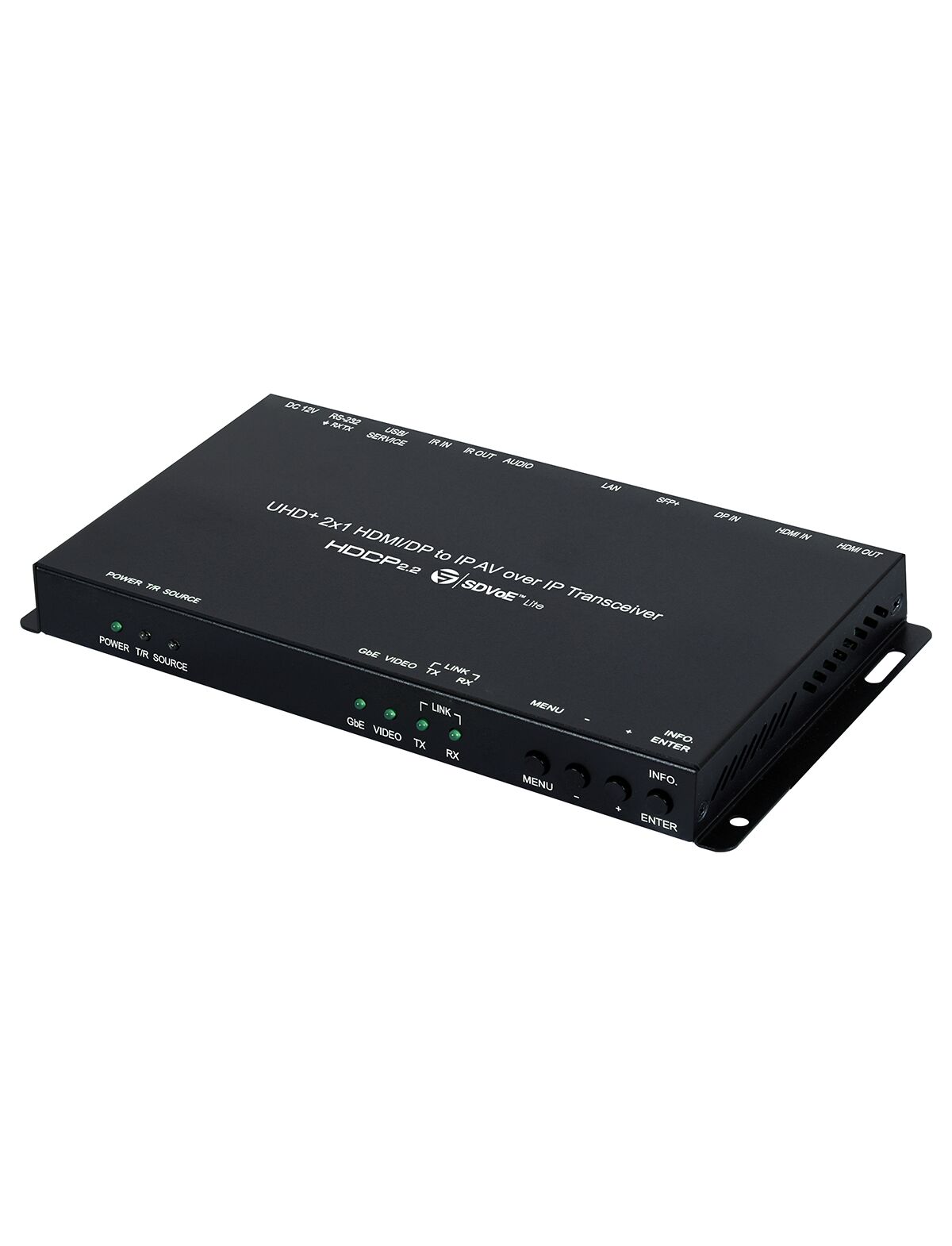

COH-TR6L UHD+ 2x1 HDMI/DP to IP AV over IP Transceiver
Please sign in so that we can notify you about a reply
This Transceiver is designed for high-quality, IP routable, AV extension with zero latency. Each single Transceiver can be configured as either a Transmitter or a Receiver depending on the requirement of installation facility. The 4K@60 high quality video with HDR 10 bits and multi-channel HD Bitstream audio are able to transmit in pass through mode over SFP+ fiber module up to 30km extension.
Features
- Visually lossless compression with zero latency
- Signal transmission interfaces with 10-Gigabit Ethernet switches via a single SFP+ fiber module
- Independent breakaway A/V matrix switching (requires optional control center/software)
- Pass-through of 10/12-bit HDR sources (Genlock modes only)
- Pass-through of audio formats including LPCM (up to 8 channels), Bitstream and HD Bitstream from HDMI sources
- Analog stereo audio extension, insertion and extraction (insertion and extraction requires optional control center/software)
- Supports the use of an external control center or control software to provide expanded functionality
Brand:
Cypress Technology
Specifications
Product Type:
UHD+ 2x1 HDMI/DP to IP AV Over IP Transceiver
Audio Format:
HDMI 8CH LPCM, Bitstream, HD Bitstream
Audio Analog Format:
Unbalanced
Service Port Type:
1xUSB (Mini-B)
Special Features:
Visually Lossless Compression with Zero Latency, Video Wall and Multi Viewer Supported (Requires Optional Control Center/Software), USB KVM Extension Supported, Pass-Through of 10/12bits HDR Sources (Genlock Modes Only), Analog Stereo Audio Extension, Ins
Power Rating:
25W
Maximum Operating Temperature:
+40°C
Colour:
Black
Chassis Material:
Steel
Applications:
Video/Audio/LAN/and IR Over Fibre Extension, Hotel or Convention Centre Display, Multi-Monitor Broadcast, Long Distance Data and Video Transmission Immune to RF Interference, Distributed Video Matrix System, Remote KVM System Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
2.x
Maximum Input Resolution:
4096x2160pixels@60Hz, 2560x1600pixels@60HzRB
Maximum Output Resolution:
4096x2160pixels@60Hz, 2560x1600pixels@60HzRB
Output Signal Type:
4096x2160pixels@60Hz, 8bits YUV 4:4:4, HDR10
Signal-to-Noise Ratio:
80dB
Frequency Rating:
<±0.5dB (20Hz to 20kHz)
Crosstalk Level:
<-80dB (10kHz/Vin=0dBFS)
Inputs and Ports
Bi-Directional Port:
1 10GbE LAN (SFP+)
Input Port Type:
1xHDMI-Type A, 1xDisplay Port
Output Port Type:
HDMI-Type A
Input Signal Type:
4096x2160p@60Hz 8bits YUV 4:4:4, HDR10
Pass-Through Port:
1xStereo Audio (3.5mm), 1xIR Extender (3.5mm), 1xIR Blaster (3.5mm), 1xRS-232 (3-Pin Terminal Block), 1xLAN (RJ45)
Power
Voltage Rating:
12V DC
Voltage Rating:
12V DC
Current Rating:
3A
Standards
Standards Met:
US, EU, CE, FCC Compliance, UL Listed
Dimensions
Width:
23.15cm
Depth:
16.6cm
Height:
2.5cm
Weight:
518g
