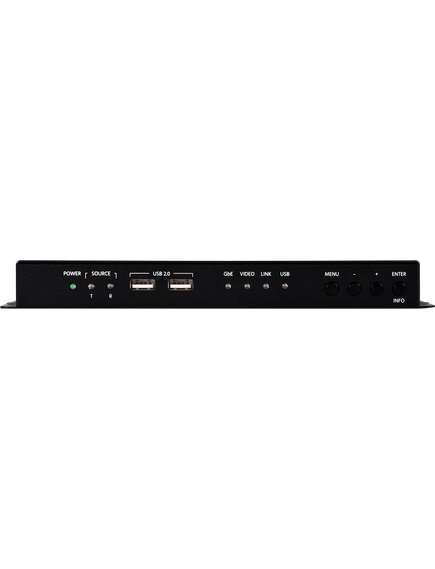

VEX-X5102TR-B1F UHD+ 2x1 HDMI/DP to HDMI AV over Fiber Transceiver W/USB 2.0 HUB
Please sign in so that we can notify you about a reply
This Transceiver is a brand new meaning of transceiver, which able to transmit and receive signal at the same time, there’s no need to confi gure transmitter/ receiver anymore. The unit is designed for high-quality, AV extension with minimum latency through point to point IP transmit. With ultra-light compression scheme (lossless for most content) to extending, 4K audio/video streams (HDMI or DisplayPort) with simultaneous transmitter and receiver Video, and data under 0.1 milliseconds of matrix switch-like end to end transit.
Features
- Point to point extension of audio, video, Gigabit Ethernet, USB and control signals
- Zero latency transmission for all signal types
- Broadcast quality scaler, programmable to scale up or down any resolutions up to 4K
- Audio down-mixing engine from multi-channel PCM audio to stereo
- Colour space conversion and frame rate conversion
- Ultra-light compression, lossless for most content
- Extension up to 30km (maximum distance depends on the SFP+ module and type of fi ber used)
- Supports the use of an external control center or control software to provide expanded functionality
Brand:
Cypress Technology
Specifications
Product Type:
UHD+ 2x1 HDMI/DP to HDMI Bidirectional AV Over IP Transceiver
Audio Format:
HDMI LPCM (8 Channels), Bitstream, High Bit Rate Bitstream
Audio Analog Format:
Unbalanced
Service Port Type:
1xUSB 2.0 (Mini B)
Special Features:
Point to Point Extension of Audio, Video, Gigabit Ethernet, USB and Control Signals, Zero Latency Transmission for All Signal Types, Broadcast Quality Scaler, Programmable to Scale up or Down Any Resolutions Up to 4K
Power Rating:
18.51W
Maximum Operating Temperature:
+40°C
Colour:
Black
Chassis Material:
Steel
Applications:
Video/Audio/LAN/IR/and USB (HID only) Over Fibre Extension, Long Distance Data and Video Transmission Immune to RF Interference, Point-To-Point Secure Video Conferencing, Hotel or Convention Centre Display, Multi-Monitor Broadcast, Distributed Video Matri
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
2.x
Maximum Input Resolution:
4096x2160pixels@60Hz YUV 4:4:4
Maximum Output Resolution:
4096x2160pixels@60Hz YUV 4:4:4
Output Signal Type:
4096x2160pixels@60Hz 8bits YUV 4:4:4
Signal-to-Noise Ratio:
80dB
Frequency Rating:
<±1dB@20Hz, 20kHz
Crosstalk Level:
<-80dB@10kHz
Inputs and Ports
Bi-Directional Port:
1 10GbE LAN (SFP+)
Input Port Type:
1xHDMI -Type A, 1xDisplayport (Female), 1x3.5mm Analog
Output Port Type:
1xHDMI-Type A, 1x3.5mm Analog Stereo
Input Signal Type:
4096x2160p@60Hz 8bits YUV 4:4:4
Pass-Through Port:
1xIR 3.5mm Extender, 1xIR 3.5mm Blaster, 1xRS-232 (DE-9), 2xUSB 2.0 Type A, 1xLAN (RJ45)
Power
Voltage Rating:
12V DC
Voltage Rating:
12V DC
Current Rating:
3A
Standards
Standards Met:
US, EU, CE, FCC Compliance, UL Listed
Dimensions
Width:
23.15cm
Depth:
16.7cm
Height:
2.5cm
Weight:
916g
