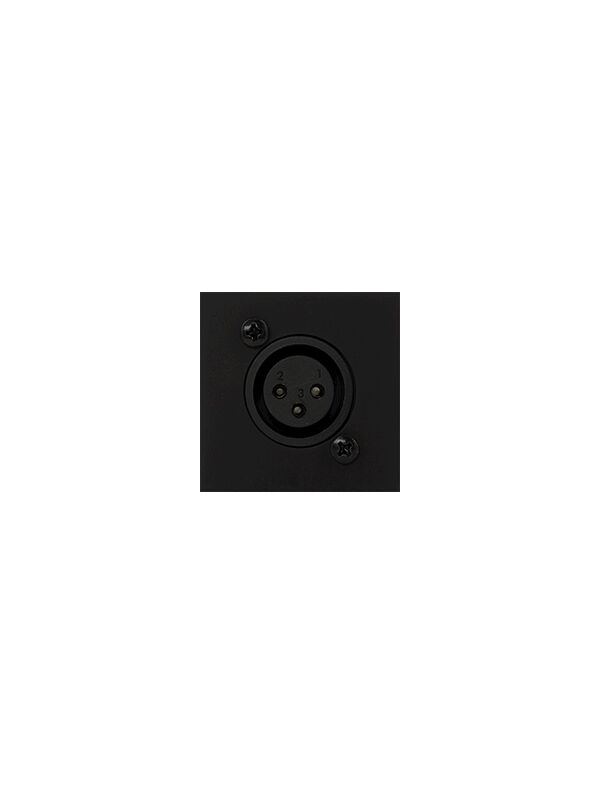

WMI18/B Active Audio Transceiver, XLR Female, 4-Pin Euro Terminal Block, Black
Please sign in so that we can notify you about a reply
The WMI are flush mountable Wall Microphone Input Units, which can be integrated into several kinds of installation materials for system integration. They are fitted with a Female XLR input connector on the front side and a terminal block connector on the rear side. The signal which is applied to the input connection is converted to a differential signal with increased voltage levels. This way, the signal is made insensitive to interference and noise and can be transferred over a long distance without any loss of quality. This allows reliable signal transmission up to 300 meters over CAT5E (or better) twisted pair cabling. A jumper on the rear side allows enabling of 15 Volts phantom power. It should be used in combination with a matching device on the receiver end.
Brand:
Audac
Specifications
Product Type:
Active Audio Transceiver
Special Features:
Signal is Made Insensitive to Interference and Noise and Can be Transferred Over a Long Distance without any Loss of Quality
Power Rating:
0.95W
Applications:
Residential, Corporate, Retail, Hotel, Bar, Restaurant
Inputs and Ports
Input Port Type:
XLR Female Connector
Output Port Type:
4-pin Euro Terminal Block
Power
Voltage Rating:
24V, 12V DC (Phantom)
Current Rating:
40mA
Dimensions
Length:
300m (Cable)
Width:
4.5cm
Depth:
5cm
Height:
4.5cm
