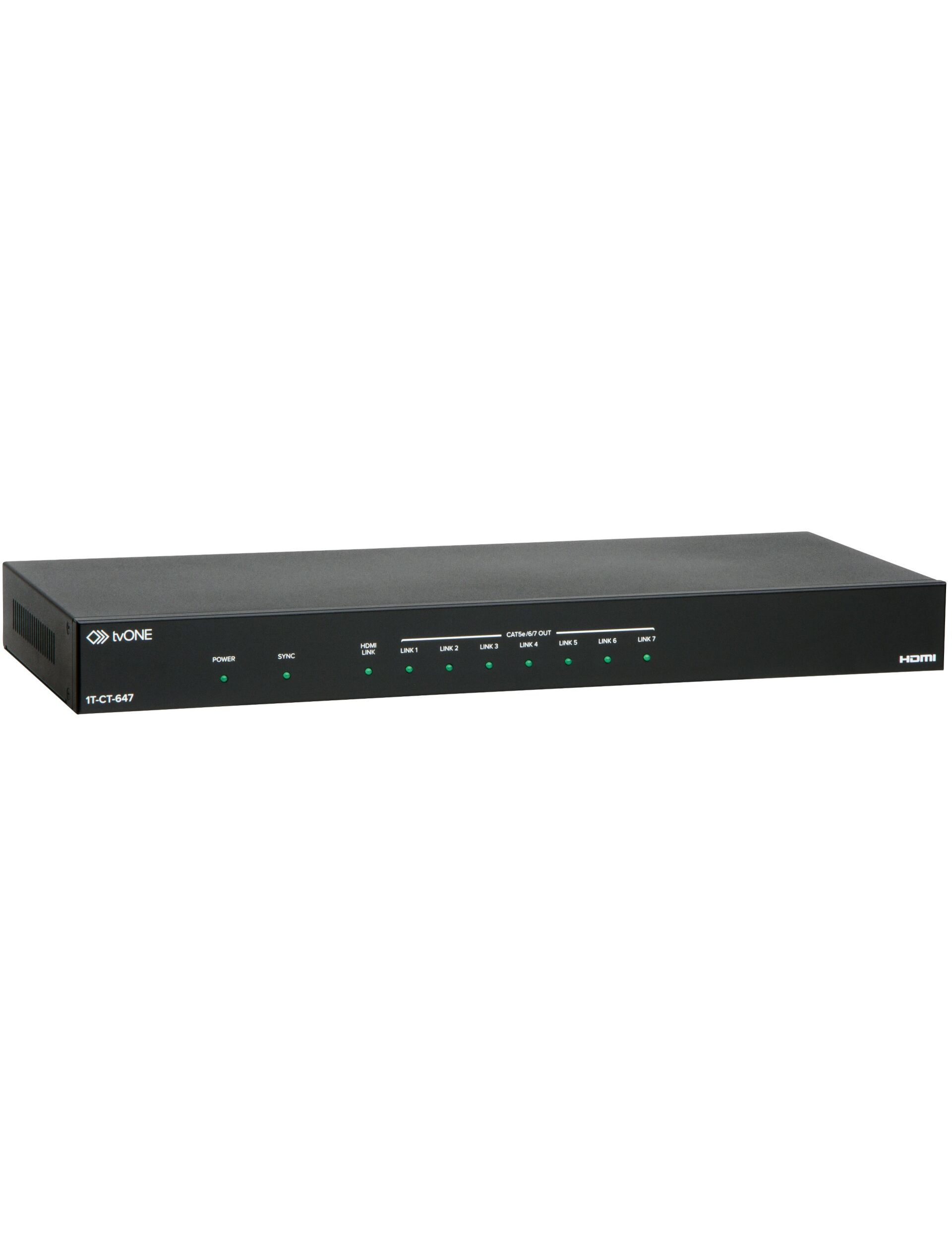

1T-CT-647 7+1-Output Transmitter, HDMI Version 1.4 and IR with 7 Cat 5e/6 Outputs + 1 HDMI
Please sign in so that we can notify you about a reply
1T-CT-647 over Single Cat.5e/Cat.6 system consists of a seven port transmitter for use with 1T-CT-642 Receivers (each purchased separately) which employs HDMI v1.4 capability and the HDBaseT-Lite technology to allow transmission of uncompressed, 1080p high definition television signals over a single Cat.5e or Cat.6 cable. HDMI v1.4 signals - including 3D and 4k UHD formats - are supported and the system will also allow DVI signal transmission with appropriate DVI to HDMI Cable adapters. In addition, embedded LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio capability is standard. The 1T-CT-647 can achieve signal distribution distances of up to 60 meters (197 feet) for uncompressed HDMI signals without signal degradation. A screw on power adapter cable prevents inadvertent disconnection of power.
Features- HDMI w/3D, 4k(24hz/30Hz), HDCP 1.1 & DVI 1.0
- Uncompressed HDMI signal distribution to 60m/197ft
- Class B (HDBaseT-Lite) technology
- Supports Embedded HDMI Lossless Digital Audio
- Full HD resolution support (1080p@60Hz/36bit)
- UHD support (4k@30Hz)
- HD 3D formats & PC resolutions up to WUXGA
- Supports HDCP Repeater and CEC bypass
Brand:
tvONE
Specifications
Product Type:
7 Port HdBaseT Transmitter
Special Features:
Supports Embedded HDMI Lossless Digital Audio, HD 3D Formats & PC Resolutions Up to WUXGA
Maximum Operating Temperature:
+40°C
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
(1) Power Adapter, (1) User Manual, (1) IR Transmitter or Receiver Extender
Performance
Video Format:
HDMI
Frequency Rating:
24Hz, 30Hz
Power
Voltage Rating:
24V DC
Voltage Rating:
24V DC
Standards
Standards Met:
FCC, CE, RoHS, UL, CUL, CE, PSE, GS, RoHS
Dimensions
Width:
4.8cm
Depth:
17.9cm
Height:
4.4cm
Weight:
2122g
