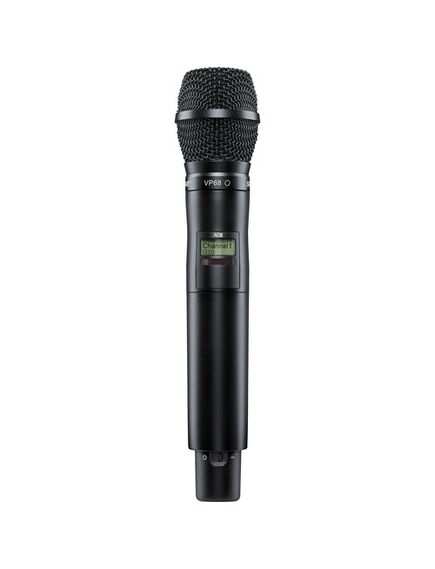

AD2/VP68=-K57 Wireless Microphone Transmitter, 100 m Range, 606 to 790 MHz
Please sign in so that we can notify you about a reply
The AD2/VP68 is a handheld wireless microphone transmitter compatible with Axient® Digital Wireless Systems.With breakthrough RF performance and wide tuning up to 184 MHz, the AD2/VP68 puts professional-quality wireless digital audio within reach.
Features
- Works with Axient® Digital Wireless Systems
- Features the VP68 cartridge
- Offers more than 11 hours of continuous battery life with Shure lithium-ion rechargeable batteries or 8 hours with AA batteries at 10 mW
- Includes AD2/VP68, microphone clip, zipper bag, 2 AA batteries, and user guide
- Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
- Rugged metal construction in black finish
- Backlit LCD with easy-to-navigate menu and controls
- Low-profile, lockable power switch
- Encryption-enabled, secure transmission
- AA or SB900B lithium-ion rechargeable batteries for convenient power options
- External contacts for docked charging
Brand:
Shure
Specifications
Product Type:
Wireless Microphone Transmitter
Polar Pattern:
Omnidirectional
Encryption:
256bits
Transmission Range:
100m
MIC Support:
Omnidirectional Condenser Wireless Microphone Capsule
Sound Field:
Mono
Special Features:
Rugged Metal Constructionin Black Finish, Low-Profile and Lockable Power Switch, Encryption-Enabled, Secure Transmission
Wireless Transmission:
184MHz
Power Rating:
35W
Maximum Operating Temperature:
+50°C
Applications:
High-Profile Sound-Reinforcement
Minimum Operating Temperature:
-18°C
Includes:
Microphone Clip, Zipper Bag, (2) AA Batteries, User Guide, AA or SB900B Lithium-Ion Rechargeable Batteries
Performance
Frequency Rating:
606 to 790MHz
Maximum Input Sound Pressure Level:
145dB
Audio Dynamic Range:
>120dB
Reference Audio Input Level:
145dB
Latency:
2.08ms (Standard Mode), 2.96ms (High Density Mode)
Inputs and Ports
Antenna Port Type:
Integrated Single-Band Helical
Power
Voltage Rating:
1.5V
Standards
Standards Met:
EN 62368-1:2014 + A11:2017, EN 301 489-1 V2.1.1, EN 301 489-9 V2.1.1, EN 300 422-1 V2.1.2RoHS: 2011/65/EU, EN IEC 63000:2018
Dimensions
Length:
25.6cm
Width:
5.1cm
Weight:
340g
