AD3=-G56 Wireless Transmitter, 100 m Range, 470 to 636 MHz
Please sign in so that we can notify you about a reply
The Axient Digital AD3 plug-on transmitter transforms any microphone into an advanced, portable Axient Digital AD Series wireless microphone, delivering impeccable audio quality and RF performance, wide-tuning, and encryption features. Compatible with Axient Digital AD4D and AD4Q receivers in Standard or High Density modes, AD3 features a custom, fast, and secure XLR connector design, support for both AA and Shure SB900-series rechargeable battery options, and simple, user-friendly controls and menus. The AD3 is housed in a lightweight, rugged, metal chassis and is designed to resist sweat, moisture, and debris.
Features
- Patent-pending locking XLR connector for secure, wobble-free connection
- OLED display with easy-to-navigate menu and controls
- Rugged metal construction that is resistant to dust and moisture
- Automatic input staging optimizes gain setting
- AES 256-bit encryption-enabled for secure transmission
- 300 feet (100 meter) line-of-sight operating range
- Selectable modulation modes optimize performance for spectral efficiency
- Standard – Optimal coverage, low latency
- High density – Dramatic increase in max system channel count
- Switchable power levels (2/10/35 mW, region dependent)
- AA battery (included) or Shure SB900B rechargeable battery (sold separately) options
- Optional Shure SB900B lithium-ion rechargeable battery option provides up to 8 hours of continuous use, precision metering, and zero memory effect

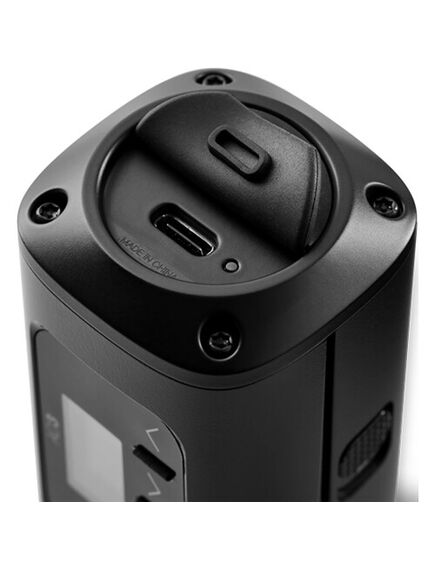

- External power and charging option over USB-C port
- Switchable phantom power (off, +12V, +48V)
- Included: 2 x AA alkaline batteries, USB-A to USB-C cable, belt clip/pouch, and zippered bag for storage
Brand:
Shure
Specifications
Product Type:
Wireless Transmitter
Encryption:
256bits
Transmission Range:
100m
Special Features:
Automatic Input Staging Optimizes Gain Setting, Rugged Metal Construction that is Resistant to Dust and Moisture
Wireless Transmission:
Power Rating:
35mW
Maximum Operating Temperature:
+50°C
Applications:
Touring, Broadcast, Theatre, Conferences or Presentations
Minimum Operating Temperature:
-10°C
Includes:
AA Battery
Performance
Impedance Rating:
26.64KΩ (Pad -12dB), 6.64KΩ (Boost 12dB)
Frequency Rating:
470 to 636MHz
Maximum Input Sound Pressure Level:
21dBV (Pad (-12dB), -3dBV (Boost (12dB)
Audio Dynamic Range:
>120dB
Reference Audio Input Level:
21dBV (Pad (-12dB), -3dBV (Boost (12dB)
Latency:
2.08ms (Standard Mode), 2.96ms (High Density Mode)
Inputs and Ports
Antenna Port Type:
Dipole
Interface Type:
USB-C Port
Power
Voltage Rating:
1.5V
Dimensions
Length:
4.4cm
Width:
4.4cm
Height:
12.6cm
Weight:
240g
