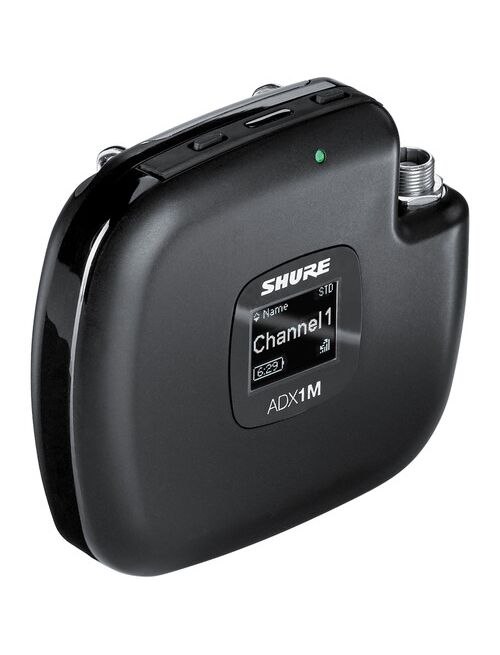

ADX1M=-K57 ADX1M Micro Bodypack Transmitter, 100 m Range, 606 to 790 MHz
Please sign in so that we can notify you about a reply
The ADX1M is a wireless bodypack transmitter compatible with Axient Digital Wireless Systems.ADX transmitters set the stage for exceptional performance, featuring wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.
Features
- Small and streamlined design for better concealment and wear (68mm × 60mm × 18mm)
- High-contrast OLED display
- Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
- Patent-pending internal adaptive antenna for optimized signal when ADX1M is worn against the body
- Ultem®PEI construction for heat resistance and durability
- Recessed LEMO connector
- Sealed buttons and LEMO connection for protection against sweat and moisture ingress
- Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
- Encryption-enabled, secure transmission
- Up to 7 hours of runtime with SB910M rechargeable battery
- Detachable belt clip
Brand:
Shure
Specifications
Product Type:
Micro Bodypack Transmitter
Encryption:
256bits
Transmission Range:
100m
Special Features:
High-Contrast OLED Display, Encryption-Enabled, Secure Transmission
Wireless Transmission:
184MHz
Power Rating:
20mW
Maximum Operating Temperature:
+50°C
Applications:
High-Profile Sound-Reinforcement, Broadcast
Minimum Operating Temperature:
-18°C
Includes:
(2) SB910M Rechargeable Batteries
Performance
Impedance Rating:
8.2kΩ (Audio Input), 50Ω (RF Output)
Frequency Rating:
606 to 790MHz
Maximum Input Sound Pressure Level:
8.5dBV (Pad Off)
Audio Dynamic Range:
120dB (A-Weighted/XLR Analog Output), 117dB (Unweighted), 130dB (A-Weighted/AES3 Dante Digital Output), 126dB (Unweighted)
Reference Audio Input Level:
8.5dBV (Pad Off)
Latency:
2.08ms (Standard Mode), 2.96ms (High Density Mode)
Inputs and Ports
Antenna Port Type:
Integrated Helical
Standards
Standards Met:
EN 62368-1:2014 + A11:2017, EN 62311:2008, EN 301 489-1 V2.1.1, EN 301 489-9 V2.1.1, EN 301 489-17 V3.1.1, EN 300 422-1 V2.1.2, EN 300 328 V2.1.1, RoHS: 2011/65/EU, EN IEC 63000:2018
Dimensions
Length:
6.8cm
Width:
1.8cm
Height:
6cm
Weight:
68g
Shipping Weight:
0.4kg
