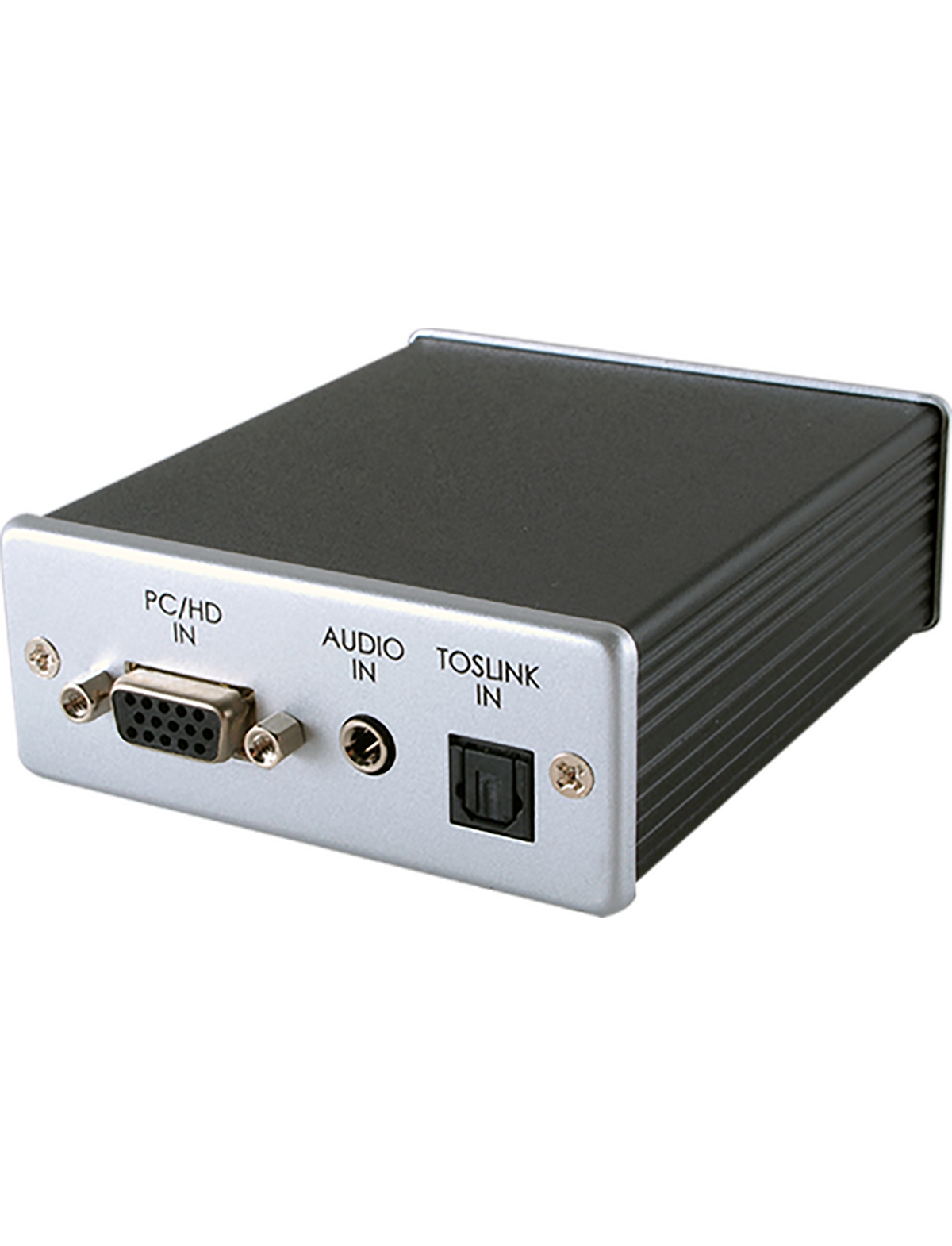

CA-COMPAT VGA over Cat5 Transmitter
Please sign in so that we can notify you about a reply
PC/HD Audio over CAT5 Transmitter is the transmitter (Tx) unit of PC/HD and Audio over CAT5 solution, depends on the type of receiver (Rx) unit used. The system can extend PC/HD & Audio signal through CAT-5 cables for a distance up to 50/100 meters. The installation of PC/HD Audio over CAT5 is easy and quick, simply place the system next to your display, and get all necessary cables connected to complete and enjoy.
Features
- Supports PC/RGB and HD/YCbCr/YPbPr format input
- Supports CAT5/CAT5e/CAT6 cable
- Supports high definition (HD) input source up to 1080p
- Supports PC output source up to UXGA
- Supports Dolby AC3/PCM 2CH TosLink output audio
- Supports Dolby AC3/PCM 2CH TosLink input audio
- Easy to install and simple to operate
Brand:
Cypress Technology
Specifications
Product Type:
Transmitter
Transmission Range:
100m
Special Features:
Supports PC/RGB and HD/YCbCr/YPbPr Format Input, Supports CAT5/CAT5e/CAT6 Cable, Dolby AC3/PCM 2CH TosLink Output Audio and Input Audio
Maximum Operating Temperature:
+40°C
Chassis Material:
Metal
Minimum Operating Temperature:
0°C
Performance
Video Format:
Up to 1080pixels
Frequency Rating:
1kHz
Reference Audio Input Level:
>80dB (SNR), <-60dB (Crosstalk)
Inputs and Ports
Input Port Type:
VGA, Audio L/R and Toslink/SPDIF
Output Port Type:
CAT-5
Power
Voltage Rating:
5V
Voltage Rating:
5V
Current Rating:
1A
Standards
Standards Met:
US/EU Standards, CE, FCC Compliant, UL Listed
Dimensions
Width:
9.95cm
Depth:
7.9cm
Height:
3.2cm
Weight:
200g
