CDVI-1109TXC DVI over CAT5e/6/7 Transmitter with 24V PoC and 2 LAN Serving
Please sign in so that we can notify you about a reply
This HDBaseT DVI over CAT5e/6/7 transmitter and receiver set can transmit DVI video, analog audio, 2 LAN serving connections, control (RS-232 and IR) and Power over Cable (PoC) over a single CAT5e/6/7 cable up to 100m. The transmitter can power the receiver, via the PoE function, eliminating the need for a separate power supply providing greater flexibility in installations.
Features
- Supports 3D formats and 4K2K resolution with HDMI to DVI adaptor
- Simultaneous transmission of uncompressed video and audio (1080p@60Hz/Deep Color) over a single CAT5e/6/7 cable up to 100m
- Supports High-definition Audio formats (up to LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio)
- Connect and share up to 4 LAN connections (2 at the receiver end, 2 at the Transmitter end) at speeds up to 100Mbps
- Supports bi-directional IR control and RS-232 pass-through
- Full 5Play™ convergence: Video, Audio, LAN serving, Power over Cable (PoC) and Control (IR & RS-232 bypass)
- Single power supply powers both units, Receiver unit is powered through the Transmitter via PoE
- Installation friendly
Brand:
Cypress Technology
Specifications
Product Type:
Transmitter
Transmission Range:
100m
Special Features:
High-Definition Audio Formats, Connect and Share Up to 4 LAN Connections, Bidirectional IR Control and RS-232 Pass-Through
Power Rating:
13W
Maximum Operating Temperature:
+40°C
Chassis Material:
Aluminium
Applications:
House Hold Entertainment Media Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control, Any Smart AV Installation System
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
Computers, Routers, Media Servers
Performance
Video Format:
1080pixels@60Hz
Frequency Rating:
30kHz to 50kHz
Inputs and Ports
Input Port Type:

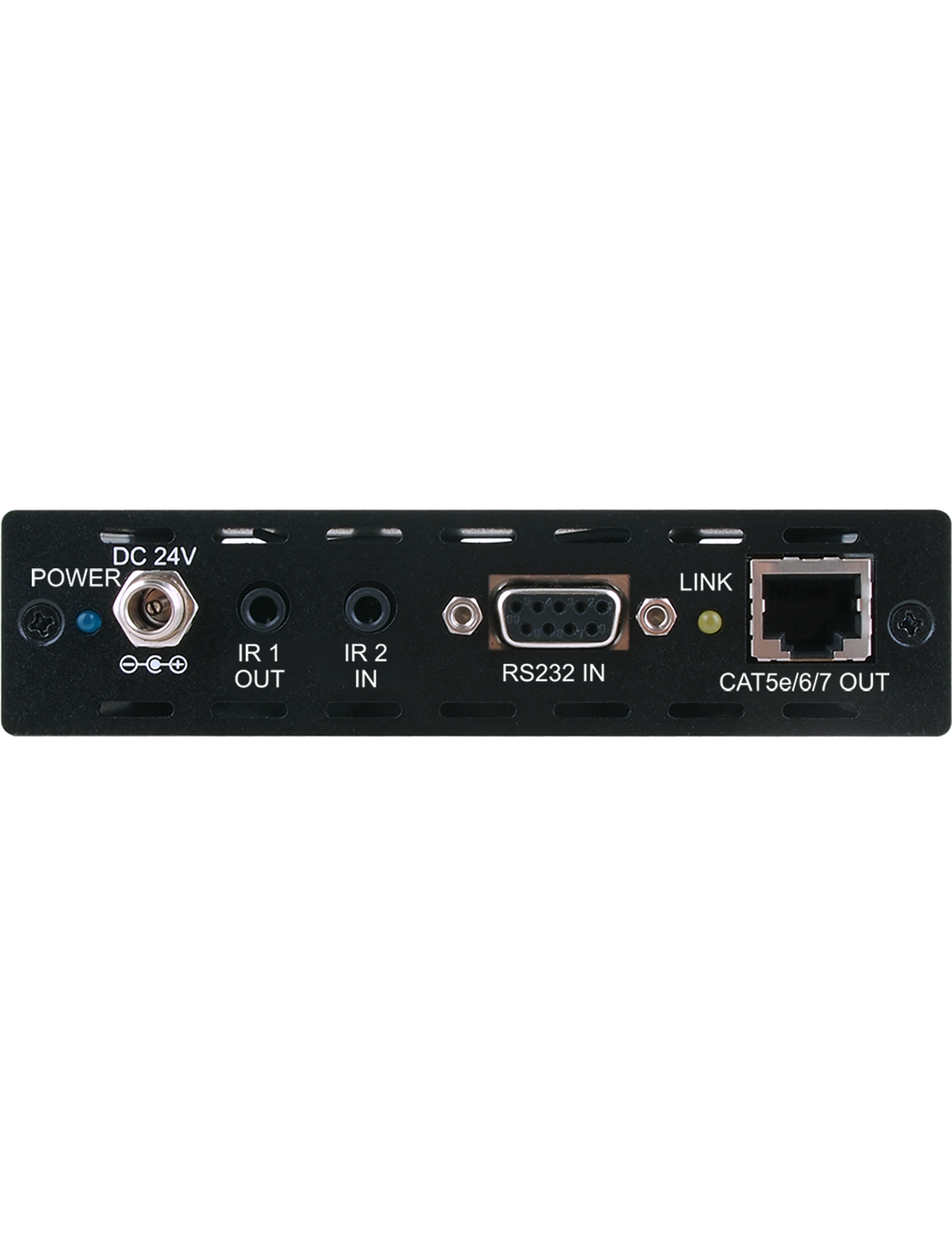

1xDVI, 2xEthernet, 1xL/R, 1xRS-232, 1xIR Extender(Transmitter), 1xCAT5e/6/7, 1xIR Extender (Receiver)
Output Port Type:
1xCAT5e/6/7, 1xIR Blaster, 1xDVI, 1xRS-232, 1xL/R, 2xEthernet, 1xIR Blaster
Power
Voltage Rating:
24V
Voltage Rating:
24V
Current Rating:
1.25A
Standards
Standards Met:
US/EU Standards, CE, FCC Compliant, UL Listed
Dimensions
Width:
12.5cm
Depth:
13.5cm
Height:
3cm
Weight:
384g (TXC), 392g (RXC)
