CH-1527TX UHD HDMI over HDBaseT Transmitter with PoH
Please sign in so that we can notify you about a reply
The HDMI over single CAT5e/6/7 Transmitter can send uncompressed audio/ video and IP data over a single run of CAT5e/6/7 cable at a distance up to 100 meter. It has the added benefi t of control through the built-in RS-232 and IR ports and a bi-directional LAN serving connection. The Transmitter (PSE) can provide power to the Receiver(PD) allowing a greater fl exibility in installations.
Features
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI
- RS-232 with baud rate up to 115200/sec
- Supports wide range of IR frequency from 30~50kHz
- HDMI with 3D, 4K2K support, HDMI & DVI Compliant
- Supports CEC bypass
- Simultaneous transmission of uncompressed data over a single 100m/328ft CAT5e/6/7 cable
- 5Play™ convergence: HDMI, LAN, PoE & Control (IR & RS-2232)
- Supports resolution up to 4K2K@50/60 & YUV_420
- Supports standard 48V from Transmitter (PSE) to Receiver (PD)
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Over HDBaseT Transmitter
Encryption:
12bits
Transmission Range:
100m
Special Features:
Pass-Through of Audio Formats Including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream Over HDMI, RS-232 with BAUD Rate Up to 115200/sec, CEC Bypass, 5Play™ Convergence: HDMI, LAN, PoE and Control (IR and RS-2232)
Power Rating:
13.5W
Maximum Operating Temperature:
+40°C
Chassis Color:
Black
Chassis Material:
Steel
Applications:
48V PoE from Transmitter (PSE) to Receiver (PD), Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Video Format:
4K@60Hz YUV 4:2:0, 4K@60Hz YUV 4:2:0
Frequency Rating:
30kHz to 50kHz
Inputs and Ports
Input Port Type:

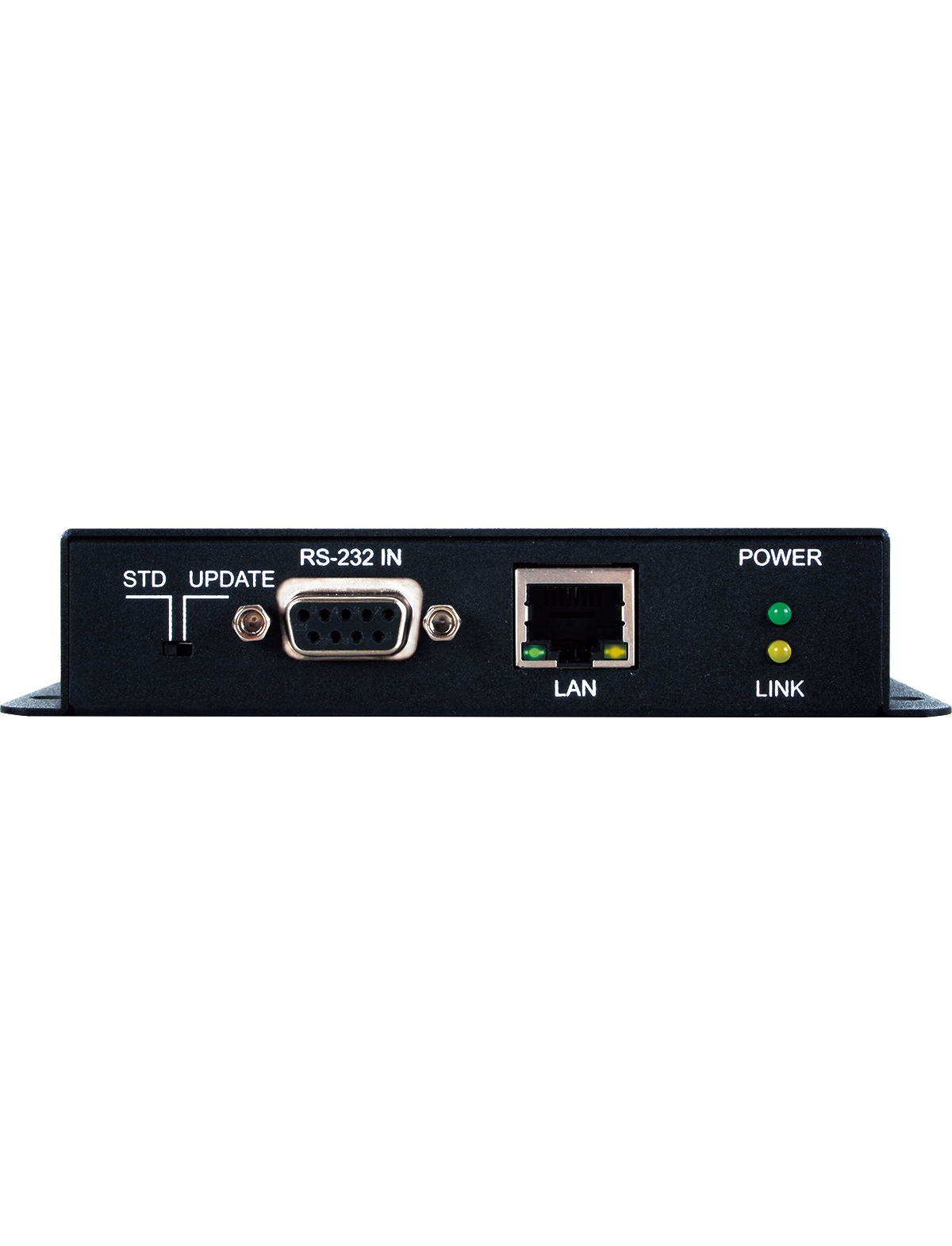

1xHDMI- Type A, 1xIR 3.5mm Extender, 1xRS-232 (DE-9), 1xLAN( RJ45)
Output Port Type:
1xCAT5e/6/7(RJ45), 1xIR Blaster(3.5mm)
Interface Type:
PC Update, WebGUI
Power
Voltage Rating:
48V
Voltage Rating:
48V
Current Rating:
0.83A
Standards
Standards Met:
US/EU Standards, CE, FCC Compliant, UL Listed
Dimensions
Width:
10.8cm
Depth:
11.6cm
Height:
2.9cm
Weight:
370g
