CH-506TXPLBD HDMI to CAT5e/6/7 Transmitter
Please sign in so that we can notify you about a reply

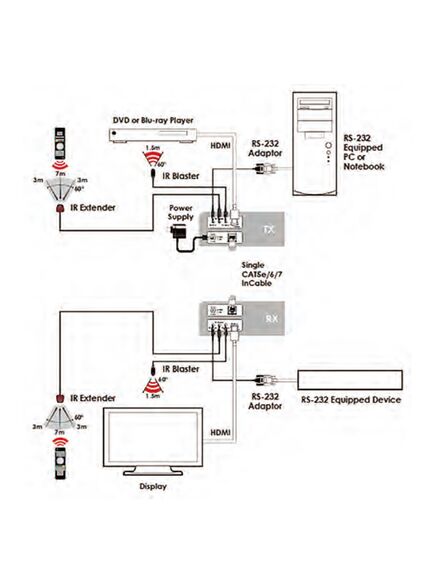

The HDBaseT-LiteTM HDMI over single CAT5e/6/7 with bidirectional IR, RS-232 & bidirectional PoC Transmitter and Receiver set can make your home or office set-up more efficient and easy to use. Uncompressed video and audio can be transmitted up to 70 meters at 1080p or 40 meters at 4K. with the PoC function and added benefit of controls through the built-in RS-232 and IR ports. This family design of HDBaseT™ technology allows a full usage of HDMI and controls over CAT5e/6/7 cable.
Features
- RS-232 with baud rate up to 115200/sec
- Supports wide range of IR frequency from 30~50kHz
- Supports HDMI 3D and 4K x 2K features
- Supports HDCP repeater and CEC bypass
- Supports distance up to 70m/229ft at 1080p and 40m/131ft at 4K through CAT5e/6/7 cable
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI
- Supports bidirectional IR and PoC
- Supports HDBaseT Lite Technology
Brand:
Cypress Technology
Specifications
Product Type:
HDMI to CAT5e/6/7 Transmitter
Encryption:
12bits
Transmission Range:
35m
Special Features:
RS-232 with Baud Rate Up to 115200/Sec, HDMI 3D and 4Kx2k Features, HDCP Repeater and CEC Bypass, Bidirectional IR and PoC, HDbaset Lite Technology
Power Rating:
3W
Maximum Operating Temperature:
+40°C
Chassis Color:
Black
Chassis Material:
Steel
Applications:
Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream
Performance
Video Format:
4K@60Hz YUV 4:2:0, 4K@60Hz YUV 4:2:0
Frequency Rating:
30kHz to 50kHz
Inputs and Ports
Input Port Type:
HDMI-Type A, IR Extender (3.5mm), RS-232 (3.5mm)
Output Port Type:
HDBaseT (RJ45), IR Blaster (3.5mm)
Interface Type:
PCB on Board, Uses RS-232L
Power
Voltage Rating:
24V
Voltage Rating:
24V
Current Rating:
1.25A
Standards
Standards Met:
US/EU Standards, CE, FCC Compliant, UL Listed
Dimensions
Width:
7.1cm
Depth:
7.9cm
Height:
2.3cm
Weight:
120g
