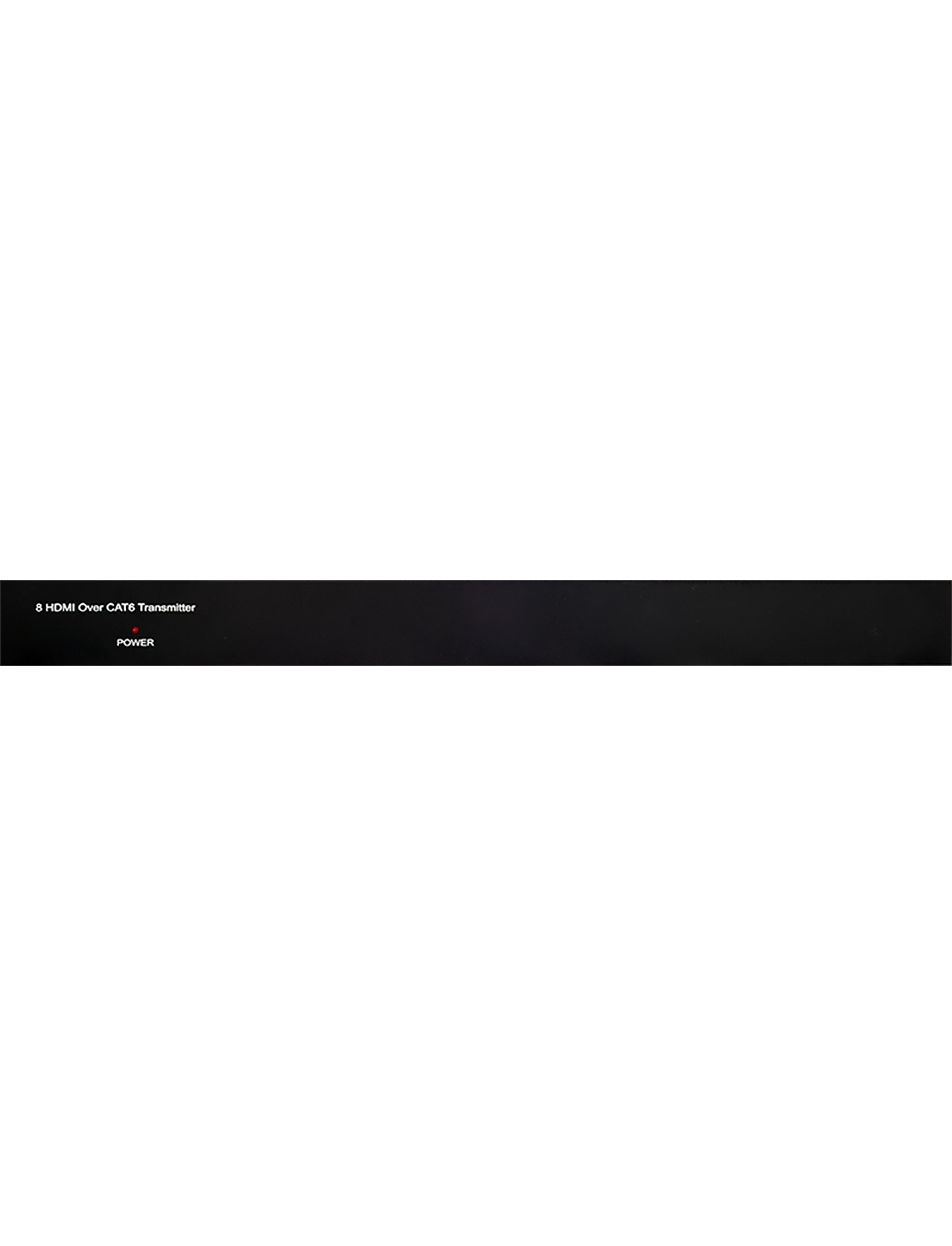

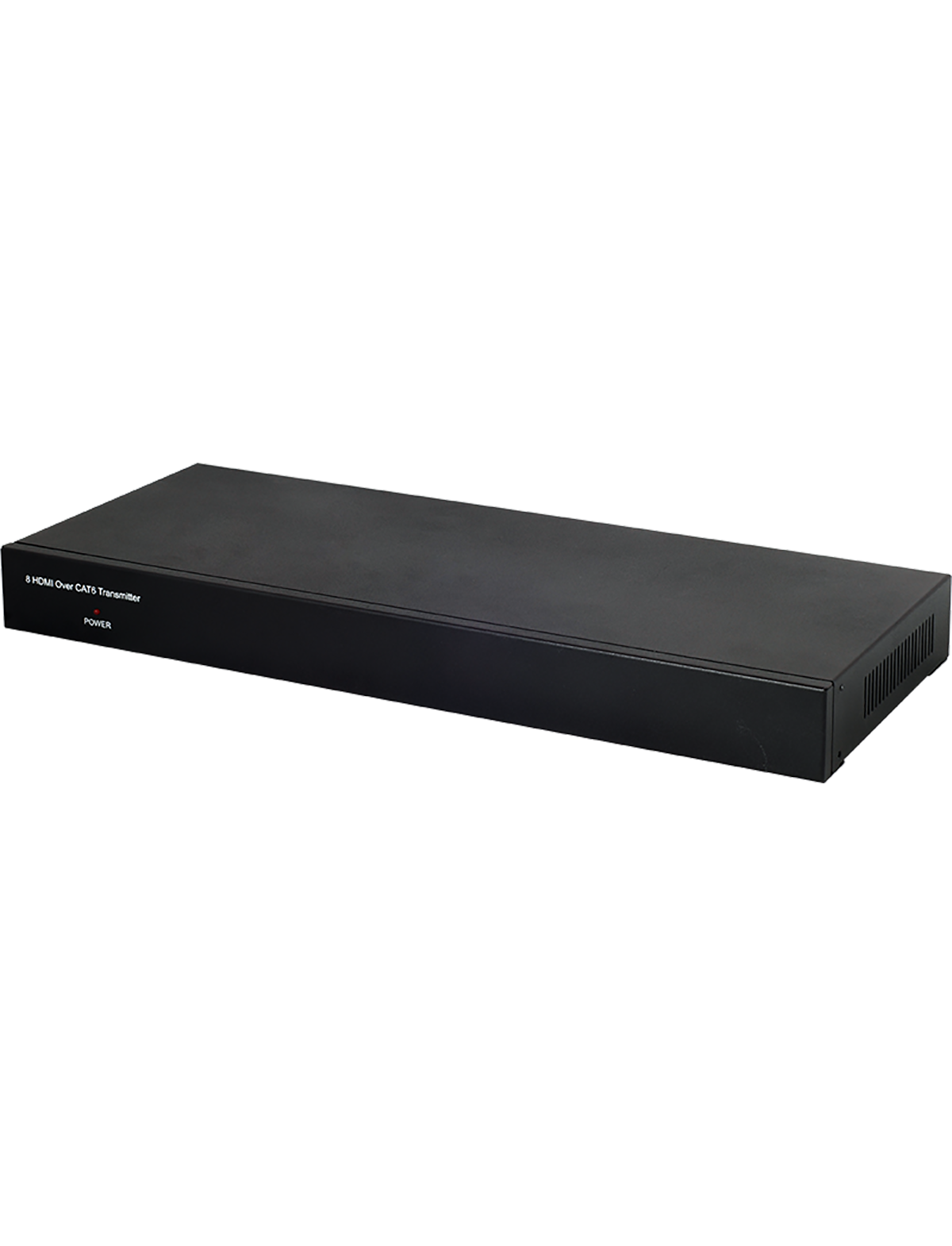

CSI-8H8CVTX 8x8 HDMI over CAT5e/6/7 Point-to-Point Transmitter
Please sign in so that we can notify you about a reply
The 8 HDMI™ over CAT5e/6/7 Point-to-Point Transmitter supports the transmission of uncompressed video (up to 1080p@60 Hz/36-bit) with multi-channel digital audio from up to eight high definition sources to up to eight CAT5e/6/7 outputs. The unit can be used in conjunction with an 8 by 8 HDMI matrix (optional) to provide switching control, allowing the display of any source device on any output display.
Features
- HDMI, HDCP 1.1 and DVI compliant
- Supports HDMI 3D and 4K×2K features
- Support CEC bypass
- Supports PoE (Power over Ethernet) on compatible receivers only
- Supports audio up to 7.1Ch, Dolby TrueHD and DTS-HD Master Audio
- Supports high bit-rate audio up to 192 kHz
- Supports resolutions VGA~WUXGA and 480i~1080p dependent upon the output display’s EDID settings
- Supports uncompressed video up to 1080p@60 Hz/36-bit
- Supports extension up to 100 meters through CAT5e/6/7
- Supports 3D signal display dependent upon the output display's EDID settings
- Supports HDMI input up to 10 meters at 8-bit resolution or 6 meters at 12-bit resolution
- 1U size design
Brand:
Cypress Technology
Specifications
Product Type:
Point-to-Point Transmitter
Encryption:
12bits
Transmission Range:
100m
Special Features:
CEC Bypass, Resolutions VGA~WUXGA and 480i to 1080p Dependent Upon the Output Display’s Edid Settings, 3D Signal Display Dependent Upon the Output Display's Edid Settings, HDMI Input Up to 10m At 8bits Resolution or 6m at 12bits Resolution, 1U Size Desi
Power Rating:
71W
Maximum Operating Temperature:
+40°C
Chassis Material:
Metal
Applications:
Commercial Advertising and Display, Lecture Room Display, Hyper Market Demonstration
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Video Format:
1080pixels, 4K
Frequency Rating:
Up to 192kHz
Inputs and Ports
Input Port Type:
8xHDMI
Output Port Type:
8xCAT5e/6/7
Power
Voltage Rating:
24V
Voltage Rating:
24V
Current Rating:
6.25A
Standards
Standards Met:
US/EU Standards, CE, FCC Compliant, UL Listed
Dimensions
Width:
43.2cm
Depth:
17.9cm
Height:
4.9cm
Weight:
2000g
