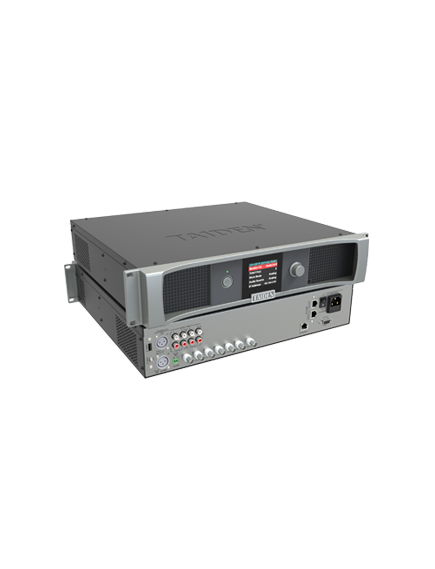

HCS-5100MC/08AD 8 Channels Digital Infrared Transmitter, Dante Interface
Please sign in so that we can notify you about a reply
HCS-5100Plus Series New Generation Digital Infrared Language Distribution System adopts TAIDEN new generation digital infrared processing chip, it conforms to the international standard for digital infrared. This system supports at most 40 distributing channels, making it the world's most advanced IR language distribution system.
Features
- Compliant to IEC 61603-7 and IEC 60914Compatible with any other IR system compliant to IEC 61603-7Capable of distributing a maximum of 4, 8, 16, 32 or 40 audio channelsImmune to interference from HF-driven lightingFlexible configuration of channels and channel quality modesLCD receiver display shows channel number and complete language nameAutomatic synchronization: number of available channels is the same as number of channels in use by the system270° super wide reception angleWorks without errors, even in bright sunlightBypass mode, used for signal distribution to multiple roomsDelay compensation for cable transmissionAudio frequency response: 20 Hz ~ 20 kHz (perfect mode),weighted S/N >85 dBAFreedom of movement within the range of IR power radiatorConference privacy is guaranteed as infrared signals do not pass through opaque walls or ceilingsThe infrared communication frees users from worries about eavesdropping and radio interference inherent to radio wave-based wireless communications
Brand:
Taiden
Specifications
Product Type:
8 Channels Transmitter
Number of Channels:
Maximum Systems per Setup:
8
Sound Field:
Mono
Special Features:
Works Without Errors, Bypass Mode
Power Rating:
25W
Colour:
Black
Applications:
Small, Medium, Large, International Conference Halls, Outdoor Venues
Includes:
Four Feet Tabletop, Rack Mounting
Performance
Impedance Rating:
75Ω
Frequency Rating:
20Hz to 20KHz
Audio Dynamic Range:
90dB
Reference Audio Input Level:
-12dBV to 12dBV (Unbalanced), -6dBV to 18dBV (Balanced)
Inputs and Ports
Interface Type:
2 Female XLR, BNC, USB-H, Dante Interface
Power
Voltage Rating:
100 TO 240V AC
Standards
Standards Met:
IEC 61603-7 Compliant, IEC 60914 Compliant
Dimensions
Length:
48cm
Width:
41.8cm
Height:
8.8cm
Weight:
6.6kg
