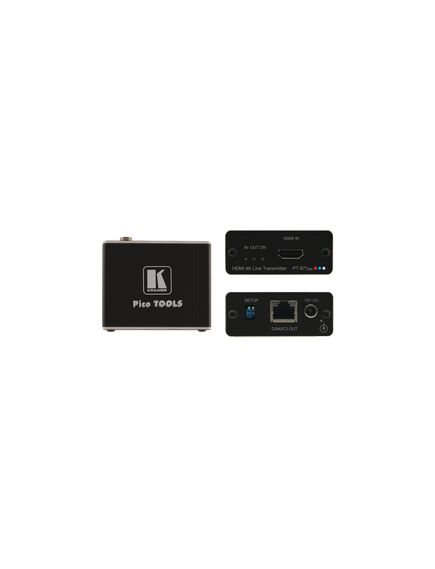

PT-871xr 4K HDR HDMI Compact PoC Transmitter over Long-Reach DGKat 2.0
Please sign in so that we can notify you about a reply
PT−871xr is a high−performance, long−reach DGKat™ 2.0 transmitter for 4K@60Hz (4:4:4) HDR, HDMI, HDCP 2.2 signals and 2−way PoC powering over twisted pair. It converts the HDMI signal into the transmitted DGKat™ 2.0 signal. PT−871xr extends the signal to up to 60m (200ft) at 4K@60Hz (4:4:4) resolution and up to 70m (230ft) at 4K@30Hz (4:4:4) 24bpp resolution over Kramer shielded cables.
Features
- High Performance Extender — Professional DGKat™ 2.0 transmitter for providing long–reach signals and 2–way power over twisted pair copper infrastructures. PT–871xr employs low–level video compression technology that delivers visually lossless performance for 4K@60Hz (4:4:4) HDR signals with near–zero latency.
- HDMI Signal Extension — Supports HDR, HDCP 2.2, deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0.
- EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
- Multi–channel Audio Extension — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
- Cost–effective Maintenance — Status LED indicators for HDMI and DGKat™ 2.0 ports facilitate easy local maintenance and troubleshooting.
- Easy Installation — Single twisted–pair cable for signal and power wiring. Compact PicoTOOLS® fan–less enclosure for device–back mounting, or side–by–side mounting of 4 units in a 1U rack space with the optional, compatible Kramer rack adapter.
Brand:
Kramer
Part number:
50-8038901190
Specifications
Product Type:
Compact PoC Transmitter
Transmission Range:
60m (4K@60Hz), 70m (4K@30Hz)
Sound Field:
Stereo
Special Features:
Compact, Low-Heat Dgkat™ 2.0 Transmitter, HDR and HDCP 2.2 Compliance, Bidirectional PoC Power
Maximum Operating Temperature:
+40°C
Applications:
Long Distance AV Signal Extension for Large Room Connectivity, AV Extension in Meeting Rooms/Boardrooms/Hotels and Corporate Facilities
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
1 Power Adapter with Cord, 1 Bracket Set
Performance
Video Format:
3840x2160pixels@60Hz (4:4:4) 24bpp, 4096x2160pixels@60Hz (4:4:4) 24bpp
Frequency Rating:
60Hz
Latency:
0ms
Inputs and Ports
Input Port Type:
1xHDMI: on an HDMI Female Connector
Output Port Type:
1xDGKat: on an RJ45 Female Connector for extension line
Interface Type:
Indicator: IN, OUT, ON LEDs, Control:Dip-Switch to Define Compression Level
Power
Voltage Rating:
12V DC
Voltage Rating:
12V DC
Current Rating:
2A
Standards
Standards Met:
CE, ISO 9001, ISO 14001, OHSAS 18001
Dimensions
Width:
6.22cm
Depth:
5.1cm
Height:
2.4cm
Weight:
0.1kg
