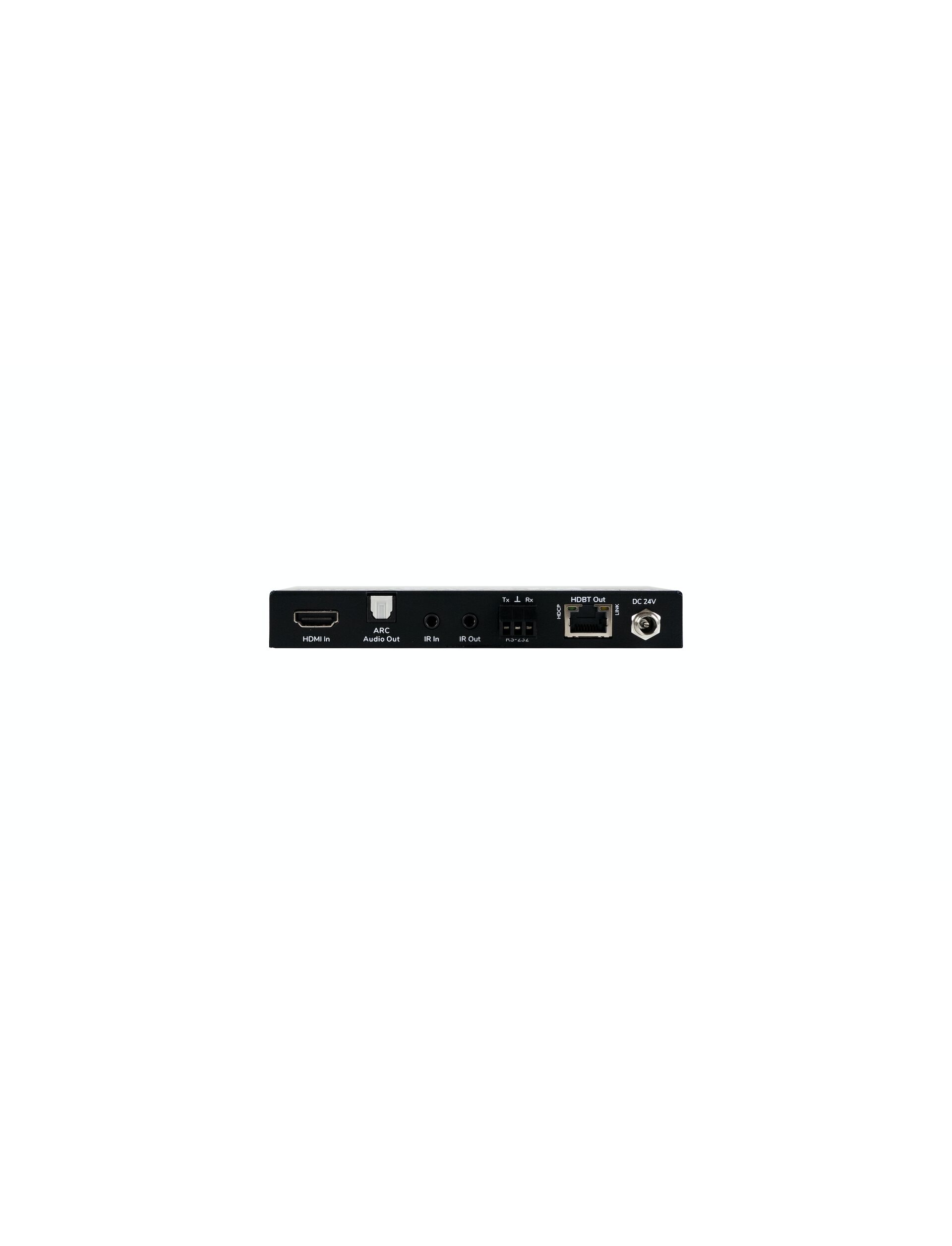

VEO-XTT44 Transmitter, Bidirectional, HDMI Type-A Female (Video)/Toslink (ARC Output)
Please sign in so that we can notify you about a reply
VEO-XTT44 is a professional HDBaseT transmitter for HDMI 2.0 extension of High Dynamic Range (HDR) formats. Bidirectional PoH (Power Over HDBaseT) allows to use only one power supply connected to the Transmitter or the Receiver, according to the installation needs. This product represents the ideal solution for residential and commercial applications that include the latest 4K/UHD and HDR sources and displays.
Features
- Supports HDMI 2.0 and the HDMI video resolution up to 4K@60Hz 4:4:4 HDR.
- HDCP 2.2 and 1.4 supported.
- Extends 4K signals to distances up to 40 meters (131 feet) and 1080P signals to distances up to 70 meters (230 feet) over a single CATx cable.
- Supports video resolution up-scaling, the 1080P input can be automatically upgraded to 4K output.
- SPDIF out on receiver for source audio de-embedding.
- 18Gbps high bandwidth.
- Advanced EDID management: multiple built-in EDID settings or customized EDID can be selected.
- Test pattern provides a built-in 4K/1080P image for troubleshooting.
- Bidirectional IR, RS-232 and 24V PoH.
- Supports ARC.
- Supports CEC pass-through.
- Provides LEDs to indicate the current operating status.
- Firmware upgrade by Micro-USB port.
- ESD protection.
Brand:
Ecler
Specifications
Product Type:
Transmitter
Polar Pattern:
Bidirectional
Encryption:
Up to 24bits
Transmission Range:
35m (CAT5e/6@4K), 40m (CAT6a/7@4K), 60m (CAT5e/6@1080p), 70m (CAT6a/7@1080p)
Special Features:
ESD Protection, Bidirectional IR, RS-232 and 24V PoH
Power Rating:
12W
Maximum Operating Temperature:
55°C
Chassis Color:
Black
Chassis Material:
Metal
Applications:
Retail Shop, Fitness Center, Sport, Bar, Restaurant, Hotel, Residential
Humidity:
10 to 90%
Minimum Operating Temperature:
-5°C
Includes:
2xTX Mounting Ears with 4 Screw, 4xTX Rubber Feet, 3-Pin Terminal Block, Power Adapter (24V DC/1.25A), Quick Guide, Warranty
Performance
Frequency Rating:
20Hz to 20KHz
Inputs and Ports
Input Port Type:
HDMI Type A Female (Video)
Output Port Type:
Toslink (ARC Output)
Interface Type:
HDMI Type A Female (Video), Toslink (ARC Output)
Power
Voltage Rating:
100 to 240V AC, 24V DC (Output)
Current Rating:
1.2A
Dimensions
Width:
14cm
Depth:
8.4cm
Height:
2cm
Weight:
275g
Shipping Weight:
0.6kg
