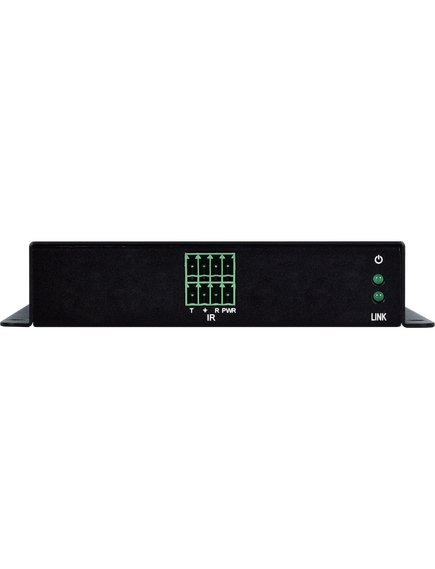

VEX-E1501T UHD+ HDMI over HDBaseT Transmitter
Please sign in so that we can notify you about a reply
This Transmitter is new generation of HDBaseT 3.0 technology, it is a great solution for extending uncompressed HDMI 2.0 4K@60 (4:4:4, 8-bit) video as well as control via a single run of Cat.6a/7 cable over distances of up to 40 meters. Multiple control and data signals may also be transmitted along with the video, including IR and RS-232. This Transmitter is ideal for any scenario which needs uncompressed video like medical equipment, conference room, education and anything you want to extend.
Features
- HDMI 2.0 and DVI 1.0 compatible, HDCP 2.2 and HDCP 1.x compliant HDBaseT 3.0 compliant (Backwards compatible with HDBaseT 2.0/1.0)
- Supports Deep Color input and output up to 12-bit
- Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output
- Supports providing PoH power from Transmitter to Receiver in same HDBaseT port
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Over HDBaseT Transmitter
Encryption:
8bits
Transmission Range:
40m
Number of Channels:
Special Features:
Deep Color Input and Output Up to 12bits, Providing POH Power From Transmitter to Receiver in Same HD base T Port
Power Rating:
12W
Maximum Operating Temperature:
+50°C
Chassis Color:
Black
Chassis Material:
Steel
Applications:
Household Entertainment Sharing and Control, Lecture Halls/Auditoriums and Classroom, Houses of Worship, Conference Rooms and Boardrooms, Hotel Event Spaces
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
Bidirectional IR and RS-232
Performance
Video Format:
4K@60Hz 8bits RGB 4:4:4
Frequency Rating:
30kHz to 50kHz
Maximum Input Sound Pressure Level:
1kHz (0dBFS)
Reference Audio Input Level:
>80dB
Inputs and Ports
Input Port Type:
1xHDMI-Type A
Output Port Type:
1xHDMI-Type A, 1xHDBaseT(RJ45)
Power
Voltage Rating:
24V
Voltage Rating:
24V
Current Rating:
2.7A
Standards
Standards Met:
US/EU Standards, CE, FCC Compliant, UL Listed
Dimensions
Width:
12.8cm
Depth:
11.2cm
Height:
2.5cm
Weight:
400g
