BLX14E-K3E Wireless System for Guitarists, Analog, 606 to 630 MHz
Please sign in so that we can notify you about a reply

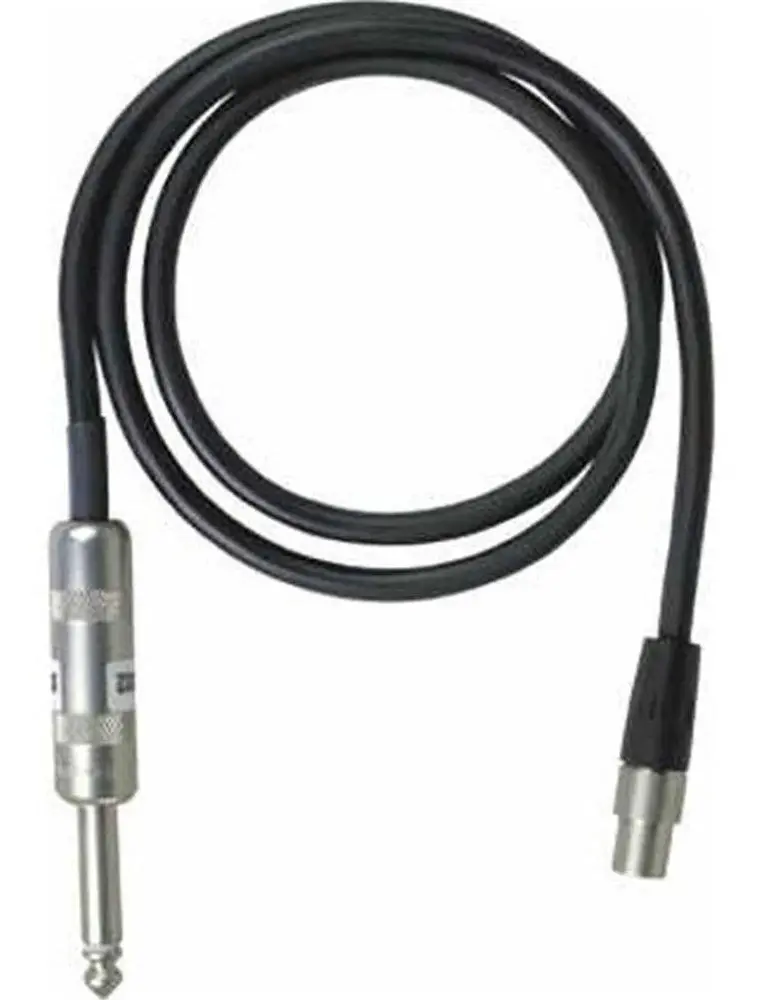

Body-pack instrument wireless system from BLX series that combines professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. It includes one BLX4 single-channel receiver, one BLX1 body-pack transmitter, a guitar cable, a power supply and two AA batteries. The single-channel receiver features simple setup, intuitive controls, and microprocessor-controlled internal antenna diversity. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference. Other features include XLR and 6.3mm output connectors and two-colour audio status indicator LED. The body-pack transmitter features a lightweight, ergonomic design, an easily accessible on/off switch and an adjustable gain control. It quickly and easily matches the receiver’s frequency and offers the TQG connection for use with Shure lavalier, headset, earset and instrument microphones and guitar cables. The transmitter provides up to 14 hours of continuous use with two AA batteries and up to 100m transmission radius. The 0.75m long instrument cable connects the body-pack transmitter to a guitar or other instrument and is terminated with one 4-pin mini connector (TA4F) and a 6.3mm plug. Frequency: 518-542 MHz
Features
- Power and battery status LED
- Adjustable gain control
- Quick & easy frequency matching
- 2 AA batteries (included) provide up to 14 hours of continuous use
- 300 feet (91 m) operating range (line of sight)
Brand:
Shure
Specifications
Product Type:
Wireless System for Guitarists
Polar Pattern:
Cardioid
Mounting Type:
Rack Mount
Receiver Type:
Tabletop
Microphone Polar Pattern:
Cardioid
Antenna Type:
Internal
Transmission Format:
Analog
Number of Transmitter per Band:
12
Number of Channels:
Diversity Type:
Diversity
Series:
BLX
Transmitter Type:
Bodypack
Special Features:
Up to 12 Compatible Systems per Frequency Band (Region Dependent), Microprocessor-Controlled Internal Antenna Diversity, One-Touch QuickScan Frequency Selection Quickly Locates the Best Frequency, 1/4" and XLR Audio Outputs, Two Color Audio Status Indicat
Auto-Level Control:
No
Wireless Technology:
Analog UHF
Wireless Distance Range:
91m
RF Frequency Rating:
606 to 630MHz
Maximum Operating Temperature:
+50°C
Built-In Recorder (Yes/No):
No
Indicator Type:
LED
Material:
ABS
Minimum Operating Temperature:
-18°C
Includes:
Wireless System for Guitarists, 1xWA302 Instrument cable, 1xPS24 Power Supply
Performance
Reference Audio Input Level:
0dB, -16 to +10dBV
Output Power Rating:
10mW
Power
Power Source Type:
Battery, 12 to 18V DC
Battery Type:
2xAA
Battery Life:
14hrs
Dimensions
Length:
11cm
Width:
6.4cm
Height:
2.1cm
Weight:
75g
