BLX14RE/P31-K3E Wireless Rack-mount System with PGA31 Headset Microphone, Analog, 606 to 630 MHz
Please sign in so that we can notify you about a reply

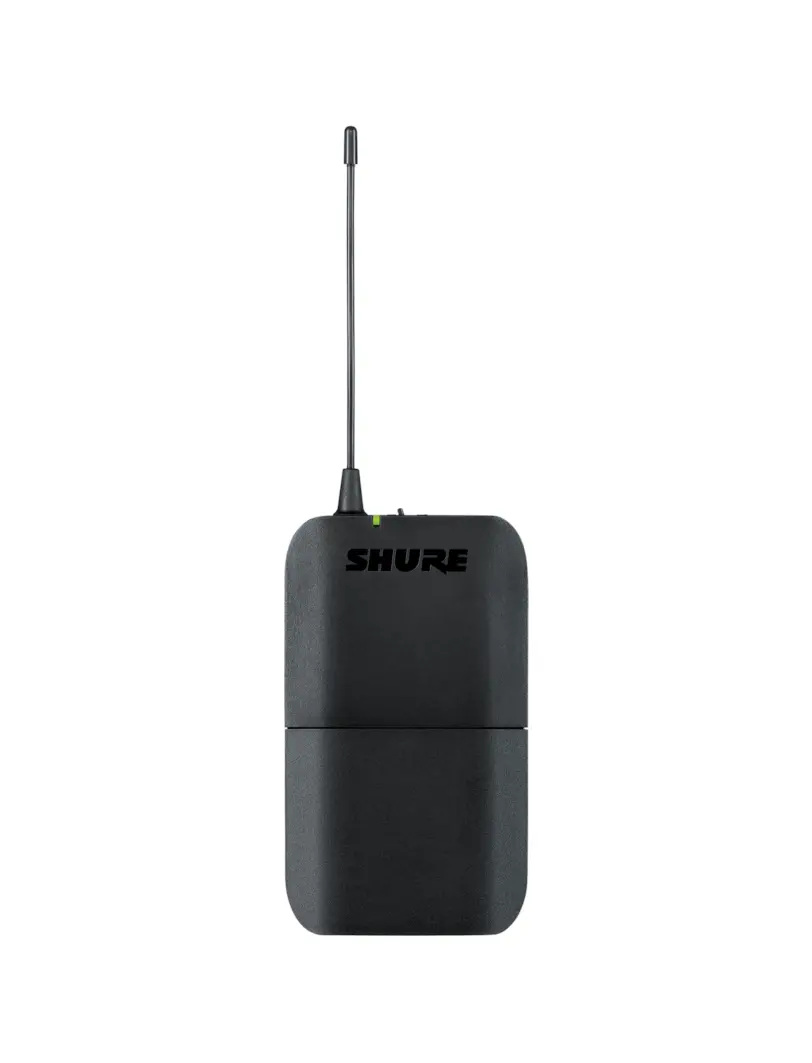

Wireless System designed for presentations, multi-instrumentalists, and active performers. The wireless system offers analogue wireless transmission and includes the BLX1 bodypack transmitter, BLX4RE wireless receiver, and the PGA31 headset microphone. The BLX4RE receiver comes with a rack mount kit and removable antennas for quick and intuitive operation. The BLX system range prides itself on professional sound that is easy and efficient to setup, giving you the freedom to perform with quality. Frequency: 518-542 MHz.
Features
- BLX4, BLX4R and BLX88 Diversity Receivers: Up to 12 compatible systems per frequency band (region dependent)
- Microprocessor-controlled internal antenna diversity
- One-touch QuickScan frequency selection quickly locates the best frequency
- 1/4" and XLR audio outputs
- Two color audio status indicator LED
- Wireless Transmitters: Power and battery status LED
- Adjustable gain control
- Quick & easy frequency matching
- 2 AA batteries (included) provide up to 14 hours of continuous use
- 300 feet (91 m) operating range (line of sight)
Brand:
Shure
Specifications
Product Type:
Wireless Rack-Mount System with PGA31 Headset Microphone
Polar Pattern:
Cardioid
Microphone Type:
Headset
Mounting Type:
Rack Mount
Receiver Type:
Tabletop
Microphone Polar Pattern:
Cardioid
Antenna Type:
External
Transmission Format:
Analog
Number of Transmitter per Band:
12
Diversity Type:
Diversity
Series:
BLX
Transmitter Type:
Bodypack
Special Features:
Up to 12 Compatible Systems per Frequency Band (Region Dependent), Microprocessor-Controlled Internal Antenna Diversity, One-Touch QuickScan Frequency Selection Quickly Locates the Best Frequency, 1/4" and XLR Audio Outputs, Two Color Audio Status Indicat
Wireless Technology:
Analog UHF
Wireless Distance Range:
91m
RF Frequency Rating:
606 to 630MHz
Maximum Operating Temperature:
+50°C
Built-In Recorder (Yes/No):
No
Indicator Type:
LED
Material:
ABS
Minimum Operating Temperature:
-18°C
Includes:

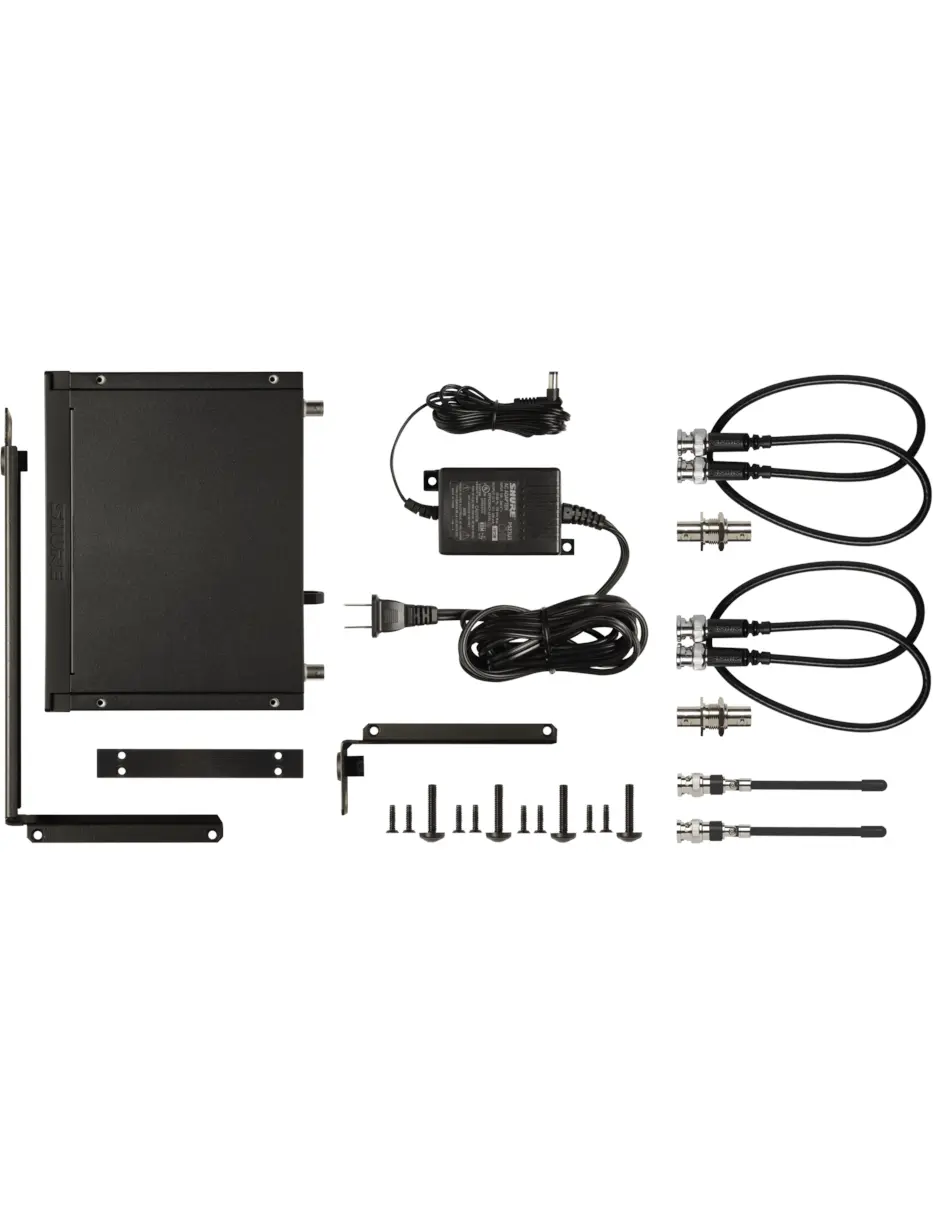

Wireless Rack-mount System, PGA31 Headset Microphone, 1x53A8611 Rack Mount Bracket, 1x53A8612 Long Rack Mount Bracket, 1x53B8443 Link Bracket, 1x90AZ8100 Hardware kit, 1x90F4046 Swivel Adapter, 1x31B1856 Thread Adapter, 2x95A8699 Antenna/BNC 1/4 Wave, 2x9
Performance
Reference Audio Input Level:
0dB, -16 to +10dBV
Output Power Rating:
10mW
Power
Power Source Type:
Battery, 12 to 18V DC
Battery Type:
2xAA
Battery Life:
14hrs
Dimensions
Length:
11cm
Width:
6.4cm
Height:
2.1cm
Weight:
75g
