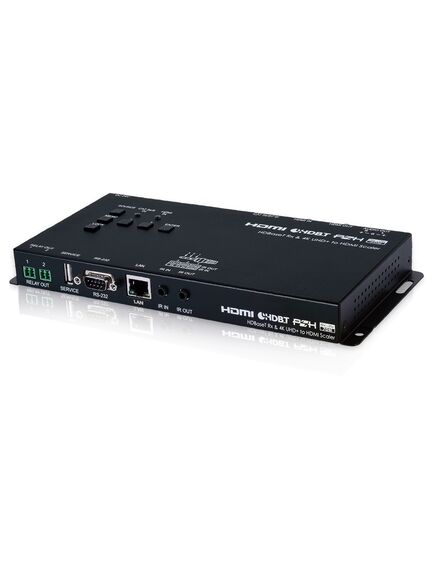

CH-2535RX HDBaseT Rx & 4K UHD+ to HDMI Scaler
Please sign in so that we can notify you about a reply
This new collaboration Transmitter and Receiver system is a convenient turnkey solution for video selection and extension in conference rooms, classrooms and showrooms. These units provide not only AV conversion and extension but also an intelligent and easy way to control devices throughout the entire venue. The three most common input interfaces (HDMI, DisplayPort, and VGA) are supported by the Transmitter, providing the ultimate in source compatibility and flexibility. The HDMI input support resolution/ timing up to a maximum of 4K@60Hz (4:4:4, 8-bit) The HDBaseT input can received over Cat.6/7 cable up to 70m (at 4K@30Hz). The Receiver can scale the HDBaseT video source, or local HDMI input, to match the connected display’s resolution requirements.
Features
- External analog stereo audio embedding/de-embedding support
- Support for automatic input detection and automatic switching on source loss
- Supports controlling a wide variety of conference room equipment such as media players, projectors, projection screens, curtains, etc. via Ethernet, RS-232, IR, or relay (method is device dependent)
- Support for IR code learning as well as IR broadcasting
- Supports Telnet for both client and server functionality
- Control system supports defining up to 16 devices to simplify control and management of controlled devices within the system
- Integrated macro command lists support activating multiple events from a single button press (up to 16 actions per macro)
- Battery backed up RTC (Real Time Clock) to control scheduled macro execution and program event activatio
Brand:
Cypress Technology
Specifications
Product Type:
HDBaseT Rx & 4K to HDMI Scaler
Special Features:
External Analog Stereo Audio Embedding/De-Embedding Support, Support for Automatic Input Detection and Automatic Switching on Source Loss, Supports Controlling a Wide Variety Of Conference Room Equipment Such as Media Players, Projectors, Projection Scree
IR Frequency:
60Hz
Power Rating:
24W
Chassis Color:
Black
Chassis Material:
Steel
Applications:
Transmitter and Receiver System is a Convenient Turnkey Solution for Video Selection and Extension in Conference Rooms, Classroom and Showrooms
Includes:
Transmitter, 1xHDMI/DP/VGA Over HDBaseT Scaling Transmitter, 1xIR Extender Cable, 1xIR Blaster Cable, 2xTerminal Blocks (5-Pin), 1xOperation Manual, Receiver, 1xHDMI Over HDBaseT Scaling, Receiver, 1xIR Extender Cable, 1xIR Blaster Cable, 2xTerminal Block
Performance
Resolution:
HDMI-4096x2160pixels@30Hz (Input), HDBaseT-4096x2160pixels@30Hz (Input), HDMI-4096x2160pixels@30Hz (Output)
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
2.x
Signal Format:
HDMI
Inputs and Ports
Input Port Type:
1xHDMI Type A, 1xHDBaseT(CAT.5e/6/7)
Output Port Type:
1xHDMI-Type a, 1xStereo Audio (Terminal Block)
Power
Voltage Rating:
24V
Voltage Rating:
24V
Current Rating:
2.7A
Standards
Standards Met:
UL Listed, CE, FCC Complaint
Dimensions
Width:
23.15cm
Depth:
10.8cm
Height:
2.5cm
Weight:
430g
