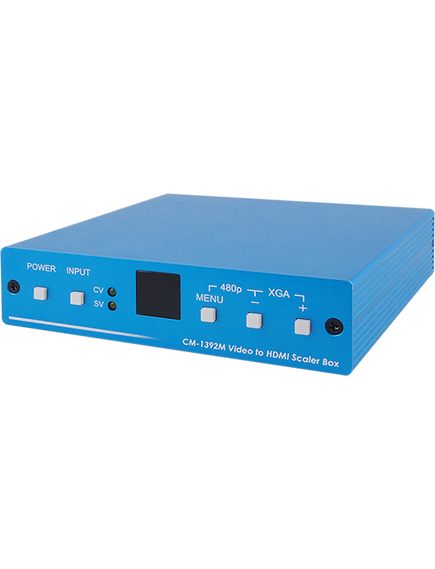

CM-1392M Video and L/R to HDMI Scaler Box
Please sign in so that we can notify you about a reply
The CM-1392M Video to HDMI Scaler Box is designed to scale CVBS and S-Video with R/L audio into HDMI. Supporting PC timings up to WUXGA 1920 x 1200 at 60Hz and HD timings up to 1080p at 60Hz. Supporting the NTSC and PAL TV standards and allowing you to select the specific video timing through the OSD, this device has many features that enhance the quality of your videos.
Features
- Motion adaptive 3-D de-interlacing and 3D Y/C separation with CVBS input
- Automatic 2: 2, 3 : 2 film mode detection & correction
- Automatic NTSC/PAL video format detection and frame rate conversion (from 50Hz to 60Hz)
- Automatic 3D noise reduction
- Supports one dimensional CTI (Chroma Transient Improvement) and LTI (Luminance Transient Improvement) for edge improvement
- OSD menu for picture quality adjustment
- Supports HD timings from 480p@60 Hz to 1080i/p@60 Hz and PC timings from VGA@640x480 to WUXGA@1920x1200
- Two ways to control the CM-1392M, either using an IR remote control or the control panel on the device
Brand:
Cypress Technology
Specifications
Product Type:
Video and L/R to HDMI Scaler Box
Silkscreen Color:
Blue
Special Features:
Automatic 3D Noise Reduction, Supports One Dimensional CTI (Chroma Transient Improvement) and LTI (Luminance Transient Improvement) for Edge Improvement, OSD Menu for Picture Quality Adjustment
Power Rating:
4.1W
Maximum Operating Temperature:
+40°C
Applications:
Showroom Environment, Education Demo, Installation Usage
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
Video and L/R to HDMI Scaler Box, 5V DC Power Supply Adaptor, Operation Manual Remote Control
Performance
Resolution:
HD:(480pixels@60Hz, 576pixels@50Hz Hz, 720pixels@50Hz/60 Hz), (1080i@50Hz /60 Hz, 1080pixels@50Hz/60 Hz) PC:(VGA@640x480), (SVGA@800x600, XGA@1024x768), (WXGA@1360x768, WSXGA@1440x900), SXGA1280x1024, SXGA+@1400x1050, UXGA@1600x1200, WUXGA@192
Signal Format:
HDMI
Inputs and Ports
Input Port Type:
1xComposite, 1xS-Video, 1xR/L
Output Port Type:
1xHDMI
Power
Voltage Rating:
5V
Voltage Rating:
5V
Current Rating:
1A
Standards
Standards Met:
UL Listed, CE, FCC Complaint
Dimensions
Width:
12.5cm
Depth:
12.3cm
Height:
3cm
Weight:
400g
