CP-291N PC/HD to PC/HD Scaler
Please sign in so that we can notify you about a reply
This scaler is designed to cross-convert between a wide range of analog PC (15-pin VGA) and HD (Component YUV) resolutions from VGA/480i up to WUXGA (RB)/1080p. The original signal can be output, unprocessed and unscaled, by using the included bypass output port. This unit has a comprehensive OSD menu which allows the user to select from a variety of output resolutions as well as to adjust the video settings to provide the best picture quality. An ideal example of usage is to place the unit between a standard PC source and an HDTV while changing the output resolution and format to match the native requirements of the display.
Features
- Supports a wide range of PC (15-pin VGA) resolutions from VGA ~WUXGA
- (RB) and HD (Component YUV) resolutions from 480i~1080p over both input and output
- Component YUV input and output is supported with the use of a 15-pin to 3-RCA adapter
- Included bypass output port allows viewing the original unscaled source
- Output picture adjustments include: contrast, brightness, hue, saturation, sharpness, RGB (color tone) level and aspect ratio

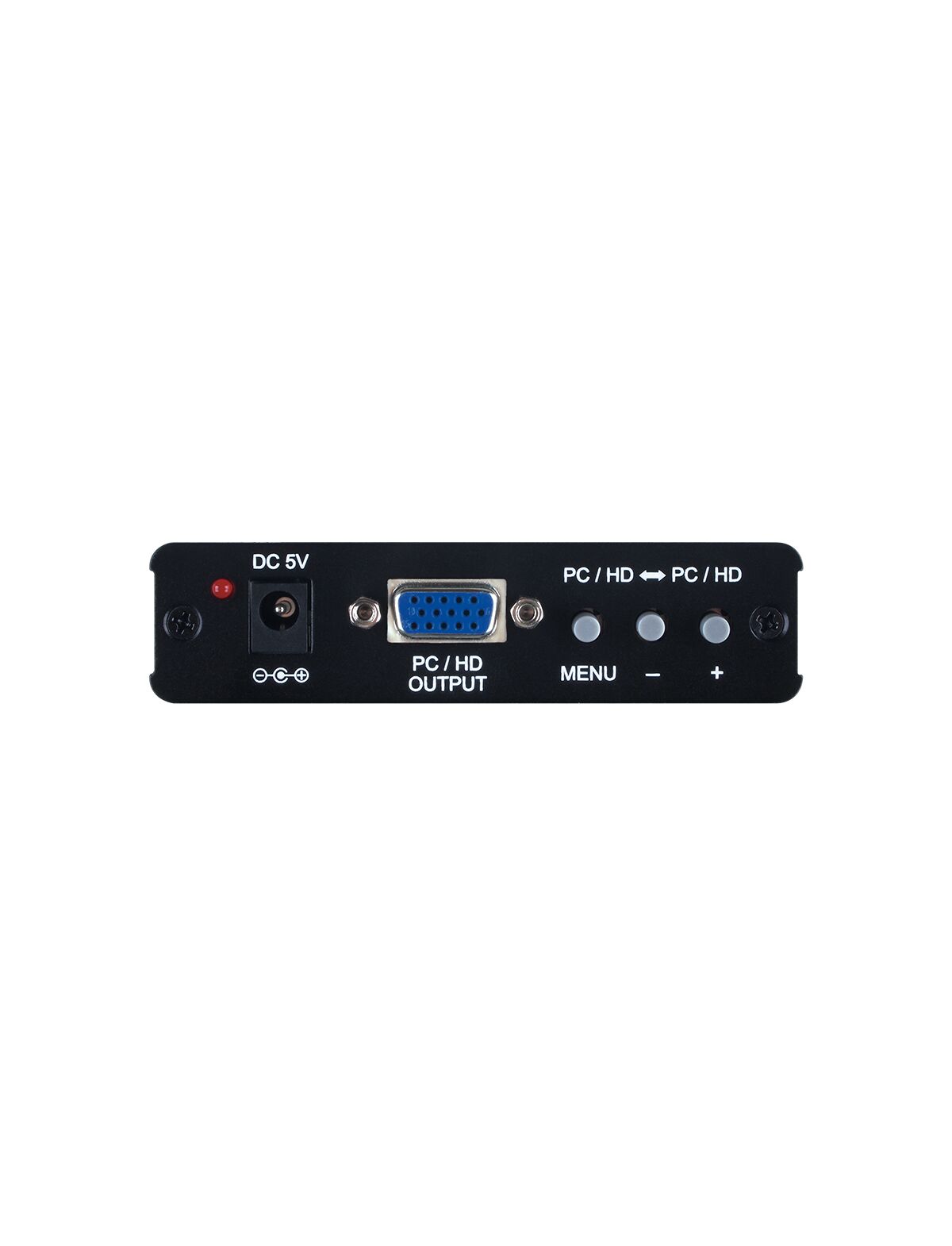

- Controllable via front-panel buttons with OSD
Brand:
Cypress Technology
Specifications
Product Type:
PC/HD to PC/HD Scaler
Silkscreen Color:
Black
Special Features:
Included Bypass Output Port Allows Viewing the Original Unscaled Source, Output Picture Adjustments Include: Contrast, Brightness, Hue, Saturation, Sharpness, RGB (Color Tone) Level and Aspect Ratio, Controllable Via Front-Panel Button with OSD
Power Rating:
5.3W
Maximum Operating Temperature:
+40°C
Chassis Material:
Metal
Applications:
Supports PC/HD&DVI/HDMI to HDMI Output
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xPC/HD to PC/HD Scaler, 1x15-Pin to 15-Pin D-sub Cable, 1x15-Pin to 3-RCA Cable, 1x5V/2.6A DC Power Adaptor, 1xOperation Manual
Performance
Resolution:
VGA:1920x1200@60HzRB(Input), VGA:1920x1200@60HzRB (Output)
Signal Format:
HDTV
Inputs and Ports
Input Port Type:
1xVGA (HD-15)
Output Port Type:
2 VGA (HD-15)
Power
Voltage Rating:
5V
Voltage Rating:
5V
Current Rating:
2.6A
ESD Protection Rating:
±12kV (Air-Gap Discharge), ±8kV (Contact Discharge)
Standards
Standards Met:
UL Listed, CE, FCC Complaint
Dimensions
Width:
16cm
Depth:
2.5cm
Height:
2.5cm
Weight:
342g
