CPLUS-V2PEL UHD+ HDMI to Dual HDMI Scaler
Please sign in so that we can notify you about a reply
This HDMI 4K UHD Scaler with Test Patterns and Signal Event Automation is designed to upscale 1080p signals into 4K UHD (18Gbps) or downscale 4K UHD (18Gbps) signals into 1080p with synchronized digital audio output. A friendly and simple interface design allows the user to control the unit while viewing the OSD directly on the HDMI outputs. The input signal can be output to both HDMI outputs simultaneously with a different resolution on each or the unit can generate a test pattern at a preferred video resolution for easy on-site display testing and validation. Additional functionality such as EDID and HDCP management, and basic signal event automation (via RS-232 or CEC) is also provided. This UHD Scaler is the best tool to use with your HD and UHD signals. This unit can be controlled easily by use of the front panel controls (with OSD) or by RS-232.
Features
- HDMI signal bypass on both outputs or upscales 1080p signals to 4K on output B and downscales 4K signals to 1080p on output A
- Supports 4K HDR at 24/30Hz (YUV 4:4:4) and 50/60Hz (YUV 4:2:0) with up to 12- bit color
- Supports 16-bit Deep Color up to 1080p@60Hz Supports pass-through of many audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
- Integrated EDID and HDCP management
- Basic signal event automation (via RS-232 or CEC)
- Test pattern generation at selected resolutions for on-site display testing
- Controllable via front panel with OSD menu, and RS-232
Brand:
Cypress Technology
Specifications
Product Type:
UHD+ HDMI to Dual HDMI Scaler
Special Features:
Integrated EDID and HDCP Management, Test Pattern Generation At Selected Resolutions for On-Site Display Testing
Power Rating:
4.3W
Maximum Operating Temperature:
+40°C
Chassis Color:
Black
Chassis Material:
Metal
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xHDMI to Dual HDMI Scaler, 1x5V/2.6A DC Power Adapter, 2x3-Pin Terminal Block to 9-Pin D-sub Adapter Cable, 1xShockproof Feet (Set of 4), 1xOperation Manual
Performance
Resolution:
HDMI:4096x2160pixels@60Hz (Input), HDMI:4096x2160pixels@60Hz (Output)
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
2.2
Signal Format:
HDMI

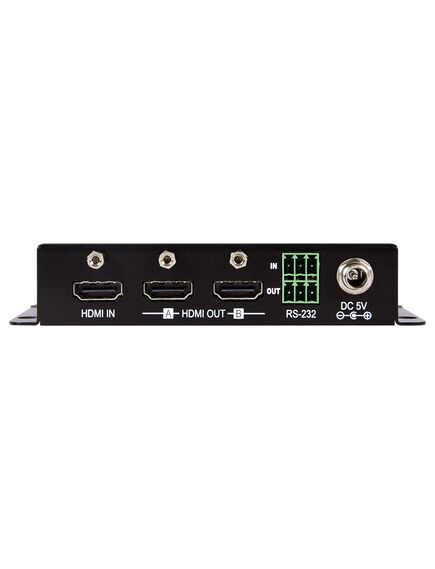

Inputs and Ports
Input Port Type:
1xHDMI
Output Port Type:
2xHDMI
Power
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Current Rating:
2.6A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Standards
Standards Met:
UL Listed, CE, FCC Complaint
Dimensions
Width:
12.8cm
Depth:
7.5cm
Height:
2.5cm
Weight:
272g
