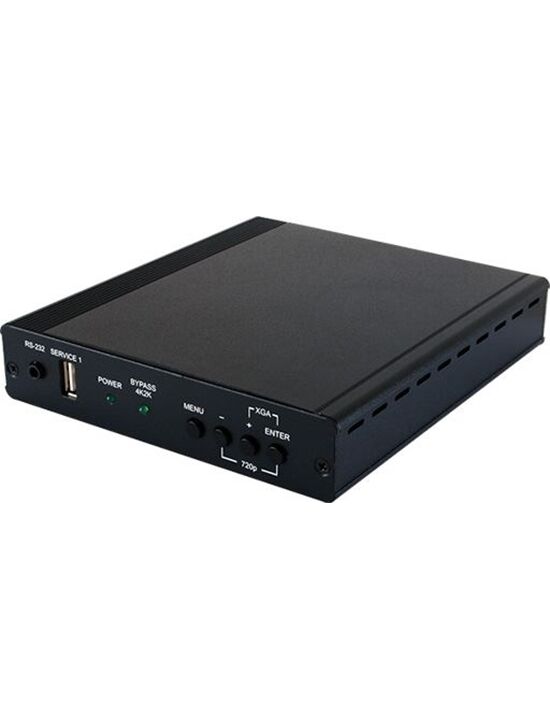

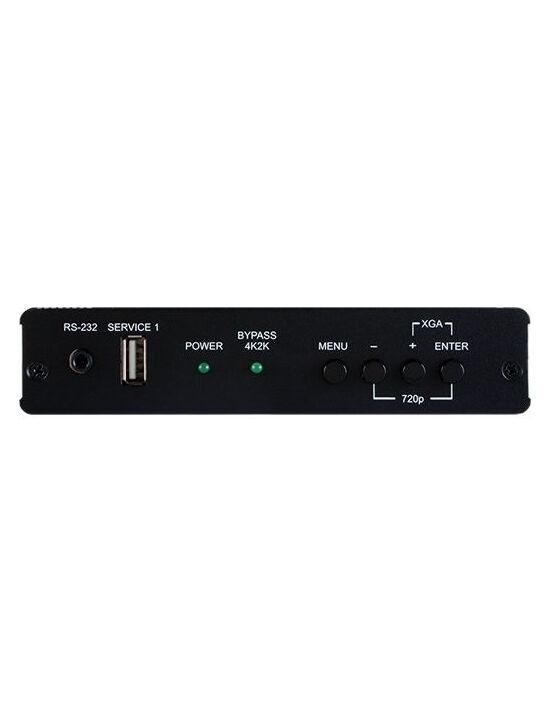

CPRO-12ES 4K HDMI Scaler with 3D Support
Please sign in so that we can notify you about a reply
CPRO-12ES – HDMI signal scaler up to 4Kx2K resolutions with 3D support. Scales the input signal and transmits it to two synchronized outputs. Thus, the device allows you to transmit signals from a source with resolutions up to 4Kx2K both to displays of lower resolution and to corresponding ones, in addition, it can be used to check whether a source or display supports an ultra-high definition signal.
- HDMI (4K2K) and DVI compatible, HDCP compliant
- Downscaling 4K2K signals to 1080p signals
- Synchronized HDMI outputs
- Independent HDMI pass-through output for video output of any resolution without modification
- On-screen display (OSD) for system configuration and displaying information about current settings
- The device is simple and easy to use
Brand:
Cypress Technology
Specifications
Product Type:
4K HDMI to HDMI scaler
Silkscreen Color:
Black
Special Features:
Supports HDMI 4K2K Signal Bypass, Supports HDMI Signal Bypass, Simultaneous HDMI Output, Friendly and Simple to Use
Power Rating:
7.7W
Maximum Operating Temperature:
+40°C
Chassis Material:
Aluminium
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Resolution:
1080pixels@50Hz/60 (Upscaled TV Res.), WUXGA@60Hz (RB) (Downscaled TV Res.)
Signal Format:
HDMI
Inputs and Ports

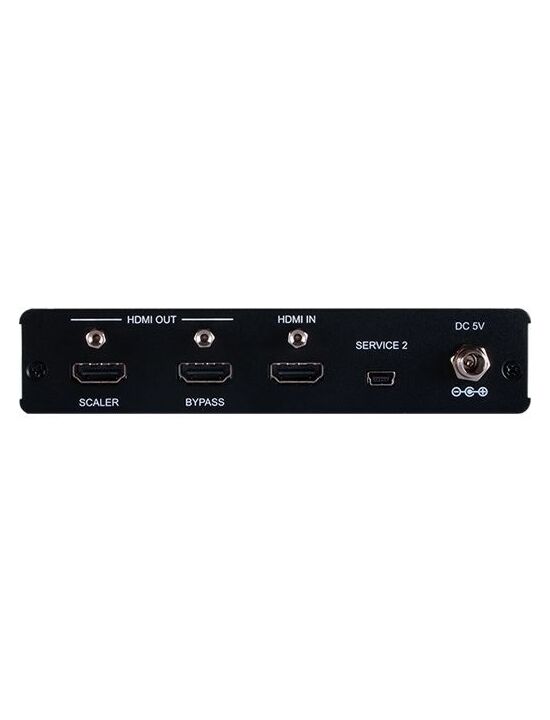

Input Port Type:
1xHDMI, 2xUSB, 1xRS-232
Output Port Type:
2xHDMI
Power
Voltage Rating:
5V
Voltage Rating:
5V
Current Rating:
2.6A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Standards
Standards Met:
UL Listed, CE, FCC Complaint
Dimensions
Width:
14.5cm
Depth:
16.05cm
Height:
3cm
Weight:
488g
