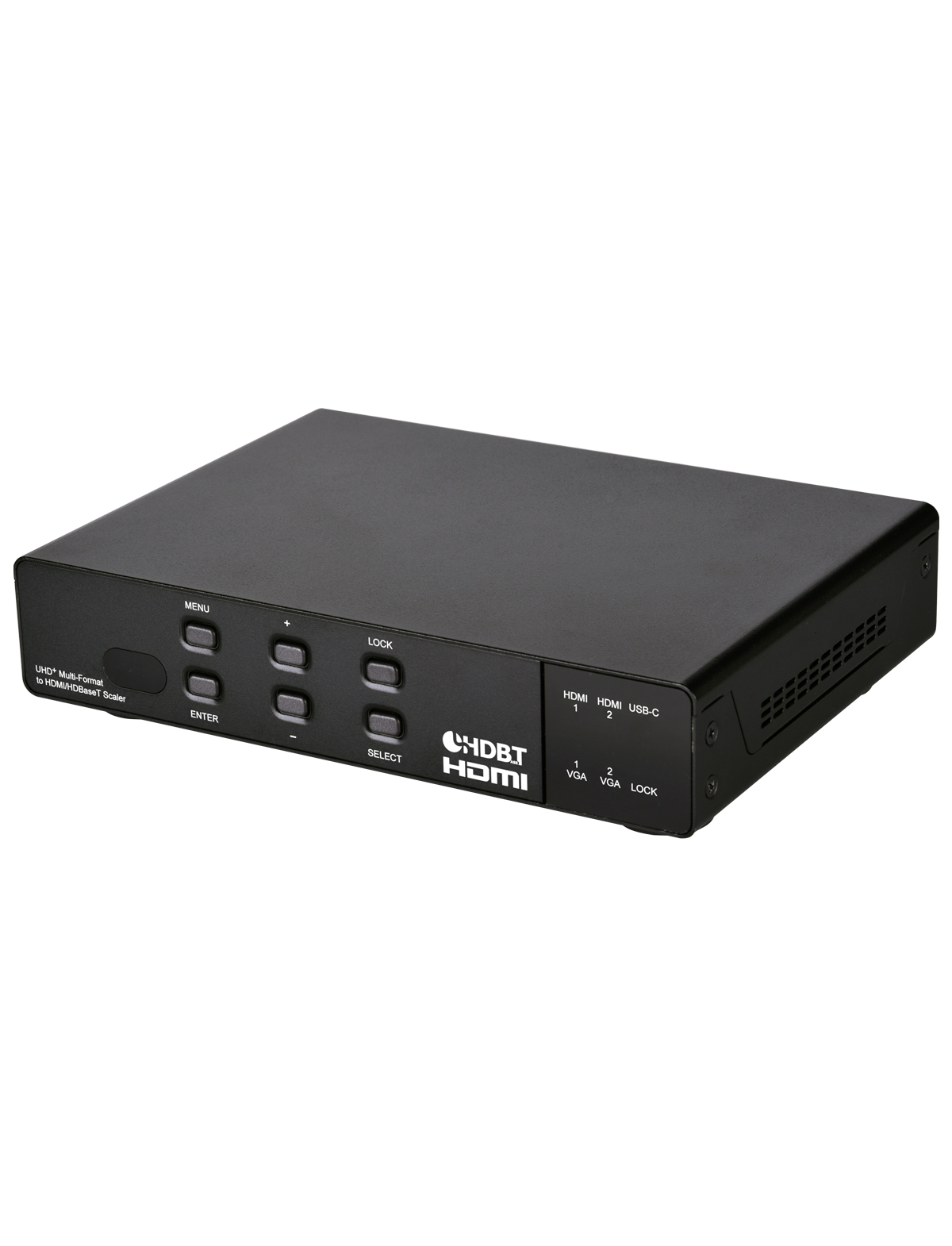

CSC-109TX UHD Multi-Format to HDMI/HDBaseT Scaler
Please sign in so that we can notify you about a reply
This multi-format to HDMI/HDBaseT scaler provides switching between five inputs including HDMI, VGA, and USB-C. Any selected source will be scaled to your preferred resolution for output over HDMI and HDBaseT.This unit contains an audio DSP engine with auto-mixer and auto-gain functionality, allowing for the microphone source to be mixed with the audio from one of the video sources with independent volume control over the microphone input.This unit is an ideal solution for presentations in classrooms and conference rooms. Controllable via front panel controls with an OSD, WebGUI, Telnet, RS- 232, IR, and Trigger controls.
Features
- HDBaseT can reach distances up to 100m/328ft at 4K@60 4:2:0 when using Cat.6a/7
- Supports pass-through of LPCM 2.0 digital audio
- Supports audio embedding, de-embedding Microphone input supports 48V phantom power (optional)
- Supports HDCP and EDID management
Brand:
Cypress Technology
Specifications
Product Type:
UHD Multi-Format to HDMI/HDBaseT Scaler
Special Features:
Supports HDCP and EDID Management
IR Frequency:
30 to 50kHz
Power Rating:
102W
Maximum Operating Temperature:
+40°C
Chassis Color:
Black
Chassis Material:
Steel
Applications:
Analog and Digital Source Integration, Upscaling Standard Definition Sources for High-Definition Displays, Conference Centres, Lecture Halls, Schools and Universities
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xHDMI/USB-C/VGA to HDMI/HDBaseT Scaler, 1x24V/5A DC Power Adapter, 1xRemote Control (CR-192), 1xIR Blaster Cable, 1xIR Extender Cable, 1x3.5mm to 9-Pin D-sub Male Cable, 1x6-Pin Terminal Block, 1xShockproof Feet (Set of 4), 1xOperation Manual
Performance
Resolution:
HDMI:4096x2160pixels@60Hz YUV 4:4:4 (Input), USB-C:4096x2160pixels@60Hz YUV 4:4:4(Input), VGA:1920x1200pixels@60HzRB(Input), HDMI:4096x2160pixels@60Hz YUV 4:4:4 (Input), HDBaseT:(4096x2160pixels@60Hz YUV 4:2:0)
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
1.x, 2.2
Video Bandwidth:
18Gbps (HDMI), 21.6Gbps (USB-C), 10.2Gbps (HDBaseT)
Signal Format:
HDMI
Baud Rate:
115200bps (Bypass), 19200bps (Control)
Inputs and Ports
Input Port Type:
2xHDMI-Type A, 1xUSB- Type C, 2xVGA (HD-15), 3x3.5mm Stereo Audio, 1xMic in (6.5mm)
Output Port Type:
1xHDMI-Type A, 1xHDBaseT (RJ45), 1xLine Out (3.5mm)
Power
Voltage Rating:
24V
Voltage Rating:
24V
Current Rating:
5A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
21.9cm
Depth:
15.4cm
Height:
4.3cm
Weight:
1308g
