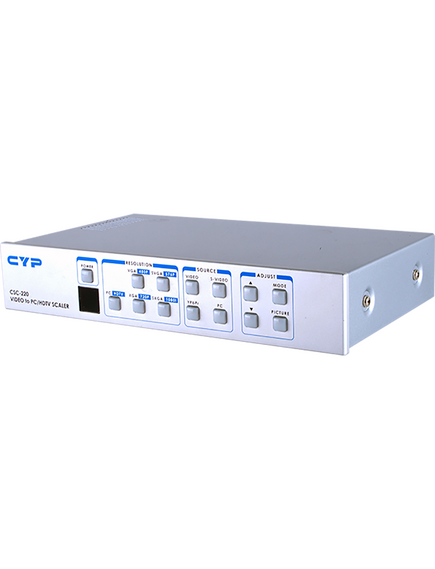

CSC-220 Video to PC/HDTV Scaler
Please sign in so that we can notify you about a reply
The CSC-220 is designed to convert Composite, S-Video, YCbCr/YPbPr and PC signals to a variety of computer and HDTV resolutions. It handles video input from TV systems NTSC, PAL and SECAM TV standards. Cypress CSC-220 has many great features to enhance performance and is ideal for use in professional large screen presentation.
Features
- Professional universal scaler/deinterlacer for CV, SV, YCbCr/YPbPr and PC inputs
- All inputs can be scaled up to output resolutions: - PC output : 640x480, 800x600 (SVGA), 1024x768 (XGA), 1280x102 4(SXGA) - HDTV output: 480p, 576p, 720p, 1080i
- Automatically accommodates input video systems of NTSC 3.58, PAL and SECAM
- High performance adaptive 3D Comb filter Y/C separator
- Per-pixel motion compensated deinterlacing algorithms to produce artifact-free progressive scan video signal
- Built in Adaptive film mode 3:2 pull-down provides clear and crisp deinterlacing of video originating from 24 fps film,such as DVD movies
- Frame rate conversion from 50 Hz up to 60 Hz (PAL), or 60 Hz up to 60 Hz (NTSC)
- Vertical temporal filter (VT) removes jaggy and other deinterlacing artifacts from normal video
- OSD menu with adjustable control on Color, Detail, Brightness, Contrast and Hue(NTSC)
- Built-in DCTI/DLTI circuit for color/luminance transient improvement
- Last memory for all adjustments
- RS-232 interface allows remote control from PC
Brand:
Cypress Technology
Specifications
Product Type:
Video to PC/HDTV Scaler
Special Features:
High Performance Adaptive 3D Comb Filter Y/C Separator
Includes:
Video Scaler Unit, DC adaptor, VGA Cable-HD 15 to HD 15x1, HD-15 D-Sub to YPbPr 3-RCA Cable, 1BNC-1BNC video cablex1, S-Video Input Cable, YCbCr 3-RCA- to 3-RCA cablex1, User Manual, Remote Control, Sample Windows Control Panel Software(RS-232 version onl
Performance
Resolution:
PC:VGA(640x480), SVGA:(800x600), XGA(1024x768), SXGA(1280x1024), HDTV:1280x720pixels (720p), 1920x1080i (1080i) 852x480p(480p), 852x576p(576p)
Signal Format:
HDTV
Inputs and Ports
Input Port Type:
3xBNC [1xYCbCr Component / YPbPr Component], 1xBNC [1xComposite], 1xMini-DIN-4 [1xS-video], 1xHD-15 [1xPC RGBHV], 1xDE-9 [1xRS-232 Data]
Output Port Type:
1xHD-15 [1xPC/HD RGBHV / YPbPr Component]
Power
Voltage Rating:
12V
Voltage Rating:
12V
Current Rating:
1A
Dimensions
Width:
20.4cm
Depth:
15.4cm
Height:
4.6cm
Weight:
1000g
