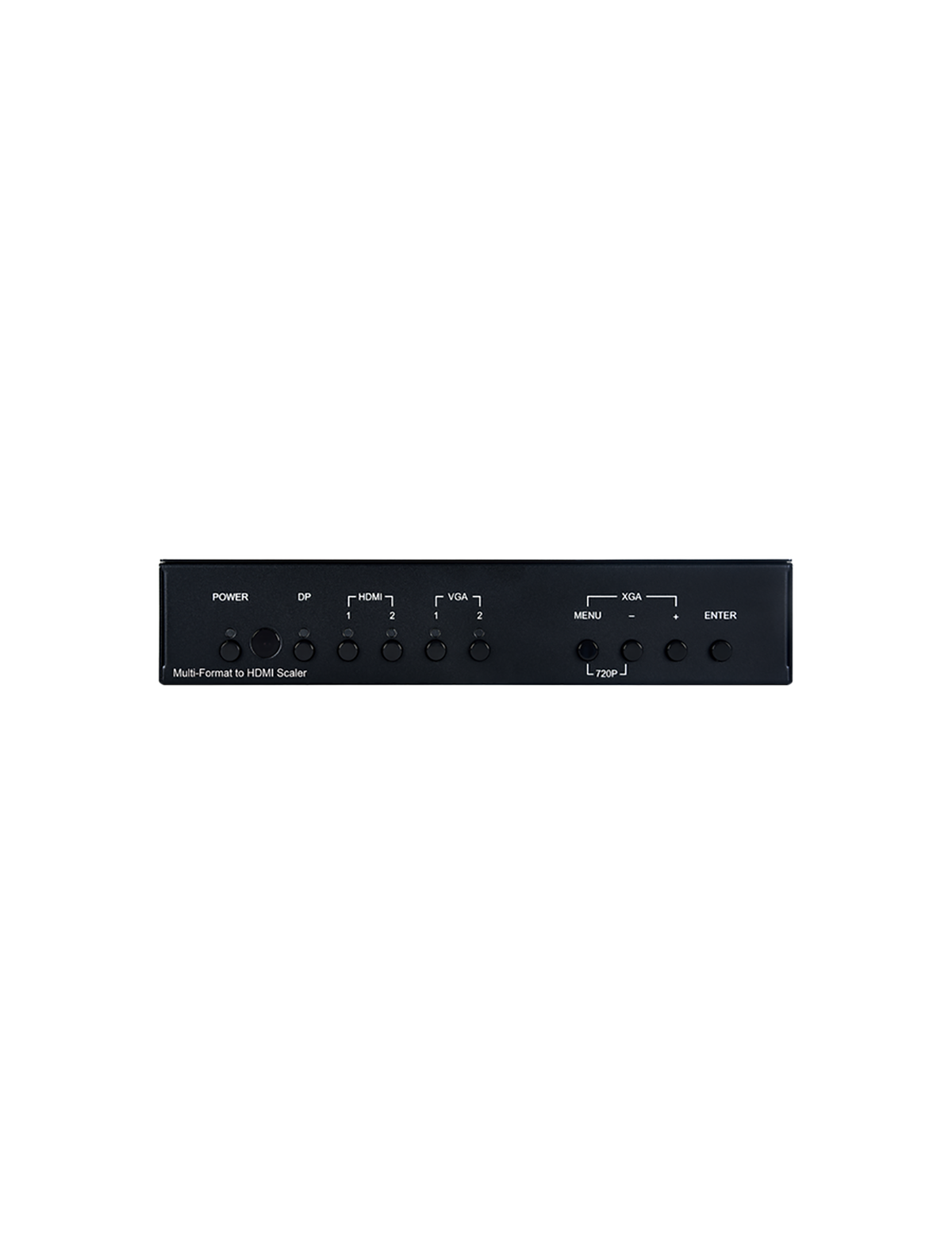

CSC-5501 HDMI/DP/VGA to Dual HDMI Scaler
Please sign in so that we can notify you about a reply
This Multi-Format Scaler has DisplayPort, HDMI and PC (VGA) inputs which can be freely selected for output at a scaled resolution of the user’s choosing over the mirrored HDMI outputs. This unit also includes breakout analog and digital audio outputs to provide additional playback flexibility. Support for HDMI output resolutions up to 1080p/WUXGA (RB) and Analog to Digital Conversion (ADC) functionality combine to allow for a wide range of AV signals to be displayed on the connected HDMI displays.
Features
- HDMI 1.3, DisplayPort 1.1, and DVI 1.0 compatible
- HDCP 1.x compliant
- Multiple video and audio inputs: 1 DisplayPort, 2 HDMI, 2 VGA, and 3 stereo audio
- Mirrored HDMI outputs
- Supports input and output resolutions up to 1080p/WUXGA (RB)
- Frame rate conversion support
- Analog to digital (ADC) and digital to analog (DAC) audio conversion, insertion and extraction
- Analog stereo and digital coaxial breakout audio outputs
- Supports pass-through of LPCM 2.0 audio
- Audio DSP with gain control for routing audio and controlling background audio levels
- Comprehensive EDID and HDCP management
- Remote control provides discrete input source selection
- Controllable via front panel controls with OSD, RS-232, Telnet, WebGUI, and IR remote
Brand:
Cypress Technology
Specifications
Product Type:
HDMI/DP/VGA to Dual HDMI Scaler
Special Features:
Frame Rate Conversion Support, Comprehensive EDID and HDCP Management
Power Rating:
6W
Maximum Operating Temperature:
+40°C
Chassis Color:
Black
Chassis Material:
Steel
Applications:
Analog and Digital Source Integration, Upscaling Standard Definition Sources for High-Definition Displays, Conference Centres, Lecture Halls, Schools and Universities
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
Transmitter, 1xHDMI Over HDBaseT Scaling Transmitter, 1xIR Blaster Cable, 1xIR Extender Cable, 1xTerminal Block (3-Pin), 1xTerminal Block (5-Pin), 1xPower Cord, 1x24V/2.7A DC Power Adaptor, 1xOperation Manual, Receiver, 1xHDMI Over HDBaseT Scaling Receive
Performance
Video Bandwidth:
4.95Gbps
Signal Format:
HDMI
Baud Rate:
115200bps
Inputs and Ports
Input Port Type:
1xDisplay Port, 2xHDMI, 2xVGA (HD-15), 3xAnalog Stereo (3.5mm)
Output Port Type:
2xHDMI, 1xDigital S/PDIF (RCA), 2xAnalog Stereo (3.5mm)
Power
Voltage Rating:
24V
Voltage Rating:
24V
Current Rating:
2.7A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Standards
Standards Met:
UL Listed, CE, FCC Complaint
Dimensions
Width:
21.5cm
Depth:
10.8cm
Height:
4.2cm
Weight:
1066g
