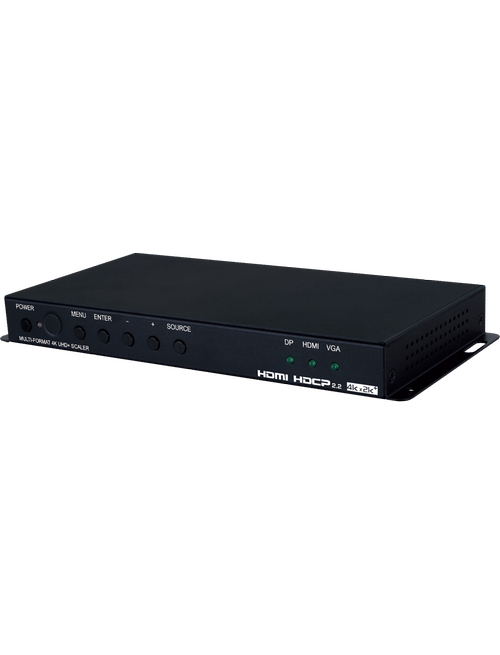

CSC-6010D 4K60 (4:4:4) 3x1 HDMI/DP/VGA to HDMI Scaler with Audio Insertion & Extraction
Please sign in so that we can notify you about a reply
This multi-format scaler features the three most popular input interfaces utilized on source devices: HDMI, DisplayPort and VGA. This unit is an ideal solution for use in conference rooms and showrooms and for any customer who has a requirement to match disparate input sources to the native resolution of a display. The maximum output resolution supported is 4K@60Hz YUV 4:4:4 for both HDMI and DisplayPort inputs.
Features
- Multiple input formats including HDMI, DisplayPort and VGA
- HDMI 2.0, HDCP 2.2, HDCP 1.4 and DVI 1.0 compliant
- Supports video timings up to 4K@60Hz YUV 4:4:4 over the HDMI and DisplayPort inputs and over the HDMI output
- Auto source detection: Automatically switches to the most recently connected input
- Wide range of aspect ratio settings including: full screen, 16:9, 16:10 and 4:3
- Direct adjustment of contrast, brightness, hue and saturation
- Audio mute function
- Analog stereo audio output with volume control
- EDID management support
- Comprehensive user interface options including: Front panel with OSD, WebGUI, telnet, RS-232, and IR remote
- Firmware can be easily updated in the field via USB
Brand:
Cypress Technology
Specifications
Product Type:
4K UHD Multi-Format Scaler
Silkscreen Color:
Black
Special Features:
Direct Adjustment Of Contrast, Brightness, Hue and Saturation, Audio Mute Function, Analog Stereo Audio Output with Volume Control, EDID Management Support
Power Rating:
11.2W
Chassis Material:
Metal
Applications:
Entertainment Rooms and Home Theatres, Showrooms & Demo Rooms, Classroom & Lecture Hall Presentations, Conference Rooms, Public Commercial Display
Includes:
1xHDMI to HDMI Scaler, 1x5V/2.6A DC Power Adaptor, 1xOperation Manual
Performance
Resolution:
HDMI & DP:4K@60Hz ( input and output), VGA:1680x1050@60Hz (input)
HDMI Compliance Type:
2.0
HDCP Compliance Type:
1.4, 2.2
Signal Format:
HDMI
Baud Rate:
115200bps
Inputs and Ports
Input Port Type:
1xHDMI, 1xVGA, 1xDisplay Port, 1xAudio In
Output Port Type:
1xHDMI Out, 1xAudio Out
Power
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Dimensions
Length:
23.1cm
Width:
10.8cm, 11.7cm
Height:
2.5cm
