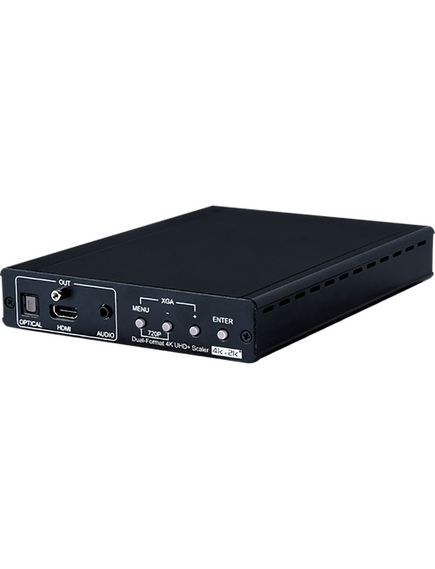

CSC-6011 4K60 (4:4:4) 2x1 HDMI/VGA to HDMI Scaler with Audio Insertion & Extraction
Please sign in so that we can notify you about a reply
This is a compact yet versatile 4K UHD HDMI and PC/HD to HDMI Scaler. It accepts a wide range of resolutions from 480i up to 1080p/WUXGA for PC/HD and up to 4K@60Hz (4:4:4) for HDMI with the ability to scale the output to a selectable resolution up to 4K@60Hz (4:4:4) with simultaneous de-embedded, digital optical and analog audio output. 3-D motion adaptive de-interlacing and frame rate conversion is supported as well.
Features
- DMI 2.0 with 4K@60Hz (4:2:0 and 4:4:4) support, DVI 1.0 compliant
- HDCP 2.2 compliant
- Supports PC input resolutions from VGA~WUXGA and HD input resolutions from 480i~1080p@60Hz
- Supports HDMI input resolutions from 480i~4K@60Hz (4:4:4, 8-bit)
- Supports HDMI output resolutions from 640×480@60Hz up to 4096×2160@60Hz (4:4:4, 8-bit)
- Analog YUV input is supported with the use of a 15-pin to 3-RCA adapter
- 50/60Hz frame rate conversion
- 3-D motion adaptive de-interlacing and 3:2/2:2 pull-down detection and recovery
- Can automatically detect and output the preferred resolution and refresh rate reported by the EDID of the connected display (NATIVE output mode)
- EDID management options including multiple pre-defined EDIDs and EDID pass-through
- Comprehensive output picture adjustments (contrast, brightness, hue, saturation, sharpness, RGB (color tone) level and aspect ratio size)
- Supports LPCM 2.0 digital/analog audio input and LPCM 2.0 digital/analog output. The audio source is selected via the OSD and output simultaneously over the HDMI, optical and phone jack connections
- Supports firmware updates via USB
Brand:
Cypress Technology
Specifications
Product Type:
4K UHD+ HDMI and PC/HD to HDMI Scaler
Silkscreen Color:
Black
Special Features:
EDID Management Options Including Multiple Pre-Defined EDIDs and EDID Pass-Through, Supports Firmware Updates Via USB
Power Rating:
8.47W
Maximum Operating Temperature:
+40°C
Chassis Material:
Aluminium
Applications:
Home Theatre with 4K@60Hz HDMI Media Player and VGA Home Pc with Output to a 4K@60Hz Tv, Boardroom Presenter Connection Point with Auto-Switching to New Presenters and Output to a Large 4K Display, Lecture Hall, Showroom or Classroom Signal Display, Displ
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xHDMI to HDMI Scaler Quad-Set, 1x5V/6A DC Power Adaptor, 1xPower Cord, 1xRack Mount Ears, Set of 2), 1xOperation Manual
Performance
Resolution:
408i@60Hz-4K@60Hz (4:4:4, 8bits), VGA@60Hz-WUXGA@60Hz (RB)
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
2.2
Video Bandwidth:
18Gbps
Signal Format:
HDMI
Inputs and Ports
Input Port Type:
1xHDMI, 1xVGA [15-Pin D-sub], 1xOptical Audio, 1x3.5mm Audio
Output Port Type:

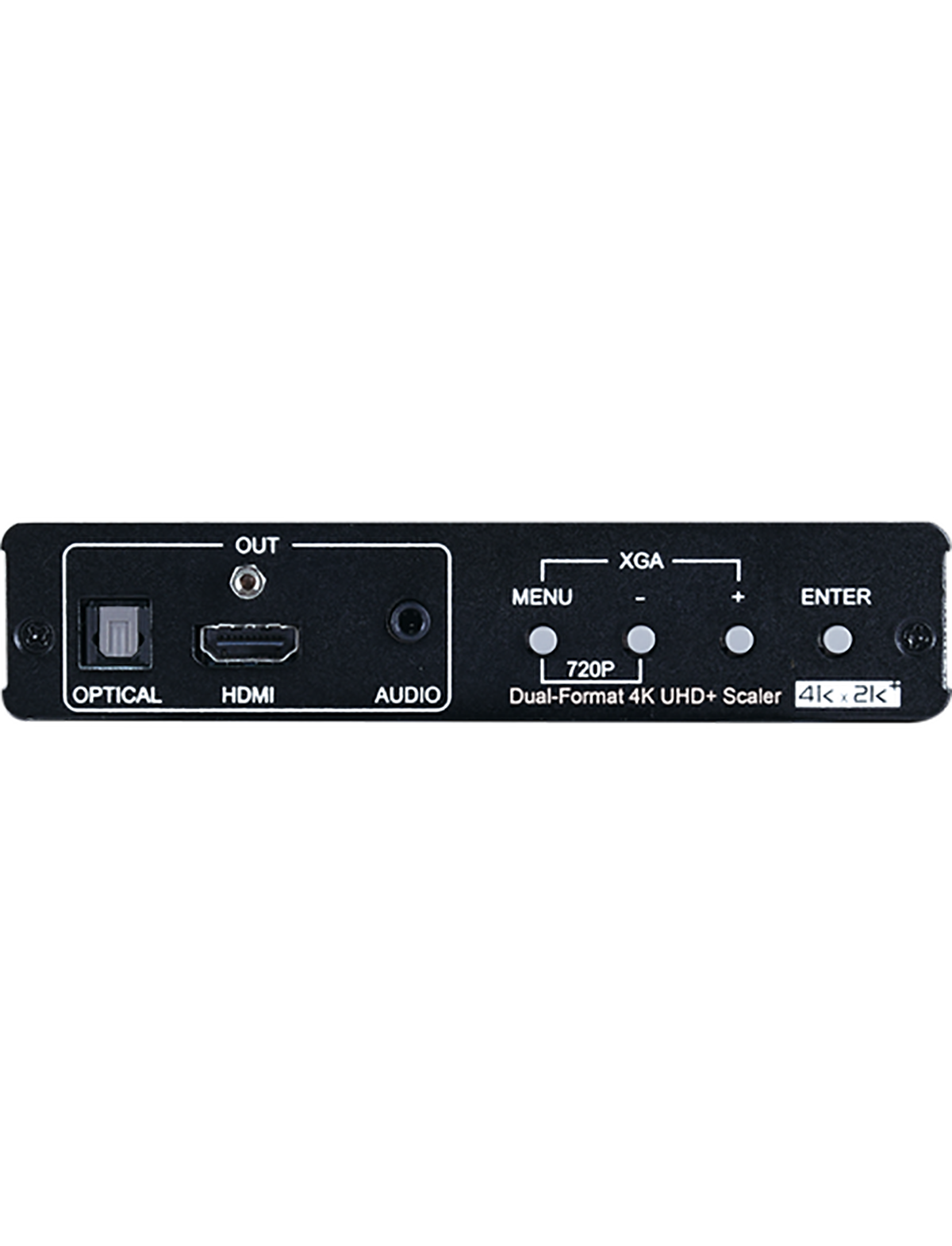

1xHDMI, 1xOptical Audio, 1x3.5mm Audio
Power
Voltage Rating:
5V
Voltage Rating:
5V
Current Rating:
2.6A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Standards
Standards Met:
UL Listed, CE, FCC Complaint
Dimensions
Width:
14.5cm
Depth:
19.2cm
Height:
3cm
Weight:
578g
