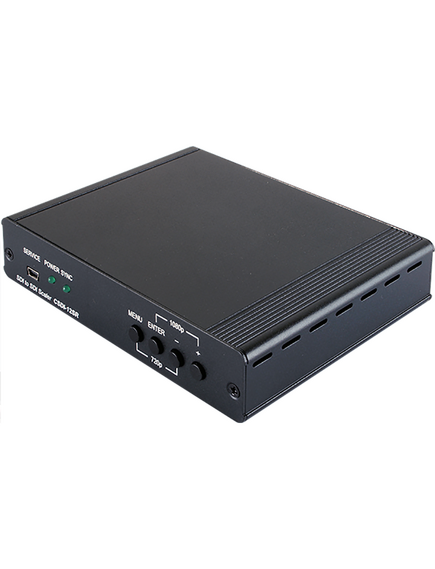

CSDI-12SR 1x2 SDI to SDI Scaler
Please sign in so that we can notify you about a reply
The 1 by 2 3G-SDI Scaler allows an SD-SDI, HD-SDI and 3G-SDI signal to be scaled and split to two simultaneous SDI outputs, providing bandwidth up to 2.970 Gbps for 3G-SDI video support allowing the user to distribute and extend their SDI signal. The On-screen Display (OSD) menu can be controlled from the front panel, allowing quick and easy adjustment of all settings.
Features
- Splits an SDI input to two SDI outputs with scaler function
- Supports scaling of any SDI input to any SDI output to SDI standards
- Supports SD-SDI, HD-SDI and 3G-SDI input/output signals with autodetection
- Supports SDI bitrates of 2.970Gbps & 2.970/1.001Gbps, 1.485Gbps & 1.485/1.001Gbps, and 270Mbps
- Supports SDI input/output modes/standards:
- - SD-SDI: SMPTE 259M-C@270Mbps
- - HD-SDI: SMPTE 292M@1.485Gbps & 1.485/1.001Gbps
- 3G-SDI: SMPTE 424M/425M-A@2.970Gbps & 2.970/1.001Gbps
- Supports up to 8 audio channels at 48 kHz
- Supports SDI input/output distances up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
Brand:
Cypress Technology
Specifications
Product Type:
1 by 2 SDI to SDI Scaler
Silkscreen Color:
Black
Special Features:
Supports Scaling Of any SDI Input to any SDI Output to SDI standards, Supports SD-SDI, HD-SDI and 3G-SDI Input/Output Signals with Autodetection
Maximum Operating Temperature:
+40°C
Chassis Material:
Aluminium
Applications:
Distribute and Extend SDI Signal to SDI Displays, Scale any SDI Input Timing to any SDI Output Timing Follow By SDI Standard
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1 by 2 SDI to SDI Scaler Box, 5V/2.6A DC Power Adaptor, Operation Manual
Performance
Video Bandwidth:
148.5MHz
Signal Format:
SD-SDI
Inputs and Ports
Input Port Type:
1xBNC (SDI/HD/3G-SDI)
Output Port Type:
2xBNC (SDI/HD/3G-SDI)
Power
Voltage Rating:
5V
Voltage Rating:
5V
Current Rating:
2.6A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Standards
Standards Met:
UL Listed, CE, FCC Complaint
Dimensions
Width:
14.5cm
Depth:
11.2cm
Height:
3cm
Weight:
354g
