BCLS-33 CAT 6A F/UTP LSZH Bulk Cable-500m
Please sign in so that we can notify you about a reply

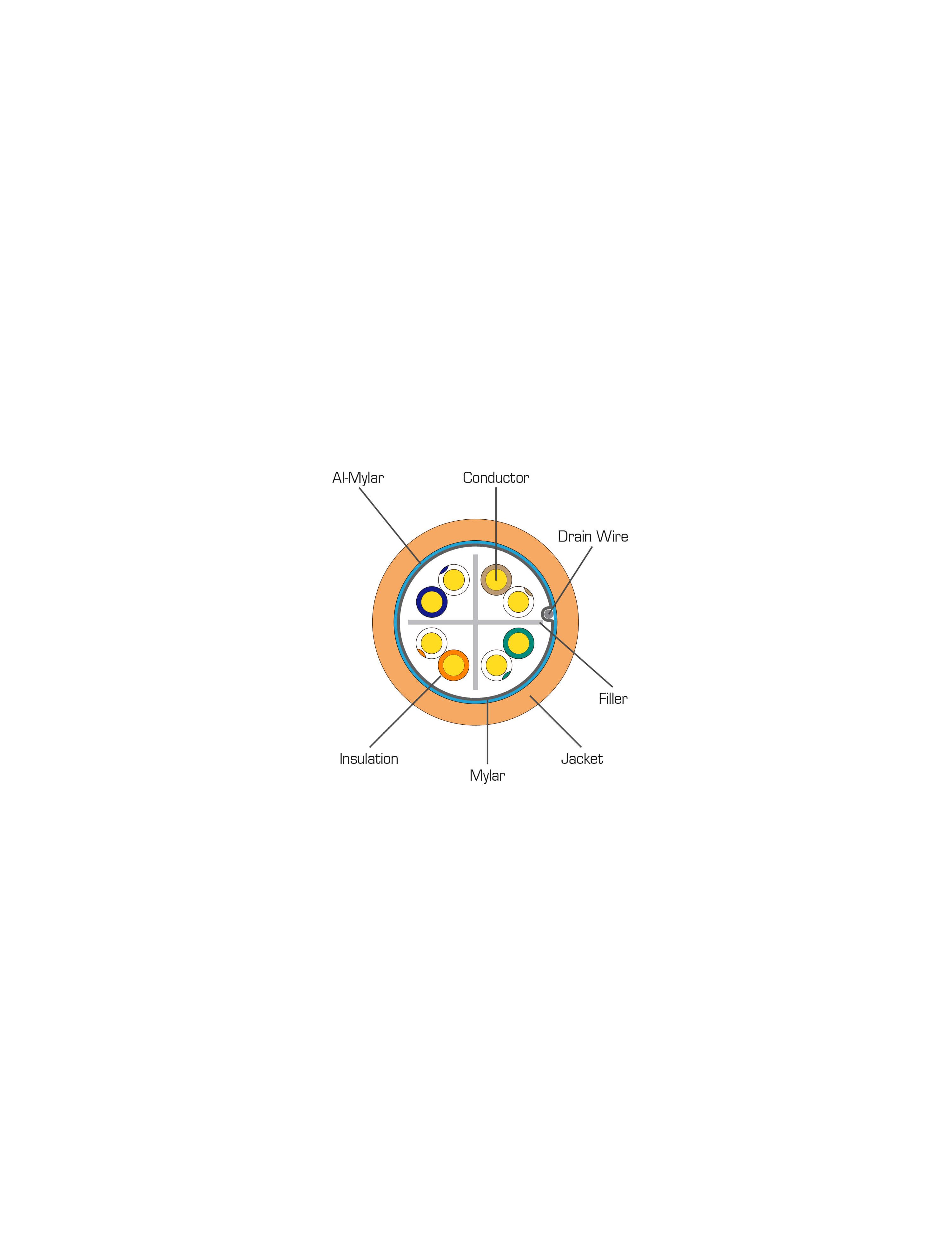

Kramer's BCLS−33 is a high−performance CAT 6A F/UTP cable designed for IT, LAN and Ethernet installations. It is constructed with 23AWG solid bare copper conductors with a cross filler and overall metal foil screen with a drain wire. It is enclosed in an LSZH jacket with sequential markings every meter and packed on a fumigated plywood reel. BCLS−33 cable exceeds CAT 6A specifications to provide additional performance and bandwidth beyond the basic standard.
Features
- High-Performance Transmission.
- High-Quality Safety Properties.
- Sweep Frequency up to 650MHz.
- Length -Available in length of 500m (1640ft).
Brand:
Kramer
Part number:
99-46310500
Specifications
Product Type:
CAT 6A F/UTP LSZH Bulk Cable
Wire Gauge:
23AWG
Conductor Type:
Solid
Conductor Material:
Bare Copper
Outer Diameter:
0.76cm
Shielding Material:
Aluminium Mylar
Colour:
Orange
Insulation Material:
Polyolefin
Resistant Properties:
Low Smoke, Halogen Free
Performance
Impedance Rating:
100Ω
Capacitance:
≤5.6nF/100m
Power
Voltage Rating:
300V
Standards
Standards Met:
ANSI/TIA-568-C.2 (2009), ISO/IEC 11801 (Edition 2.2), IEC 61156-5 (Edition 2.0), EN 50288-6-1:2013, EN 50173-12011, IEC 60332-1-2, IEC 61034-1 / 61034-2, IEC 60754-2
Dimensions
Length:
500m
